Snapper L1428E (1695572) - 28" Snowthrower, 13.5 HP, Two Stage, Large Frame, Series 2009 Auger Drive Group - 28" Model Ricambi

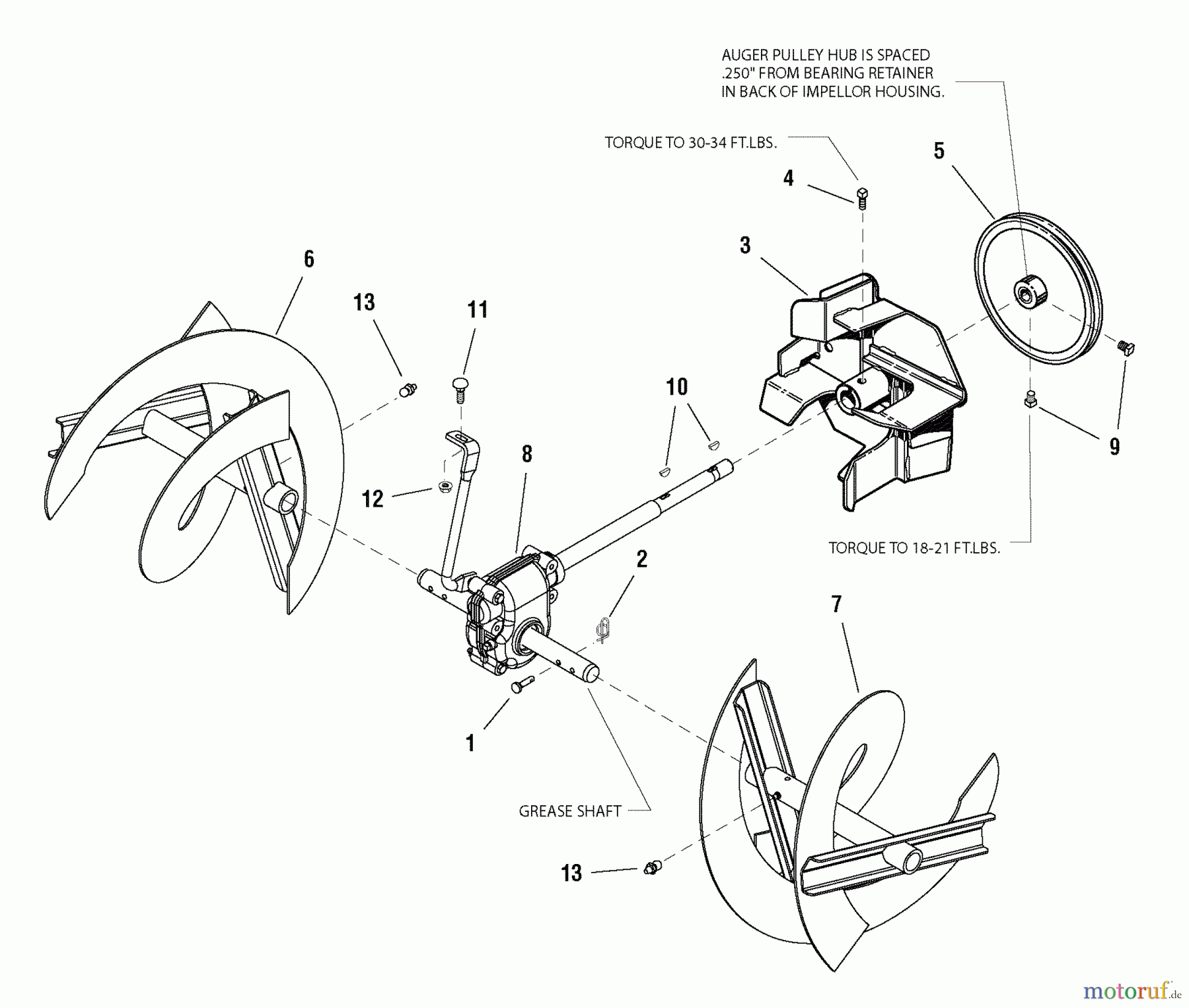

Auger Drive Group - 28" Model L1428E (1695572) - Snapper 28" Snowthrower, 13.5 HP, Two Stage, Large Frame, Series 2009

Snapper Schneefräsen L1428E (1695572) - Snapper 28
PosizioneArticolo numeroDescrizione
1 BS1668344SMSHEAR PIN
2 BS7023590SM
3 BS1612187BMYPIMPELLER
4 BS1960474SMSET SCREW
5 BS1732185SMAUGER PULLEY ASSY
6 BS1734676ASMAUGER ASSY - RH 28"
7 BS1734675BMYPWELD, AUGER ASSY, 28"
8 BS1732303SMGEAR CASE
9 BS1928721SMSET SCREW
10 BS2818312SMKEY, WOODRUFF
11 BS703185RHSSNB
12 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
13 BS703907ZERK, FITTING, 1/4
