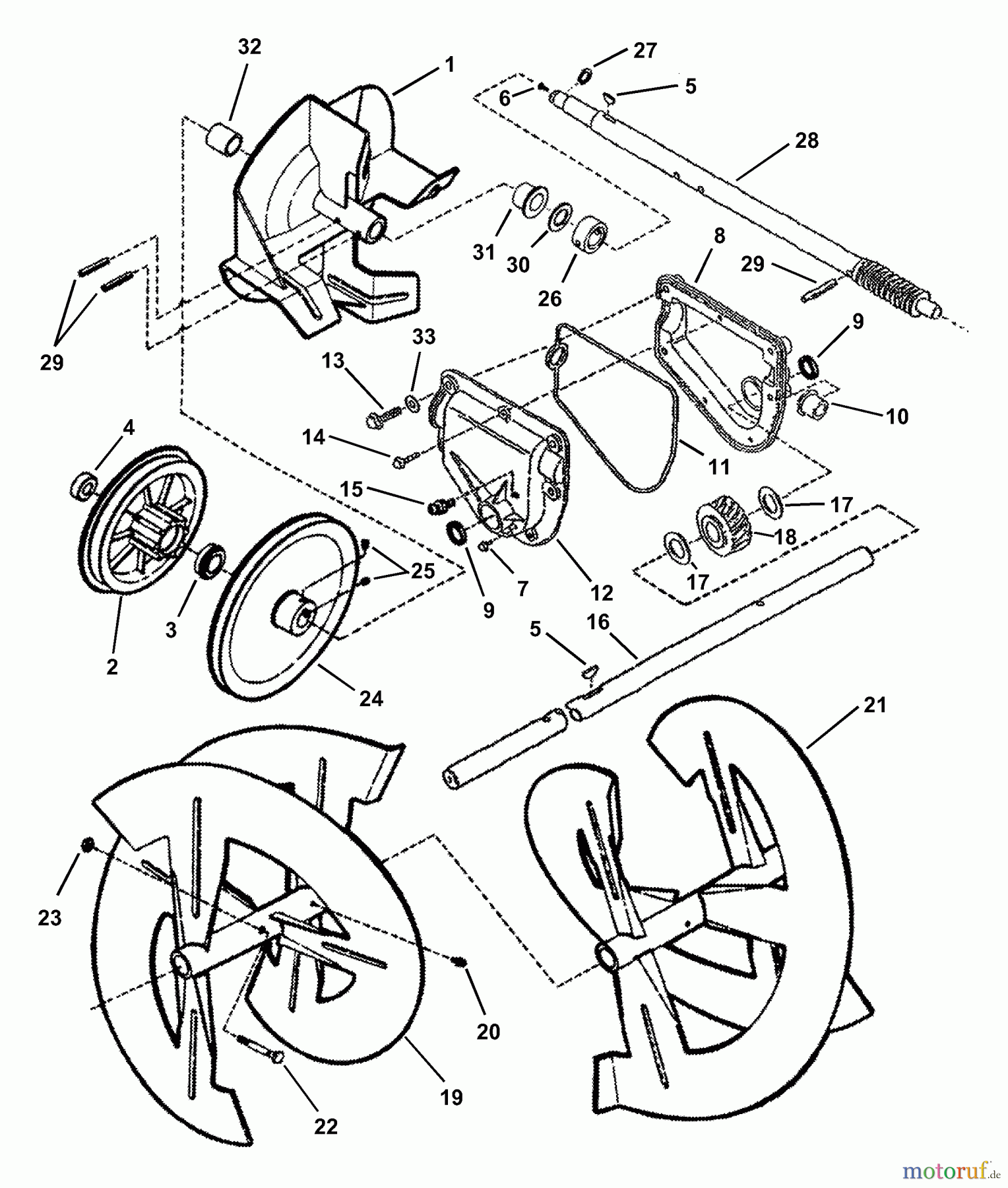

Snapper I7244 - 24" Snowthrower, 7 HP, Two Stage, Intermediate Frame, Series 4 Augers, Impellar, Gear Case, Shaft Ricambi

Augers, Impellar, Gear Case, Shaft I7244 - Snapper 24" Snowthrower, 7 HP, Two Stage, Intermediate Frame, Series 4

Snapper Schneefräsen I7244 - Snapper 24
PosizioneArticolo numeroDescrizione
1 BS7063159YPIMPELLER KIT
2 BS7051566YP(S) DRIVE PLATE ASSY.
3 BS7010756YPKUGELLAGER
4 BS7014295YP(S) BEARING
5 BS7010211YPFEDERKEIL, #9
6 BS7090929YPTHMS, Sternantrieb, 1/4C X1/2
7 BS704060SCREW,HEX, #10-24X.5
8 BS7019779YPCASE, GEAR
9 BS7015136YPDICHTUNG, OEL
10 BS7015230YPBUCHSE
11 BS7015137YPO-RING
12 BS7019780YPCOVER, GEAR CASE
13 BS7090290SMHWST, 1/4C X3/4 ZP
14 BS7091075SMSCHRAUBE, SELF TAPPING
15 BS703153ZERK,GREASE FITTING
16 BS7029554YP(S) SHAFT, AUGER
17 BS7013852YPSICHERUNGSSCHEIBE
18 BS7027652YPGEAR, WORM,
19 BS7049969
20 BS7013864SMLUBE FITTING, 3/16 PR
21 BS7049968
22 BS1668344SMSHEAR PIN
23 BS703312PIN, COTTER, 3/32X.75
24 BS7013867YP(S) SHEAVE, V
25 BS7090201SMHRSS, 5/16C X5/16
26 BS7021961YP(S) COLLAR
27 BS7010776YPRING, 1/2 DREHUNG
28 BS7019783YP(S) SHAFT, PINNED IMP
29 BS7090842YPROLL PIN, 1/4X1-1/4
30 BS7032479YP(S) WASHER, THRUST
31 BS7015363SM(S) BEARING, PM
32 BS7017865YP(S) SPACER, 1.00 OD X
33 BS7090987YPWASHER, SHIM
