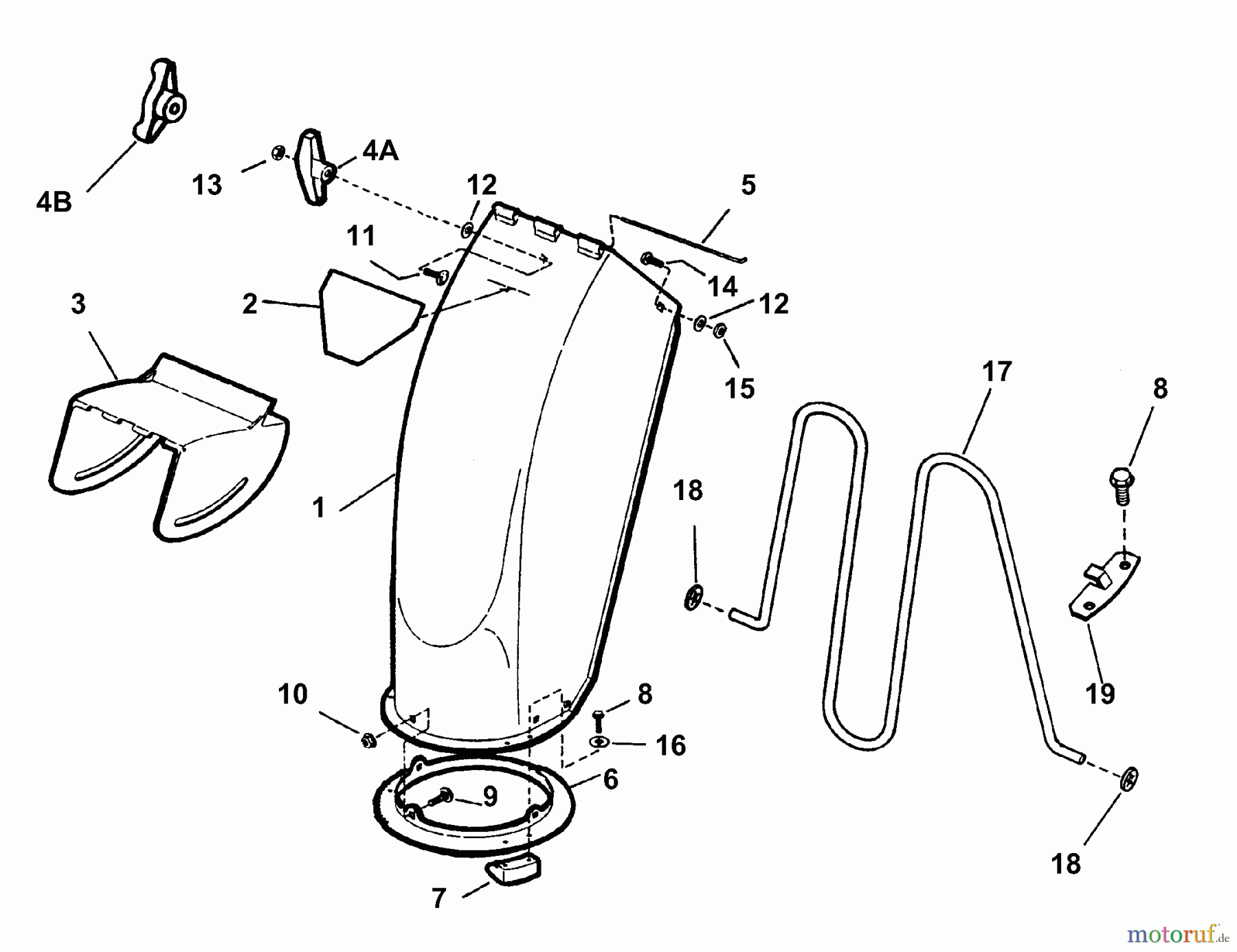

Snapper I55224 - 22" Snowthrower, 5.5 HP, Two Stage, Intermediate Frame, Series 4 Discharge Chute Ricambi

Discharge Chute I55224 - Snapper 22" Snowthrower, 5.5 HP, Two Stage, Intermediate Frame, Series 4

Snapper Schneefräsen I55224 - Snapper 22
PosizioneArticolo numeroDescrizione
1 BS7053411YPCHUTE / DECAL ASMY
2 BS7024773YP(S) DECAL, HAND DANGE
?2A BS7028700SM
3 BS7029847YPDEFLECTOR, CHUTE
4A BS703065WINGKNOB, 5/16-18
4B BS7035744
5 BS7028253YPWIRE PIN
6 BS7038205YP(S) RING, CHUTE
7 BS7011938SMRETAINER, SPOUT
8 BS7091075SMSCHRAUBE, SELF TAPPING
9 BS7091077YPBOLZEN,5/16-18X5/8
10 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
11 BS7090316SMRHSNB, 5/16C X3/4 GR5
12 BS703350U-SCHEIBE, 5/16
13 BS7091511SMMUTTER, 5/16C GR5 YZ
14 BS7091021YPHHCS, 5/16F X3/4
15 BS7091606SMHCLN, 5/16F YZ
16 BS7091552SMFW, .219X.5X.049 BZ
17 BS7019692SM(S) WIRE, SAFETY
18 BS7023673YP(S) FASTENER, PUSH ON
19 BS7032559YP(S) RETAINER, SAFETY
