Snapper H824RX (1695851) - 24" Snowthrower, 9 HP, Two Stage, Intermediate Frame Handles & Controls Group Ricambi

Handles & Controls Group H824RX (1695851) - Snapper 24" Snowthrower, 9 HP, Two Stage, Intermediate Frame

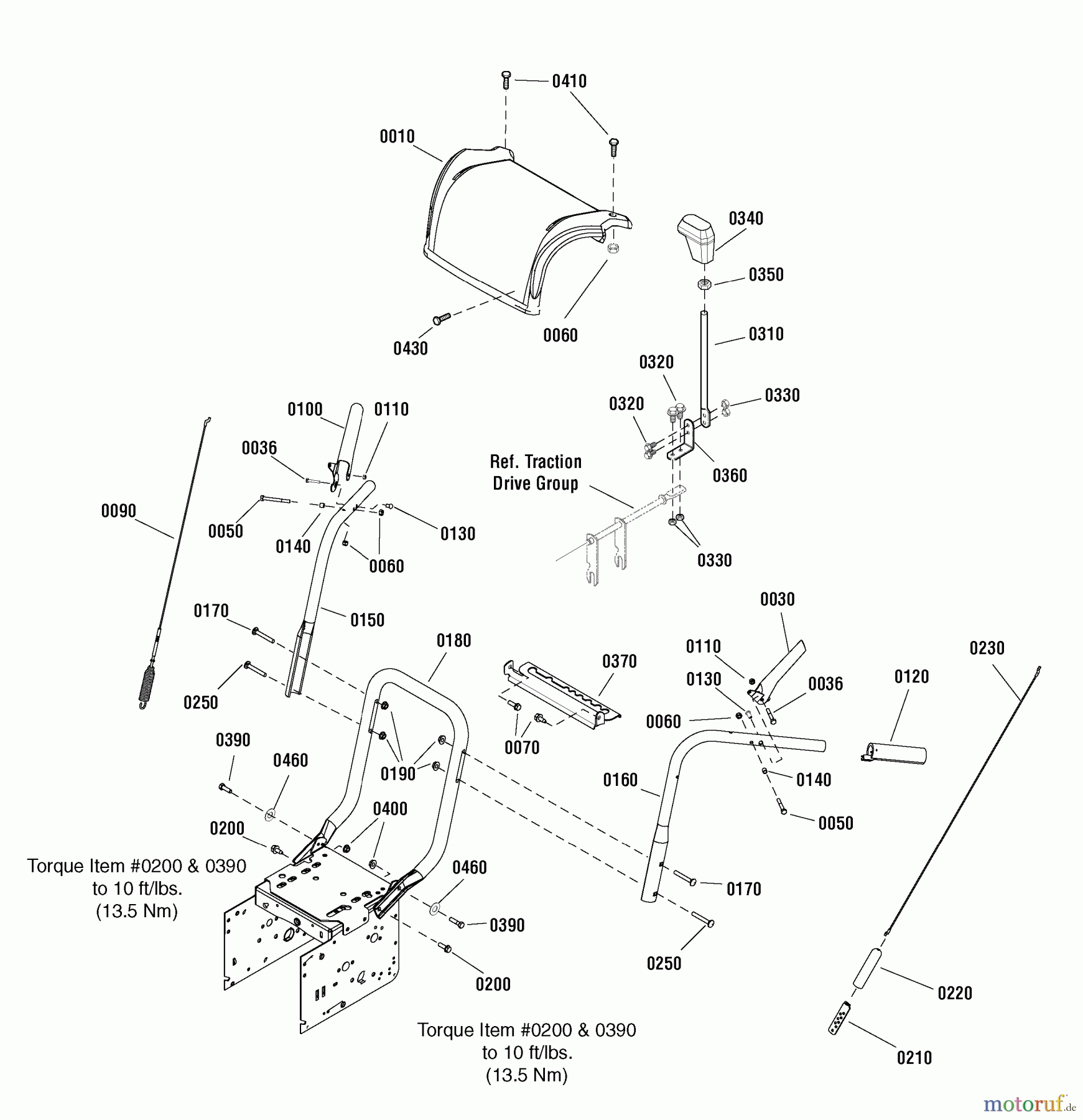

Snapper Schneefräsen H824RX (1695851) - Snapper 24
PosizioneArticolo numeroDescrizione
0010 BS1738089D
0030 BS1739782BMYPKUPPLUNGSHEBEL LINKS
0036 BS1750554YPSCHULTERBOLZEN
0050 BS1921971SMKOPFSCHRAUBE, SECHSK. HD 3/8
0060 Snapper MUTTER, 1/4-20, NYLOCKBS703232MUTTER, 1/4-20, NYLOCK
0070 BS1927429SMSCREW - HEX WASHER HD
0090 BS1732471SMCABLE & SPRING ASSY
0100 BS1739783BMYPKUPPLUNGSHEBEL RECHTS
0110 BS703412NUT, NYLOCK, 10-24
0120 BS1726317SMGRIP, FOAM
0130 BS703223ABSTANDSHULSE ABGESETZT
0140 BS703137SPACER
0150 BS1734587ASMHANDLE - UPPER RH
0160 BS1734586ASMHANDLE - UPPER LH
0170 BS1960273SMBOLT
0180 BS1737759AYPHANDGRIFF, UNTEN
0190 BS703115MUTTER
0200 BS703228SCHRAUBE, 5/16-18 X .75
0210 BS313441MABRACKET, CABLE ADJ BL
0220 BS308146MABOOT, CLUTCH SPRING
0230 BS1502113MACABLE,FR-DR P7 5-13B
0250 BS1931338SMBOLT-RD HD SH SQ NK 5
0310 BS581631E701MAVERSTELLHEBEL
0320 BS703186BOLT,HEX
0330 BS1501216MAKIT,SHEAR BOLT.25-20X
0340 BS304438MASHIFT KNOB 1/2-13 BLA
0350 BS318486MANUT, 1/2-13 HEXJAM
0360 BS760564MALEVER,SPRING SHIFT
0370 BS1737760DYPBRKT, GEAR SELECT P12
0390 BS703585CAPSCREW, 5/16-18X1
0400 BS704067NUT, HEX FLNG,5/16-18
0410 BS703178BOLZEN, FAHRWERK
0430 BS1960556SMZYLINDERSCHRAUBE HD Sternantrieb 1/
0460 BS71071MAUNTERLEGSCHEIBE
