Snapper 521E (1695702) - 21" Snowthrower, 5 HP, Single Stage Electric Starter Group Ricambi

• Start
• Snapper
• Schneefräsen
• 521E (1695702) - Snapper 21" Snowthrower, 5 HP, Single Stage
• Electric Starter Group

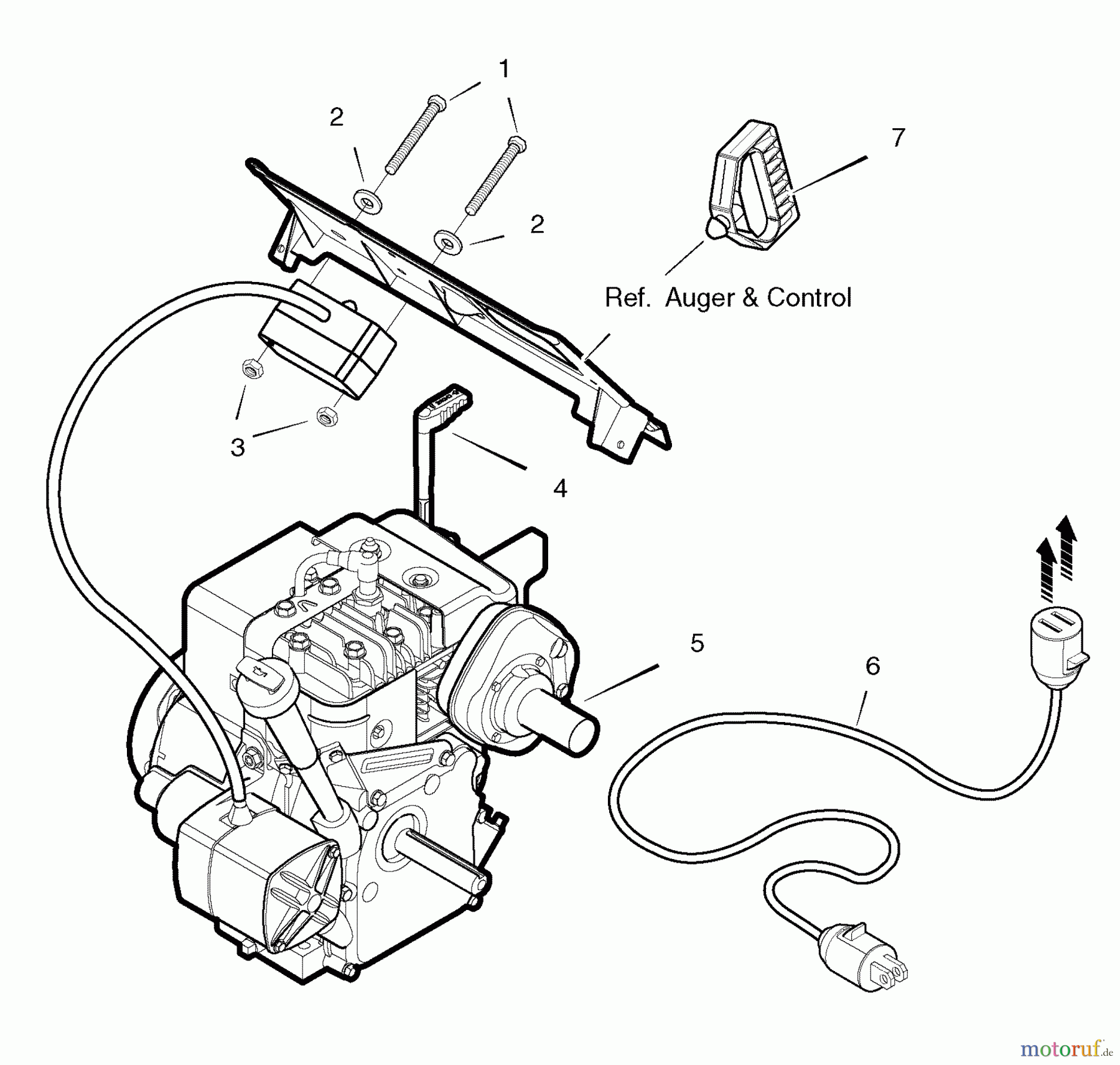

Electric Starter Group 521E (1695702) - Snapper 21" Snowthrower, 5 HP, Single Stage

Posizione		Articolo numero	Descrizione
1		BS311633MA	SCREW, #8-32X3.00 HHC
2		BS414106MA	WASHER F
3		BS271163MA	NUT,
4		Briggs and Stratton 791534
5-1		Briggs and Stratton 699565
5-2		Briggs and Stratton 691880
5-3		Briggs and Stratton 699818
5-4		BS1501670MA	M-BAG,2LBG.38 K25 N
5-5		BS7091511SM	MUTTER, 5/16C GR5 YZ
5-6		BS001X81MA	SECHSKANTBOLZEN.31-18X1.62 Z
6		BS6219MA	CORD, STARTER MOTOR
7		Briggs and Stratton 699334
