Snapper 521E (1695702) - 21" Snowthrower, 5 HP, Single Stage Chute Rod Group Ricambi

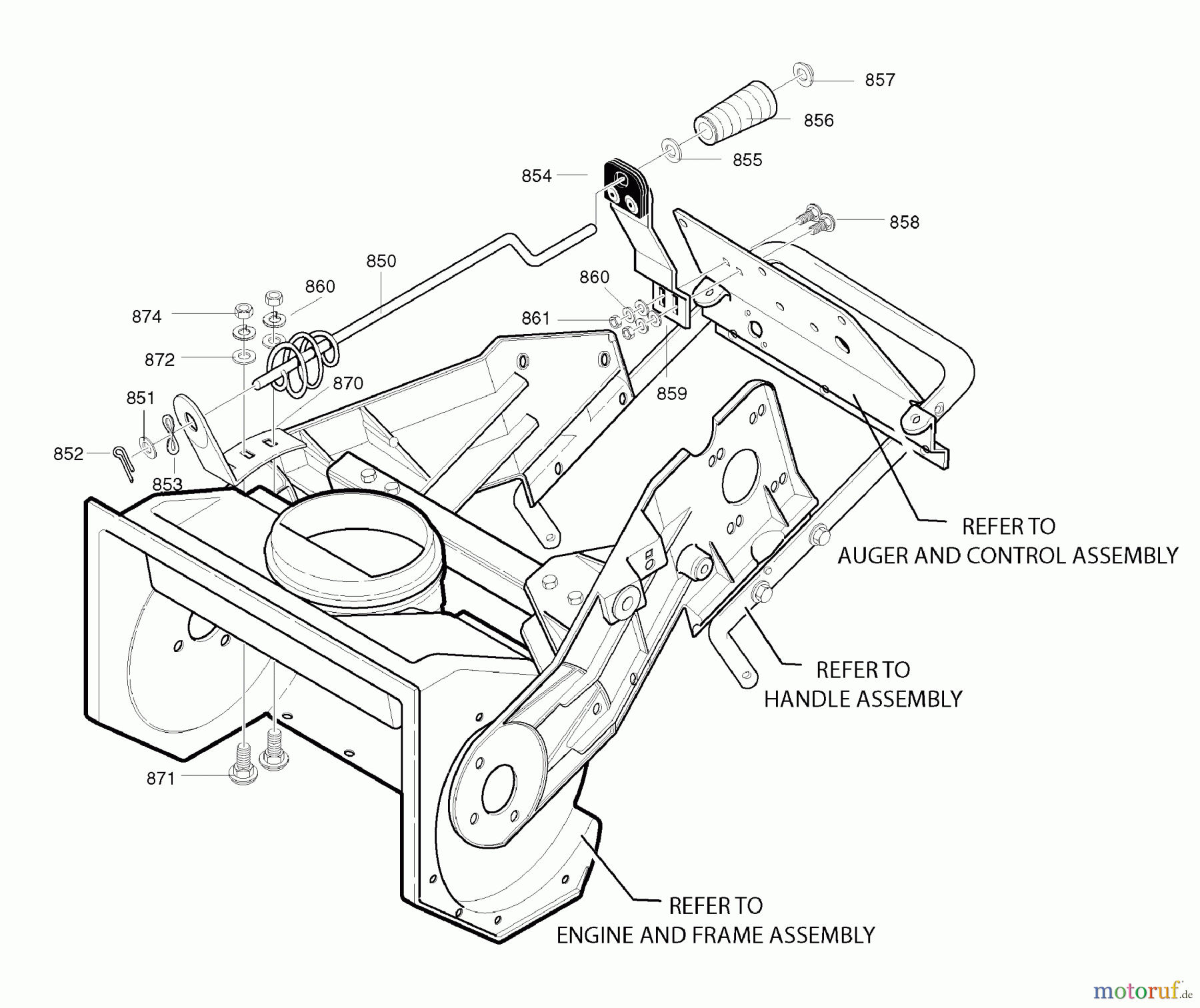

Chute Rod Group 521E (1695702) - Snapper 21" Snowthrower, 5 HP, Single Stage
| Posizione | Articolo numero | Descrizione | |
| 850 | BS337941MA | SCHALTGESTANGE | |
| 851 | BS725332 | ||
| 852 | BS7091303YP | RHSSNB, 5/16CX1 GR5 | |
| 853 | BS313431MA | WASHER, CURVED SPRING | |
| 854 | BS335264MA | HALTERUNG KOMPL. DREHSCHACHT | |
| 855 | BS725332 | ||
| 856 | BS57082MA | KNOB,SLEEVE.39X2.50 2 | |
| 857 | BS723600 | ||
| 858 | BS340715MA | BOLZEN-.25-20x0.63 | |
| 859 | BS71071MA | UNTERLEGSCHEIBE | |
| 860 | BS1501670MA | M-BAG,2LBG.38 K25 N | |
| 861 | BS71034MA | SECHSKANTMUTTER 25 - 20 | |
| 870 | BS1742103HYP | HALTER, AUSWURF | |
| 871 | BS340720MA | BOLT,5/16-18X.75 CARR | |
| 872 | BS725331 | ||
| 874 | BS7091511SM | MUTTER, 5/16C GR5 YZ | |
