Snapper 521E (1695702) - 21" Snowthrower, 5 HP, Single Stage Auger and Control Group Ricambi

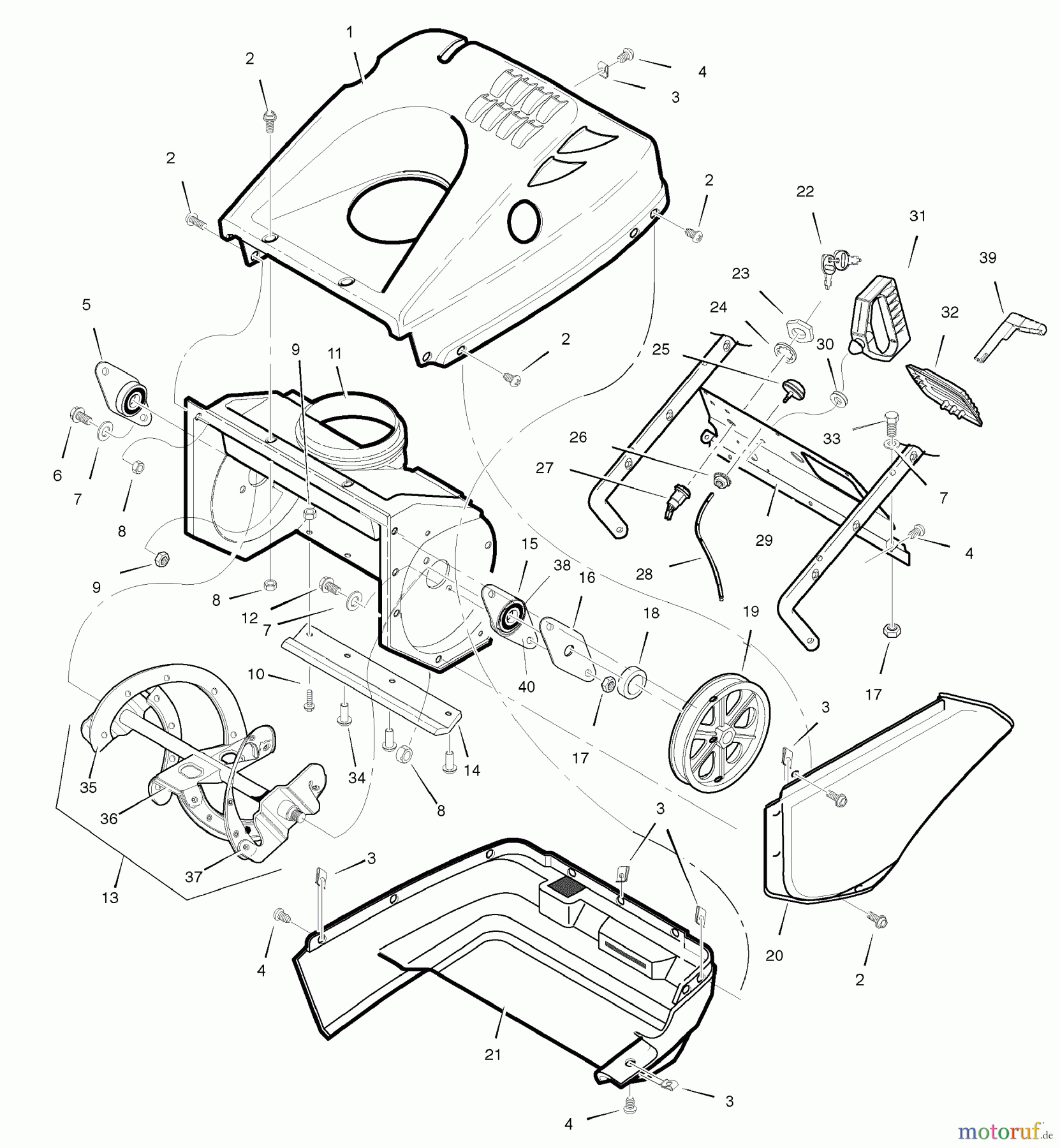

Auger and Control Group 521E (1695702) - Snapper 21" Snowthrower, 5 HP, Single Stage

Posizione	Articolo numero	Descrizione
1	BS1740057MA	ABDECKUNG OBEN
2	BS12342MA	SCREW, 10-24X.50 WAHH
3	BS578109MA	NUT, 1/4-10 SPEED J
4	BS313685MA	SCHRAUBE, 1/4-14X .75 SL
5	BS577023MA	LAGER, FLANSCH
6	BS710263MA	SCHRAUBE, 1/4-20X1.00 HH
7	BS71067MA	UNTERLEGSCHEIBE
8	BS312300MA	MUTTER,10-24 HEX CTRLK
9	BS7001278MA	CHUTE HDWARE KIT SEAR
10	BS703186	BOLT,HEX
11	BS340091MA	AUGER HSG,21 SS PCH B
12	BS579052MA	SCHRAUBE.25-20X0.62 HHC
13	BS327072MA	SCHRAUBE,21 2CY SCHWARZ
14	BS55323MA	KRATZMESSER 20.63 P
15	BS583459MA	BLECH&LAGER ASY
16	BS334287MA	HALTEBLECH, LAGER SCHWARZ
17	BS1501216MA	KIT,SHEAR BOLT.25-20X
18	BS578101MA	DISTANZBUCHSE .640X0.8
19	BS333446MA	PULLEY,POLYV 6OD 10RI
20	BS340089MA	RIEMENABDECKUNG 21 SCHWARZ
21	BS1501705MA	ABDECKUNG, BODEN/GRUND
22	BS691959	SCHLUESSEL
23	BS300193MA	NUT.62-32 ACC #125 PL
24	BS313683MA	SCHEIBE 640-1.10
25	BS394281S	PRIMER-VERGASER
26	BS271172MA	MUTTER, 1/4-20 REGHEXKEP
27	BS56992MA	ZUNDSCHALTER 45 DE
28	BS335507MA	HOSE,PRIMER 9.50 LG
29	BS1501706MA	BEDIENUNGSKONSOLE
30	BS57587MA	GUMMITULLE&SCHEIBE,SEILFUHRUNG
31	BS699334	BUGELGRIFF/SEIL KIT
32	BS1501878MA	PANEL, ACCESS
33	BS313674MA	SCREW, 1/4-20X1.25 HH
34	BS577707MA	NIETE RIVET,OVSET.250DIAX.6
35	BS302565MA	MESSER, SCHRAUBE 2CY
36	BS335992MA	BLADE,CENTER <57121
37	BS49838MA	NIET,.250DIAX.5
38	BS1705897SM	BEARING, BALL 11/16X1
39	BS791534	KNOPF-CHOKE WELLE
40	BS580251MA	HALTERUNG,LAGER YZ
