Snapper SV25650B (7085687) - 6.5 HP Push Vacuum Series 0 HANDLES, CONTROLS, BAG Ricambi

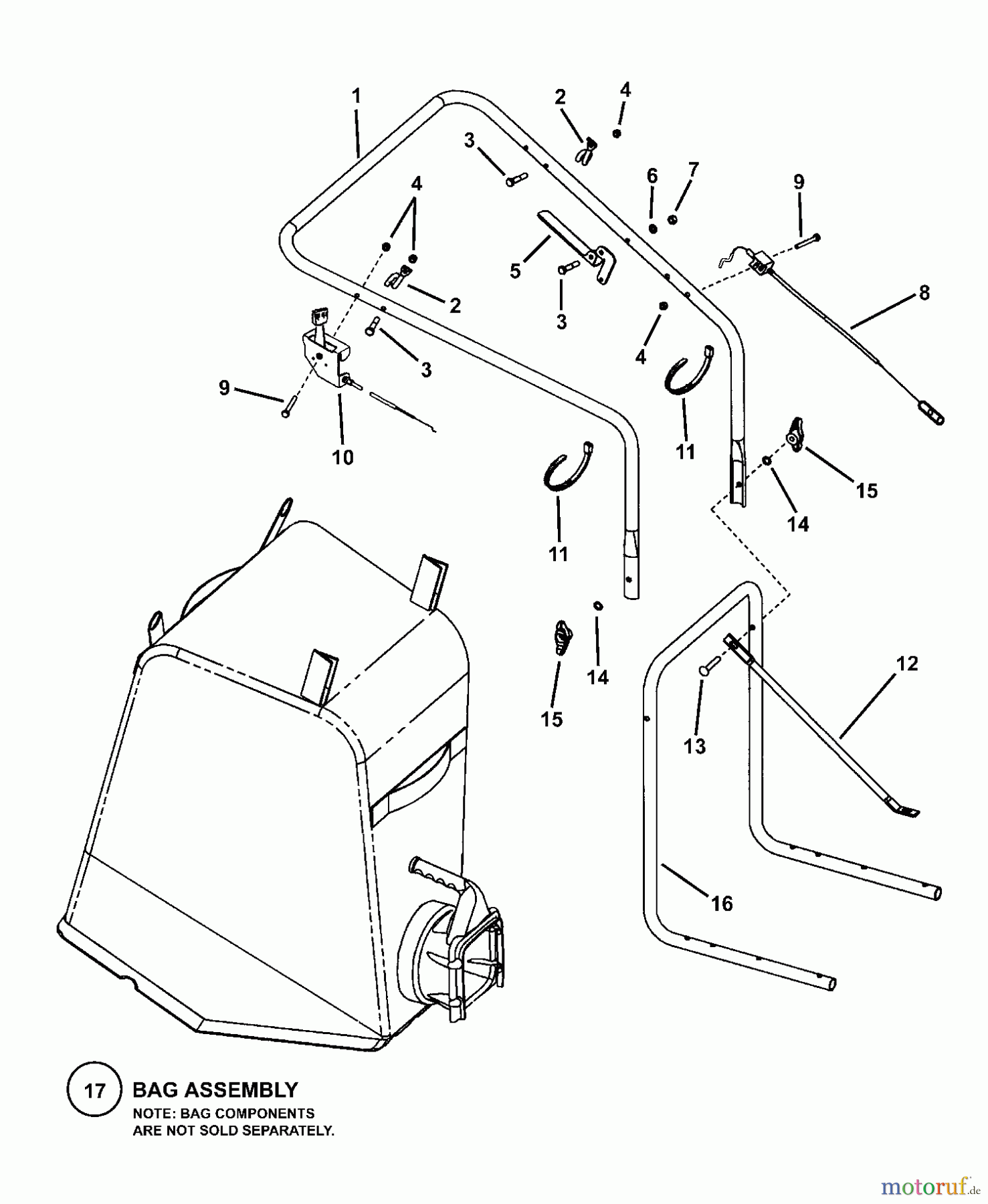

HANDLES, CONTROLS, BAG SV25650B (7085687) - Snapper 6.5 HP Push Vacuum Series 0

Snapper Sonstiges SV25650B (7085687) - Snapper 6.5 HP Push Vacuum Series 0 HANDLES, CONTROLS, BAG
PosizioneArticolo numeroDescrizione
1 BS7058669
2 BS7022779YPBRKT, PULL ROPE
3 BS7079577YPHHCS, 1/4C X1-1/2
4 BS7076978SMHLN, 1/4C BZ
5 BS7075800YPHANDLE, HEIGHT ADJUST
6 BS703116LCKWSHR
7 BS7091511SMMUTTER, 5/16C GR5 YZ
8 BS7075804
9 BS7090505YPHHCS, 1/4C X2 GR5 BZ
10 BS7075838YPTHROTTLE CABLE
11 BS7012080SMCABLE TIE, 7.0
12 BS7075891YPBRACE, HANDLE
13 BS7091930YPRHSNB, 5/16C X 2, YZ
14 BS703587WASHER, 5/16
15 BS703065WINGKNOB, 5/16-18
16 BS3075803SM
17 BS7058942SMVAC BAG SUB ASSY.
