Spareparts

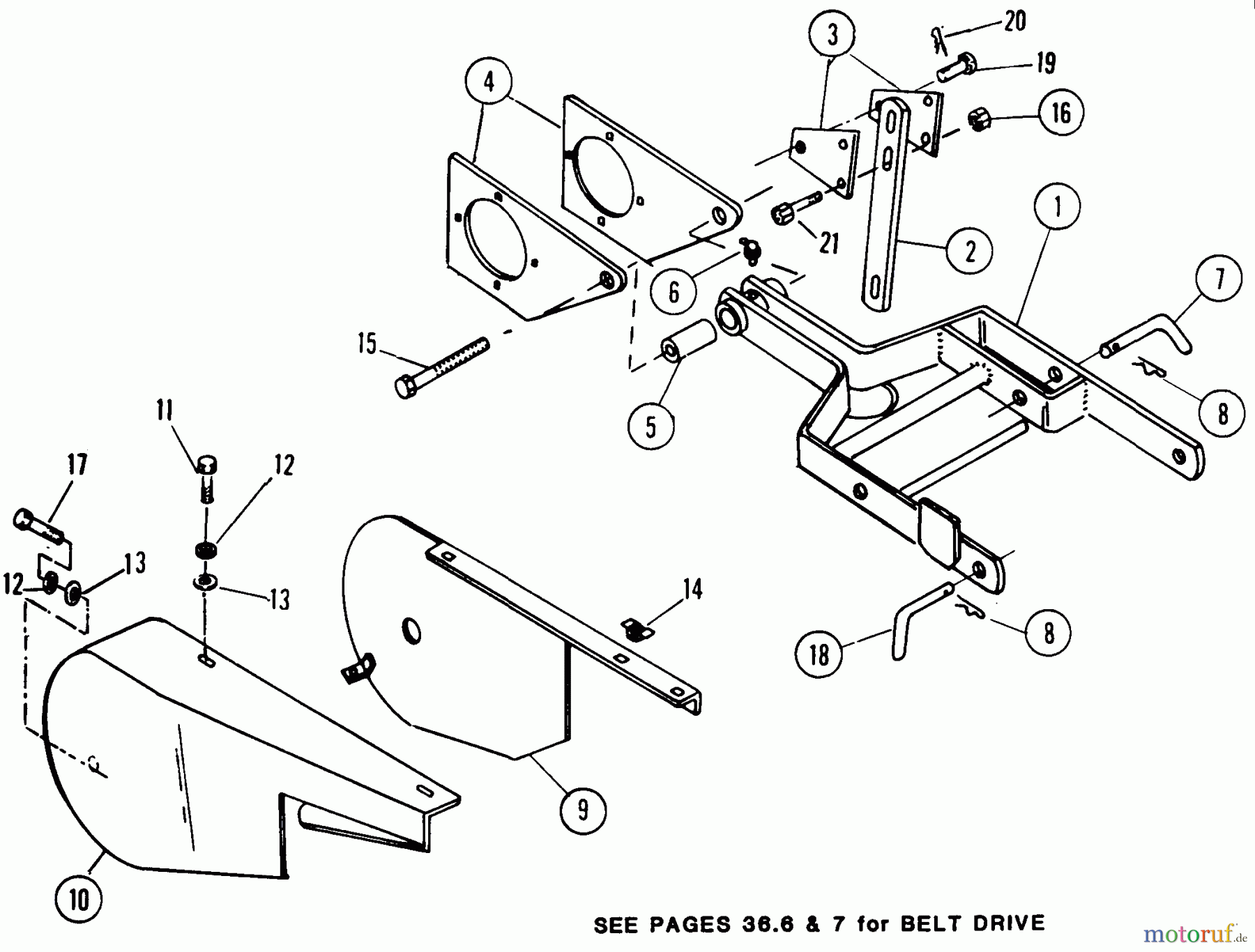

Belt Shield, Lift Link 7060373 - Snapper 36" Rear PTO Tiller Attachment, MF Series
| Posizione | Articolo numero | Descrizione | |
| 1 | BS7013188 | ||
| 2 | BS7013222 | ||
| 3 | BS7013223 | ||
| 4 | BS7013092 | ||
| 5 | BS7013189 | ||
| 6 | BS7013066 | ||
| 7 | BS7013224 | ||
| 8 | BS7012867YP | HAIR PIN, 2.56 | |
| 9 | BS7013200 | ||
| 10 | BS7013201 | ||
| 11 | BS7091318 | ||
| 12 | BS7090187SM | SLW, .318X.583X.078 Z | |
| 13 | BS7090692YP | FW, 5/16 X 7/8 X .083 | |
| 14 | BS7016116YP | NUT, PUSH ON, 5/16 YZ | |
| 15 | BS7062038 | ||
| 16 | BS7090975YP | HCLN, 1/2C GR5 ZP | |
| 17 | BS7090534YP | HHCS, 5/16C X1/2 GR5 | |
| 18 | BS7013191 | ||
| 19 | BS7013226 | ||
| 20 | BS7012714 | ||
| 21 | BS703871 | KOPFSCHRAUBE,3/8-16X1.25 | |
