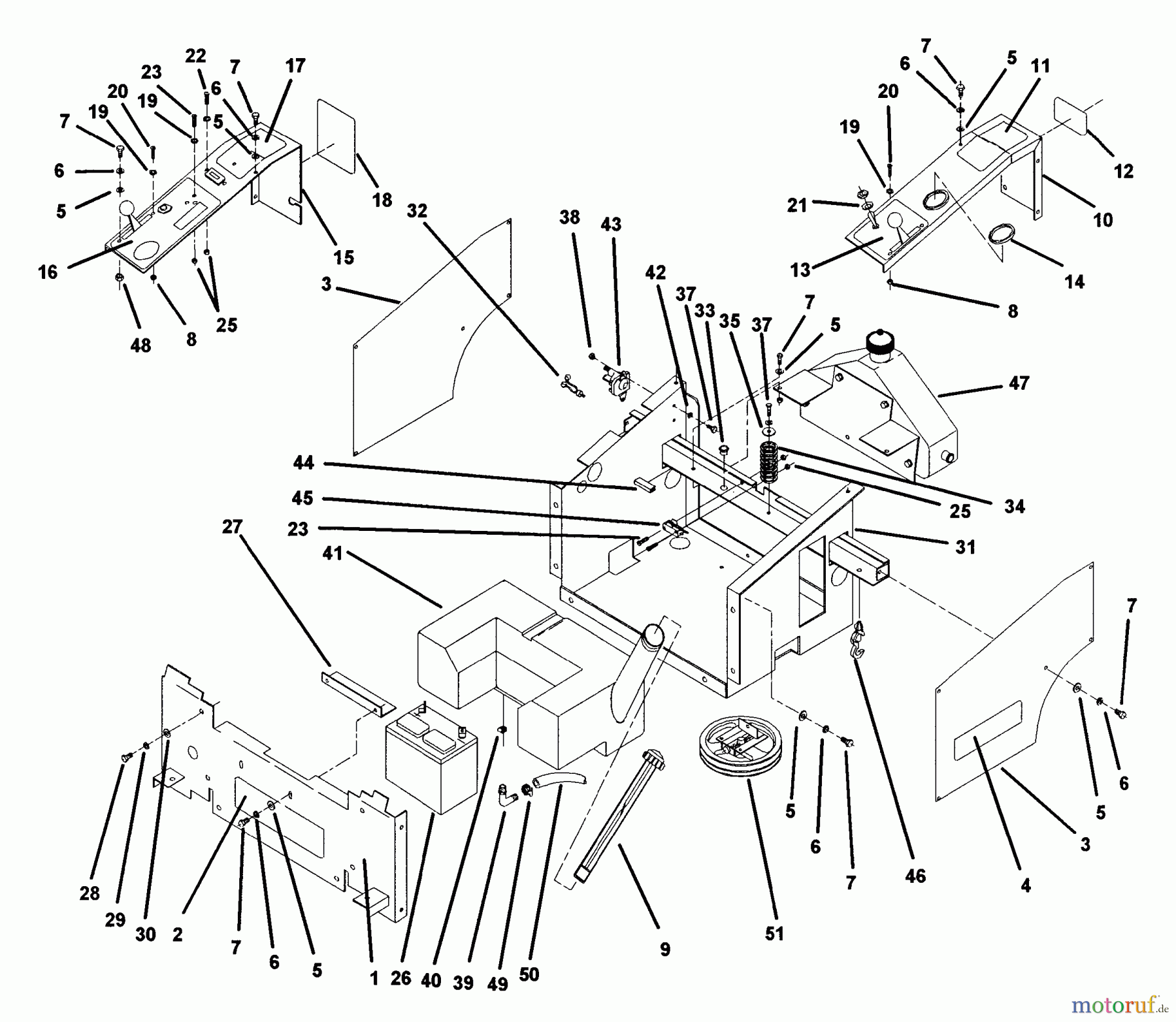

Snapper ZU2014K (80455) - 20 HP Zero-Turn Mower, Twin Stick, Unistat Drive, ZTR Series 4 Seat Support Assembly & Body Cover Parts Ricambi

Seat Support Assembly & Body Cover Parts ZU2014K (80455) - Snapper 20 HP Zero-Turn Mower, Twin Stick, Unistat Drive, ZTR Series 4

Snapper Nullwendekreismäher, Zero-Turn ZU2014K (80455) - Snapper 20 HP Zero-Turn Mower, Twin Stick, Unistat Drive, ZTR Series 4 Seat Support Assembly & Body Cover Parts
PosizioneArticolo numeroDescrizione
1 BS7079895
2 BS79643
3 BS7079676
4 BS7062298
5 BS703350U-SCHEIBE, 5/16
6 BS7079267YP(C) LOCKWASHER, 5/16
7 BS7076934YP(C) HHCS, 5/16C X3/4
8 BS7079828
9 BS7079858YP(C) CAP, FUEL GAUGE
10 BS7062056
11 BS7079238
12 BS7079916
13 BS7079913
14 BS7062058YP(C) TRIM, U-CHANNEL,
15 BS7062057
16 BS7079914
17 BS7079239
18 BS7062391
19 BS7079826
20 BS7079848
21 BS7079890
22 BS7079825YP(C) SCREW, MACH, #6C
23 BS7079281YP(C) RHSS, #6C X1
?24 BS7079849
25 BS7079310
26 BS7079482
27 BS7079698YP(C) ANGLE, BATTERY CL
28 BS7091086YPSCHRAUBE, 3/8-16 X 3/4
29 BS7079268YPSLW, 3/8 HEAVY ZP
30 BS7090517SMFW, .438X1X.084 YZ
31 BS7079686
32 BS7079864YP(C) BLIND HOLE KURLY-
33 BS7079191YP(C) BUSHING, PLASTIC,
34 BS7079857
35 BS7079694YP(C) WASHER
?36 BS7090052SMSLW, .256X.487X.062 Z
37 BS703925CAPSCREW, 1/4-20X.75
38 BS7076978SMHLN, 1/4C BZ
39 BS7079853YP(C) ELBOW, 90D 1/4NPT
40 BS7079870
41 BS7079856YP(C) FUEL TANK
42 BS7091294
43 BS7079193YPSOLENOID STARTER
44 BS7079897
45 BS7079194YPSW,ENCL,SPDT,HINGED
46 BS7079854YP(C) FITTING, 1/2 ROSE
47 BSEingangswelle UE 600
48 Snapper MUTTER, 5/16-18BS703902MUTTER, 5/16-18
49 BS7079952
50 BS79218
51 BSEingangswelle UE 600
