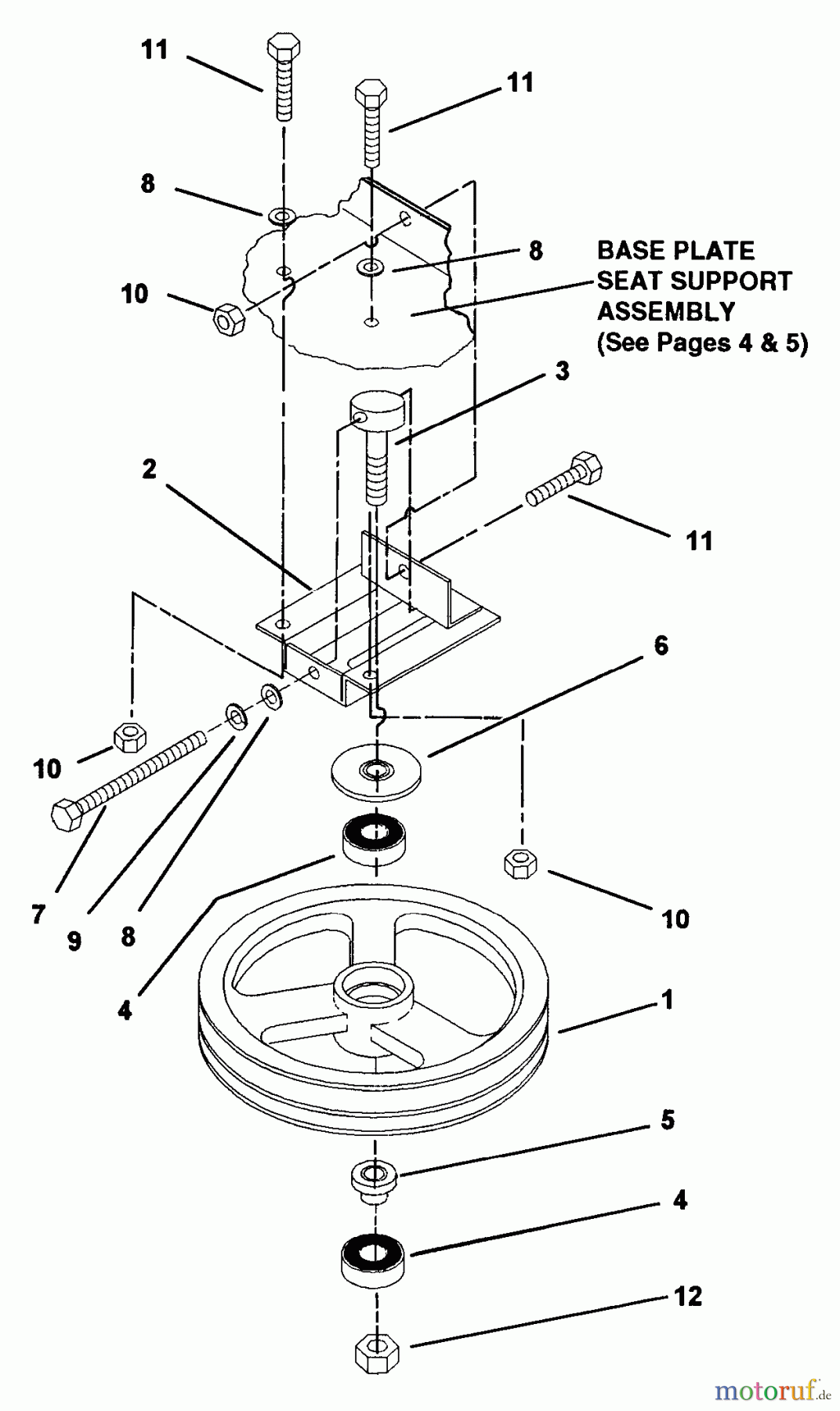

Snapper ZU2014K (80455) - 20 HP Zero-Turn Mower, Twin Stick, Unistat Drive, ZTR Series 4 Double Groove Idler Assembly Ricambi

Double Groove Idler Assembly ZU2014K (80455) - Snapper 20 HP Zero-Turn Mower, Twin Stick, Unistat Drive, ZTR Series 4

Snapper Nullwendekreismäher, Zero-Turn ZU2014K (80455) - Snapper 20 HP Zero-Turn Mower, Twin Stick, Unistat Drive, ZTR Series 4 Double Groove Idler Assembly
PosizioneArticolo numeroDescrizione
1 BS7062340YP(C) IDLER, (2) GROOVE
2 BS7062341YP(C) IDLER, MTG BRKT.
3 BS7062342YP(C) IDLER, MTG.STUD
4 BS7062035YP(C) BEARING, 6203-2RS
5 BS7062037YP(C) STAND, IDLER
6 BS7062343YP(C) IDLER, MOUNTING S
7 BS7079403YP(C) BOLT, 5/16X4-1/2
8 BS703350U-SCHEIBE, 5/16
9 BS7079267YP(C) LOCKWASHER, 5/16
10 Snapper MUTTER, 5/16-18BS703902MUTTER, 5/16-18
11 BS7076934YP(C) HHCS, 5/16C X3/4
12 BS7079277
