Snapper ZT2548 (2691167-00) - 48" Zero-Turn Mower,25 HP 300Z Series ZTR Transmission Group Ricambi

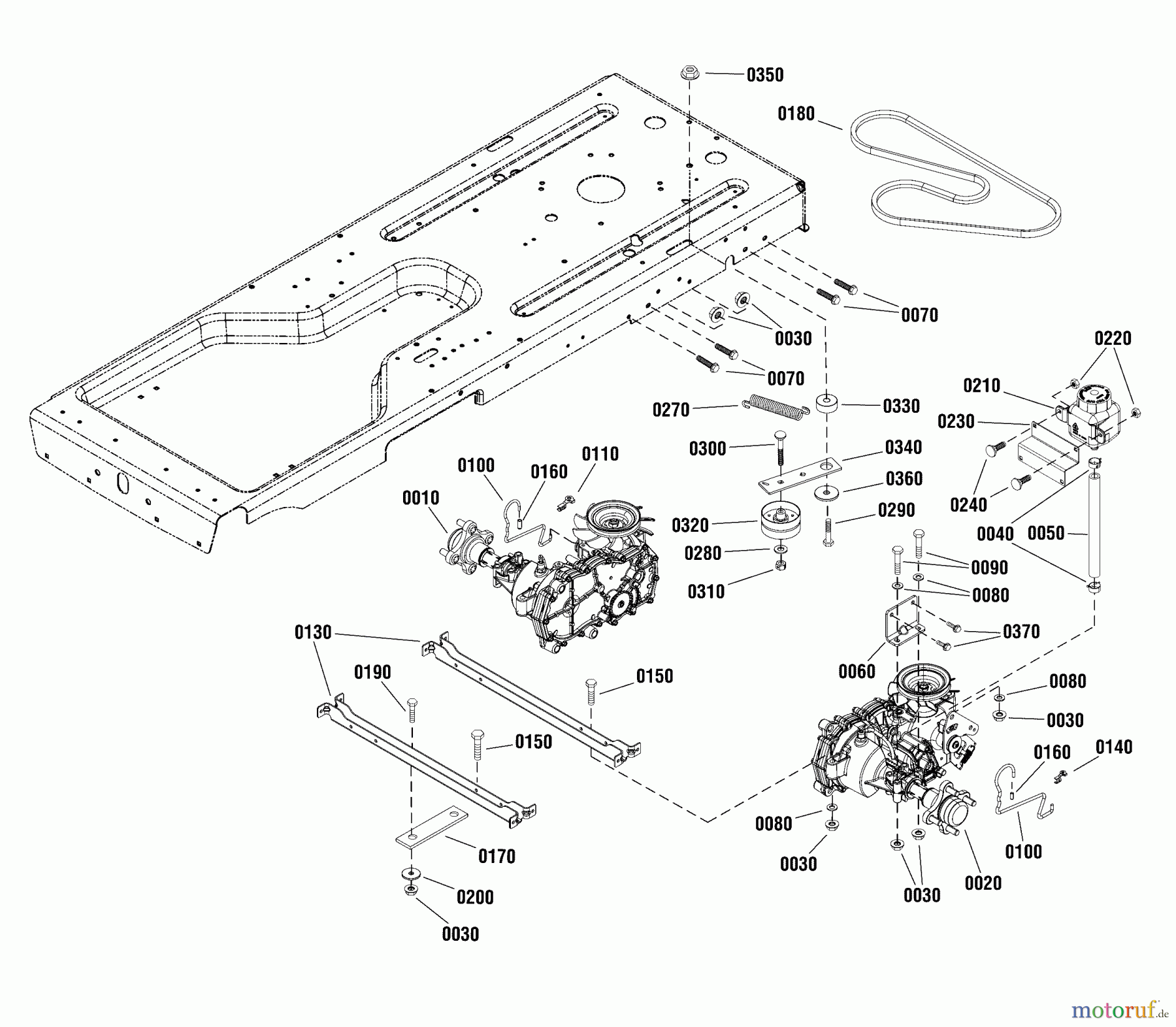

Transmission Group ZT2548 (2691167-00) - Snapper 48" Zero-Turn Mower,25 HP 300Z Series ZTR
| Posizione | Articolo numero | Descrizione | |
| 0010 | BS1756626YP | ||
| 0020 | BS7104656YP | TRANSAXLE, EZT, LH | |
| 0030 | BS704067 | NUT, HEX FLNG,5/16-18 | |
| 0040 | BS5025474SM | SCHLAUCHKLEMME | |
| 0050 | BS703343 | ||
| 0060 | BS1756690BMYP | ||
| 0070 | BS703325 | MUTTER, 5/16-18 | |
| 0080 | BS703350 | U-SCHEIBE, 5/16 | |
| 0090 | BS703869 | KOPFSCHRAUBE,5/16-18X2.75 | |
| 0100 | BS7103512YP | ROLL RELEASE ROD | |
| 0110 | BS1717024SM | CLIP-GESTANGE GABELKOPF | |
| 0130 | BS1756569BMYP | ||
| 0140 | BS1725550SM | CLIP-GESTANGE GABELKOPF | |
| 0150 | BS703177 | HHCS | |
| 0160 | BS7103537YP | VINYL CAP | |
| 0170 | BS7104674YP | RUBBER, ANTI-ROTATION | |
| 0180 | BS7100102SM | KEILRIEMEN, ANTRIEB | |
| 0190 | BS703585 | CAPSCREW, 5/16-18X1 | |
| 0200 | BS7011763SM | WASHER, FENDER, 5/16 | |
| 0210 | BS5100473SM | STAURAUM | |
| 0220 |  | BS703232 | MUTTER, 1/4-20, NYLOCK |
| 0230 | BS7301169BMYP | ||
| 0240 | BS703101 | BOLZEN,1/4-20X.75 | |
| 0270 | BS1756635YP | ||
| 0280 | BS703590 | WASHER, FLAT, .406 | |
| 0290 | BS704669 | ||
| 0300 | BS704278 | ||
| 0310 | BS703347 | MUTTER, 3/8-16 | |
| 0320 | BS7100103SM | SPANNROLLE, 3.25OD X.391ID | |
| 0330 | BS1756633YP | ||
| 0340 | BS1756634BMYP | ||
| 0350 | BS1930644SM | BUNDMUTTER 1/2-1 | |
| 0360 | BS704668 | ||
| 0370 | BS703823 | BOLT, 5/16-18X0.625 | |
