Snapper ZT21546 (2691137-00) - 46" Zero-Turn Mower, 21.5 HP, ZT Twin Stick Rider 200Z Series Engine Group Ricambi

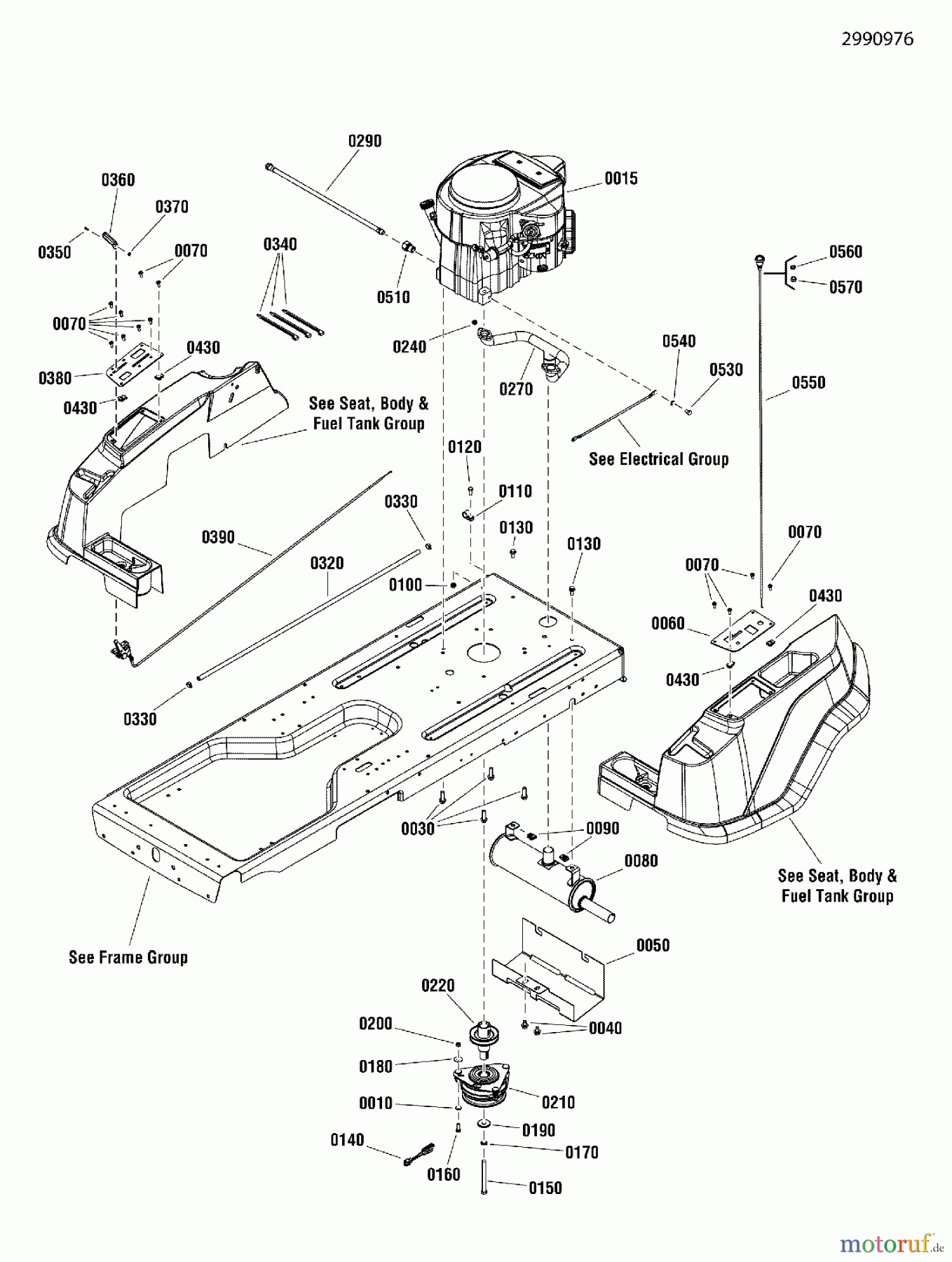

Engine Group ZT21546 (2691137-00) - Snapper 46" Zero-Turn Mower, 21.5 HP, ZT Twin Stick Rider 200Z Series

Snapper Nullwendekreismäher, Zero-Turn ZT21546 (2691137-00) - Snapper 46
PosizioneArticolo numeroDescrizione
0010 BS703350U-SCHEIBE, 5/16
0015 BSFR651V-FS00-S
0030 BS1928727SMSCREW-HEX WZ LOCK FLN
0040 BS7091198SMHWST, 3/8CX5/8BP
0050 BS7301083BMYPHEAT SHIELD, MUFFLER
0060 BS7301084BMYPPANEL, CONTROL, LH
0070 BS703953SCREW, 1/4-20X5/8
0080 BS7103411YPMUFFLER, RZT
0090 BS1935255SMNUT, SPEED, 5/16-18 L
0100 BS690272MAVERSTELLHEBEL KOMPL. STD
0110 BS7900020SMKABELCLIP 5/8
0120 BS704287
0130 BS9357MASCHRAUBE, 5/16-18X .75WD
0140 BS1737462YPVERBINDUNGSKABEL
0150 BS7092130SMHHCS, 7/16F X4-1/2, G
0160 BS703408CAPSCREW, 5/16-18
0170 BS704007LCKWSHR,7/16,SPLIT RE
0180 BS7011763SMWASHER, FENDER, 5/16
0190 BS704053WASHER
0200 BS703164MUTTER
0210 BS1757359YP
0220 BS7043343SMRIEMENSCHEIBE
0240 BS703233MUTTER, 1/4-20, GR5
0270 BS1755999YP
0290 BS5102781YP
0320 BS1735243SM
0330 BS7029900SMKLEMME 490 X .31
0340 BS703586TIE, SELF LOCKING
0350 BS7091017YPSCREW, FIL.HEAD
0360 BS7103888YPKNOB, THROTTLE, RED
0370 BS703460NUT, HEX, ZINC, #8-32
0380 BS7301093BMYPPANEL, CONTROL, RH
0390 BS7104211YPTHROTTLE ASSEMBLY
0430 BS7023295SMBUNDMUTTER, 1/4C
0510 BS5022234SMADAPTER, OIL DRAIN
0530 BS51754GS
0540 BS703138U-SCHEIBE
0550 BS5023238YP
0560 BS703864WASHER, EXT, 3/8
0570 BS703895NUT, HEX, 3/8-24
