Snapper ZT20500BV (5091001) - 50" Zero-Turn Mower, 20 HP, ZTR FastCut Series 0 Hydraulics Group Version 1 Ricambi

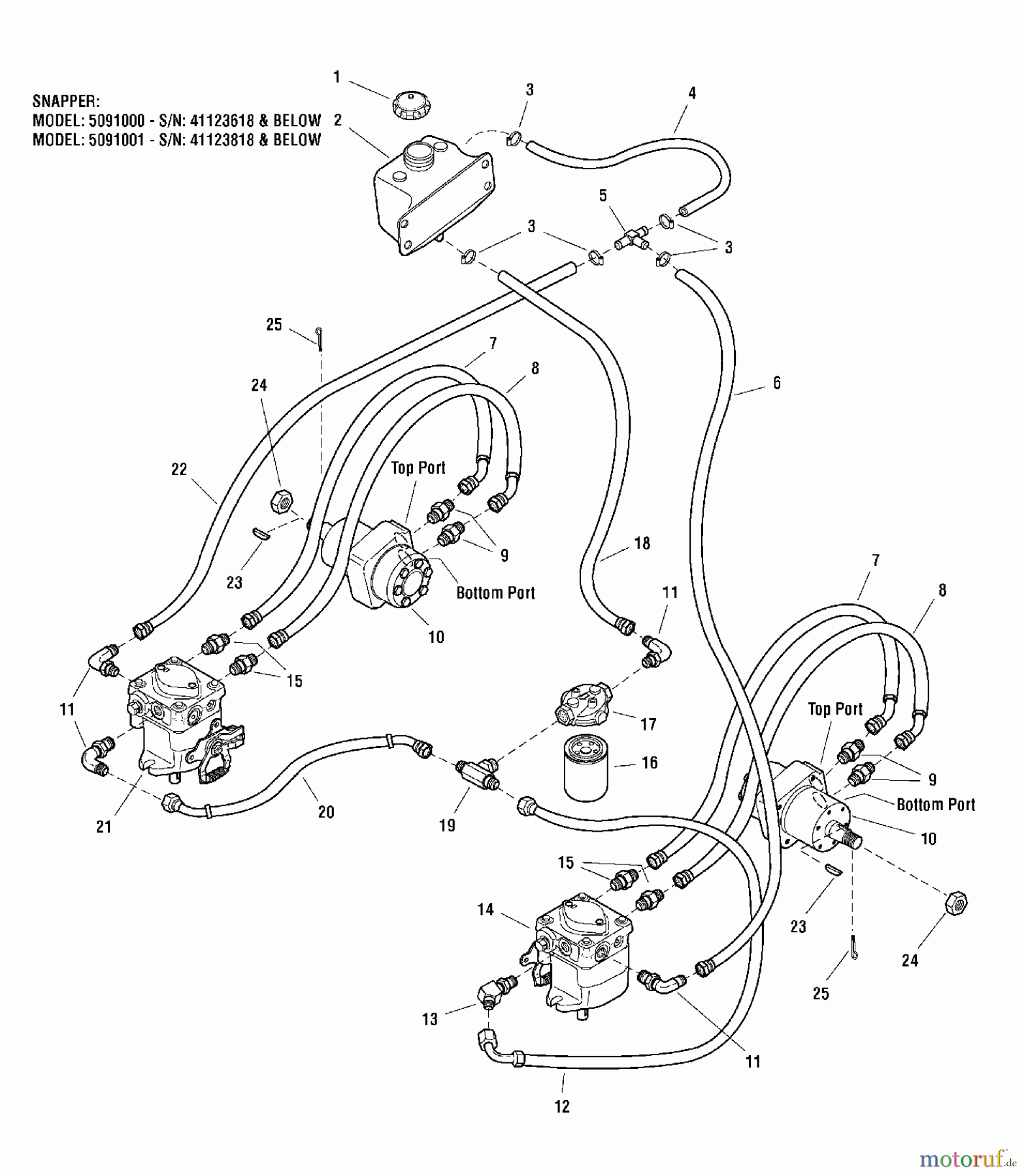

Hydraulics Group Version 1 ZT20500BV (5091001) - Snapper 50" Zero-Turn Mower, 20 HP, ZTR FastCut Series 0

Snapper Nullwendekreismäher, Zero-Turn ZT20500BV (5091001) - Snapper 50
PosizioneArticolo numeroDescrizione
1 BS5023191SMCAP, HYDRAULIC RESERV
2 BS5023185YPUSE 5061257 - HYDRAUL
3 BS5021392SM
4 BS5050860X8P5SMHOSE - 3/8 8.5"
5 BS5022920SMFITTING, TEE, 1/2" HO
6 BS5048998SM
7 BS5022710SM
8 BS5102110YPHOSE ASSEMBLY (29")
9 BS5022634SMADAPTER, HYD.
10 BS5023091SMMOTOR, WHEEL
11 BS5022712SM
12 BS5048999SM
13 BS5023087SM
14 BS5023092SMPUMP, HYDRAULIC, LH,
15 BS5022633SMADAPTER, HYD.
16 BS1719168YPFILTER, OIL
17 BS5023096SMFILTER HEAD, HYDRAULI
18 BS5049001SM
19 BS5023161SM
20 BS5049000SM
21 BS5023093SMPUMP, HYDRAULIC, RH,
22 BS5049002SM
23 BS5023091X1SMKEY - WOODRUFF
24 BS5023091X2SMCASTLE NUT
25 BS5025203X10SMPIN, COTTER, 1/8" X 1
