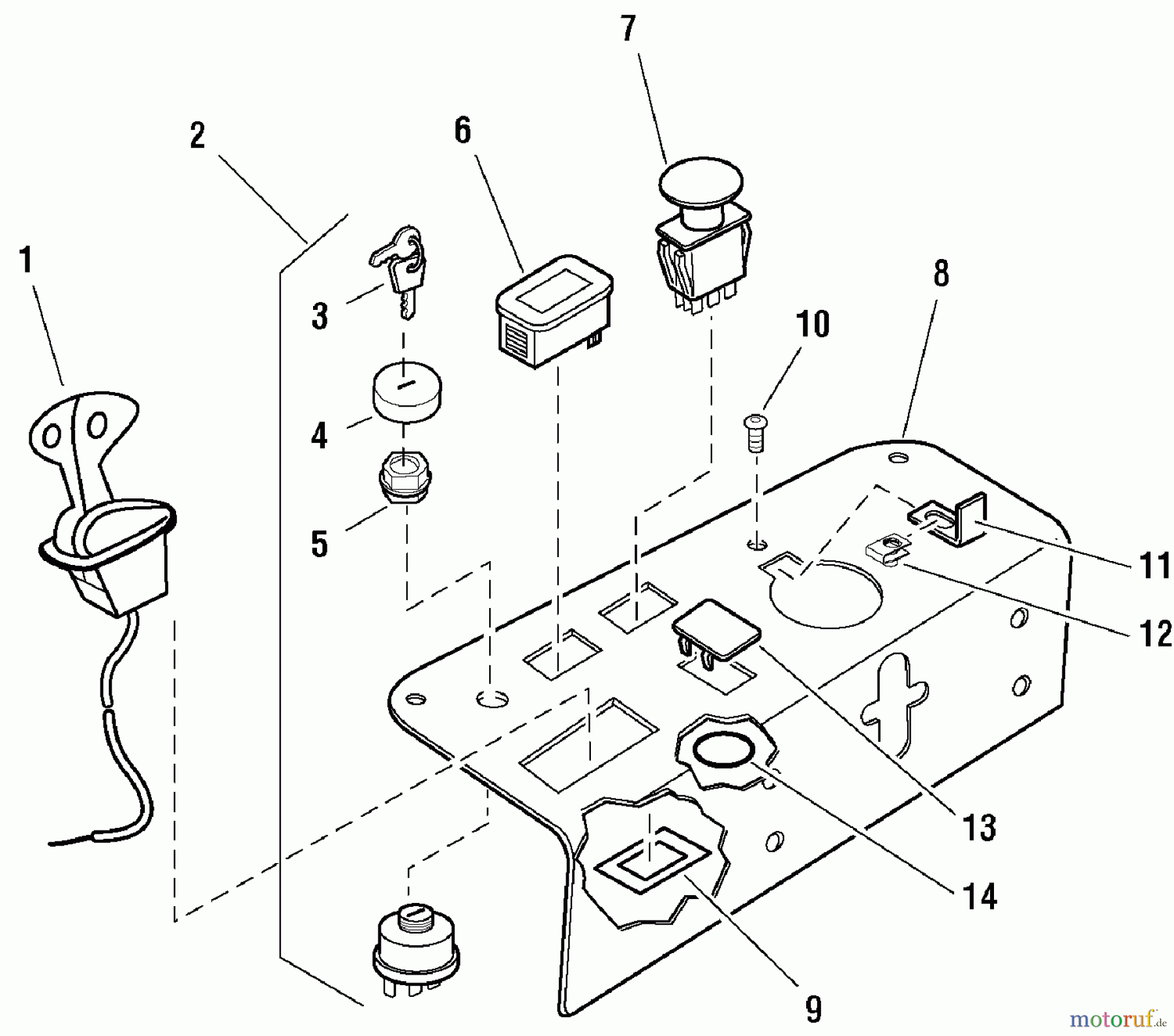

Snapper ZT20500BV (5091001) - 50" Zero-Turn Mower, 20 HP, ZTR FastCut Series 0 Controls Group - Panel Ricambi

Controls Group - Panel ZT20500BV (5091001) - Snapper 50" Zero-Turn Mower, 20 HP, ZTR FastCut Series 0

Snapper Nullwendekreismäher, Zero-Turn ZT20500BV (5091001) - Snapper 50
PosizioneArticolo numeroDescrizione
1 BS7072517SMTHROTTLE/CHOKE ASSY,
2 BS1686734SMIGNITION SWITCH
3 BS1717163SMKEY-IGNITION INDAK
4 BS1704346SMCOVER-IGNITION BLACK
5 BS5022791SMKUNSTOFFMUTTER
6 BS1731184SMSTUNDENZAHLER DIGITAL W/
7 BS1722887SMSWITCH-PTO PUSH
8 BS5048758ASM
9 BS5022222SMRING SCHALTER
10 BS5025229X4
11 BS5049022ASMBRACKET, LOCK
12 BS5022665SMBODY CLIP, 1/4-20 X 1
13 BS1709188SMPLUG, BLACK PLASTIC
14 BS5022269SMO-RING, 7/8" ID X 1/1
