Snapper ZT19441KWV (5900609) - 44" Zero-Turn Mower, 18 HP, ZTR FastCut Series 1 Engine & PTO Group - KAWASAKI Ricambi

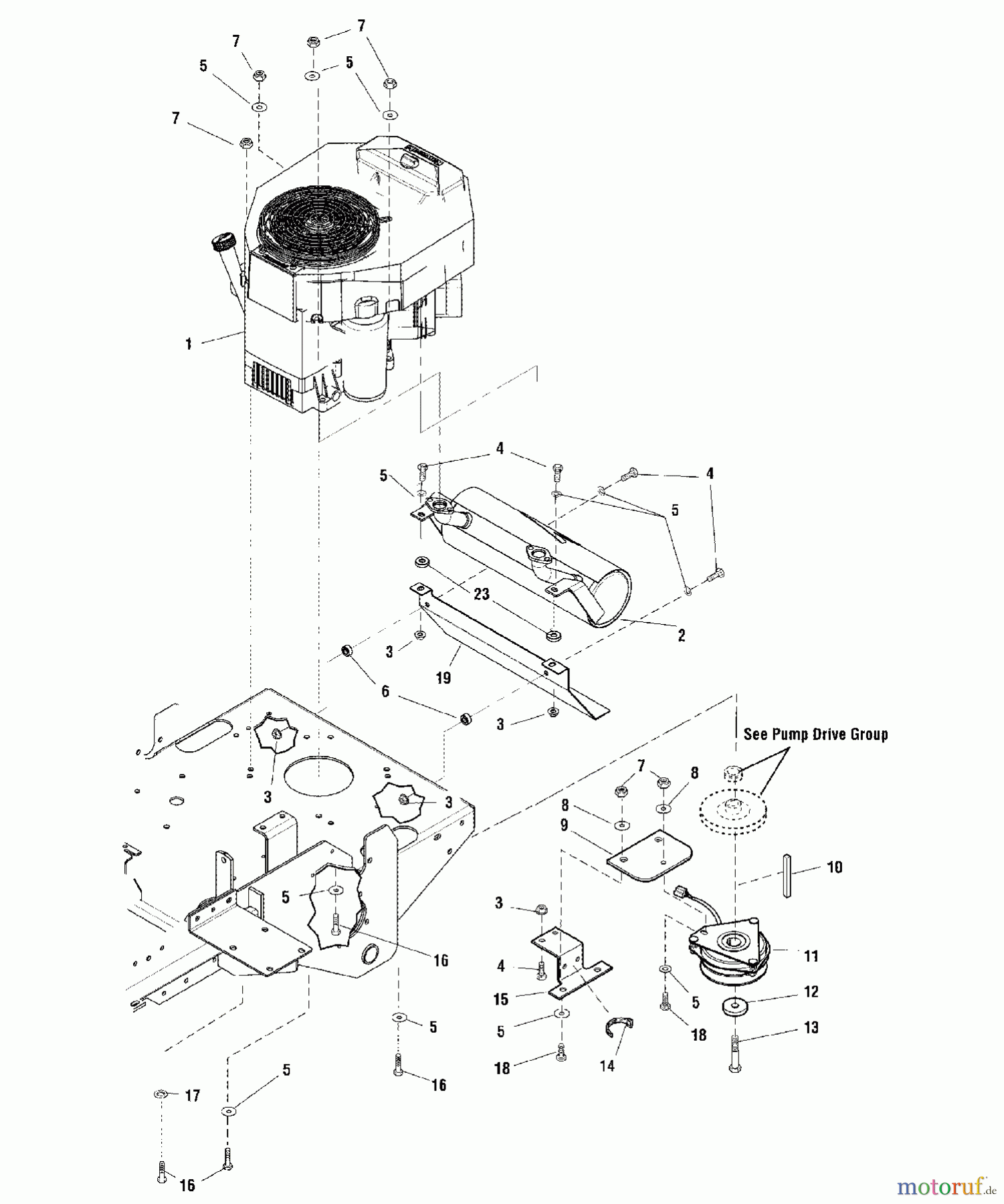

Engine & PTO Group - KAWASAKI ZT19441KWV (5900609) - Snapper 44" Zero-Turn Mower, 18 HP, ZTR FastCut Series 1

Snapper Nullwendekreismäher, Zero-Turn ZT19441KWV (5900609) - Snapper 44
PosizioneArticolo numeroDescrizione
1 BSFH580V-BS01-S
2 BS5101125YPMUFFLER, 19HP KAI
3 BS703115MUTTER
4 BS5025011X6SMBOLZEN, 5/16-18 X 3/4"
5 BS703302U-SCHEIBE, 5/16
6 BS5044933SMDISTANZRING, 39 X .75 X
7 BS7091298YPHLN, 5/16-18-3B YZ ES
8 BS5044617SMSCHEIBE, 34 X 1.25 X
9 BS5043636SMKUPPLUNG VERANKERUNG BLOCK
10 BS5050407X18SMKEY - 1/4 SQX2 1/4
11 BS5023100SMCLUTCH, # 51110100,EL
12 BS5042132SMSPACER, .45 X 1.62 X
13 BS5103300YPBOLT, CRANKSHAFT
14 BS5021030SM
15 BS5048226DYPANCHOR,CLUTCH
16 BS5025011X14SMBOLT, 5/16-18 X 1-3/4
17 BS5025188SMSCHEIBE, 5/16" SAE
18 BS5025011X8SMBOLZEN, 5/16-18 X 1" GD
19 BS5400870DYPSHIELD, MUFFLER, 19HP
20 BS5048681SMOLSCHLAUCH
21 BS5050833X6YPWIRE LOOM, 1/2 ID X
22 BS5021500SMKLEMME
23 BS5044960SMDISTANZRING, 39 X 1.00 X
