Snapper ZT18441KHC (5900608) - 44" Zero-Turn Mower, 18 HP, ZTR FastCut Series 1 Engine & PTO Group - KOHLER Ricambi

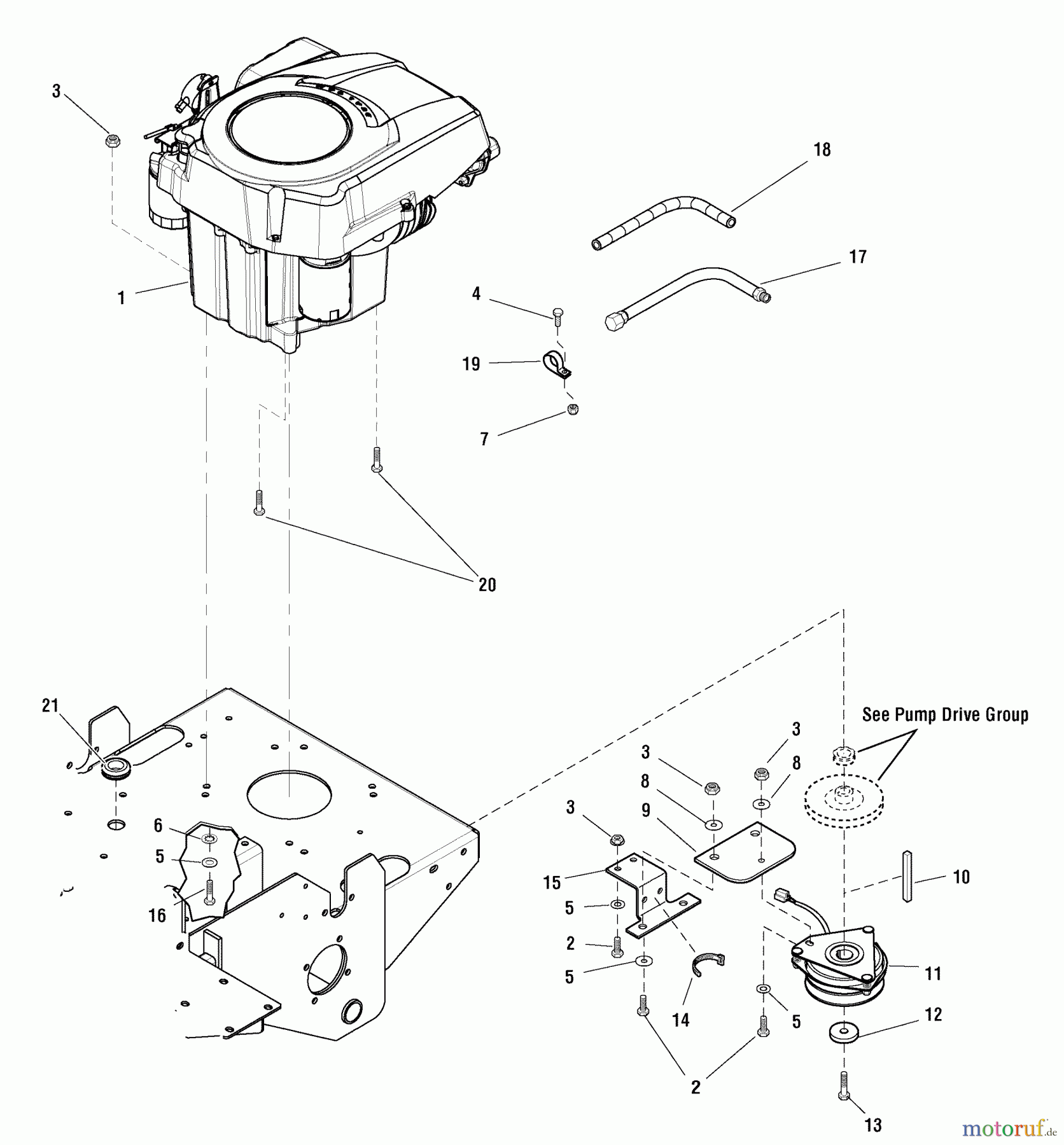

Engine & PTO Group - KOHLER ZT18441KHC (5900608) - Snapper 44" Zero-Turn Mower, 18 HP, ZTR FastCut Series 1

Snapper Nullwendekreismäher, Zero-Turn ZT18441KHC (5900608) - Snapper 44
PosizioneArticolo numeroDescrizione
1 BSSV540S, PS-552725
2 BS5025011X8SMBOLZEN, 5/16-18 X 1" GD
3 BS703115MUTTER
4 BS5025011X6SMBOLZEN, 5/16-18 X 3/4"
5 BS703302U-SCHEIBE, 5/16
6 BS5025188SMSCHEIBE, 5/16" SAE
7 BS703233MUTTER, 1/4-20, GR5
8 BS5044617SMSCHEIBE, 34 X 1.25 X
9 BS5043636SMKUPPLUNG VERANKERUNG BLOCK
10 BS5050407X18SMKEY - 1/4 SQX2 1/4
11 BS5023100SMCLUTCH, # 51110100,EL
12 BS5042132SMSPACER, .45 X 1.62 X
13 BS5103300YPBOLT, CRANKSHAFT
14 BS5021029SM
15 BS5048226DYPANCHOR,CLUTCH
16 BS5025011X14SMBOLT, 5/16-18 X 1-3/4
17 BS5048681SMOLSCHLAUCH
18 BS5050833X6YPWIRE LOOM, 1/2 ID X
19 BS5021500SMKLEMME
20 BS5100399SM
21 BS5023236SMGROMMET, 3/4
