Snapper ZT18440KH (5091000) - 44" Zero-Turn Mower, 18 HP, ZTR FastCut Series 0 Seat Kickplate Floor Group Ricambi

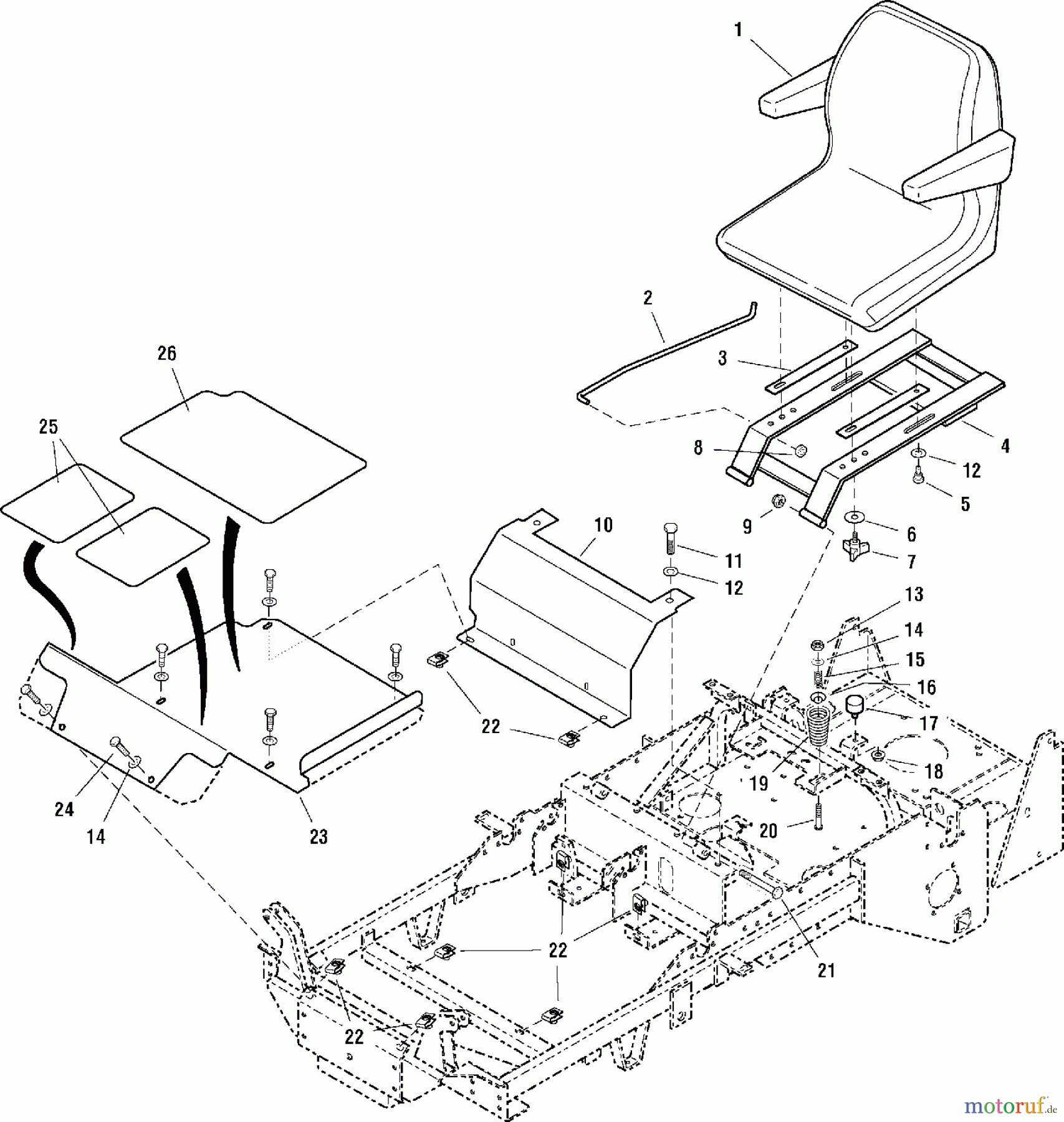

Seat Kickplate Floor Group ZT18440KH (5091000) - Snapper 44" Zero-Turn Mower, 18 HP, ZTR FastCut Series 0

Snapper Nullwendekreismäher, Zero-Turn ZT18440KH (5091000) - Snapper 44
PosizioneArticolo numeroDescrizione
1 BS5023184
2 BS5046470SM
3 BS4848365
4 BS4848117
5 BS5025385SM
6 BS7090692YPFW, 5/16 X 7/8 X .083
7 BS1700669SMKNOB
8 BS5020047SMMANSCHETTE 5/16 SET
9 BS5025096SMMUTTER, 3/8-16 HEX NYLON
10 BS4848218
11 BS5025013X16SMBOLZEN, 3/8-16 X 2" GD5
12 BS703590WASHER, FLAT, .406
13 Snapper MUTTER, 5/16-18BS703902MUTTER, 5/16-18
14 BS703302U-SCHEIBE, 5/16
15 BS1714263SMFEDER 0.40
16 BS1729256
17 BS5022673SM
18 BS703233MUTTER, 1/4-20, GR5
19 BS1717051SMFEDER 947
20 BS1931339SMBOLZEN 5/16
21 BS5025013X32SMBOLT, 3/8-16 X 4" GD5
22 BS3022308
23 BS4848338
24 BS5025011X6SMBOLZEN, 5/16-18 X 3/4"
25 BS5101005SM
26 BS5048964SM
