Snapper ZT18440KH (5091000) - 44" Zero-Turn Mower, 18 HP, ZTR FastCut Series 0 Fuel Tank Mount Group Ricambi

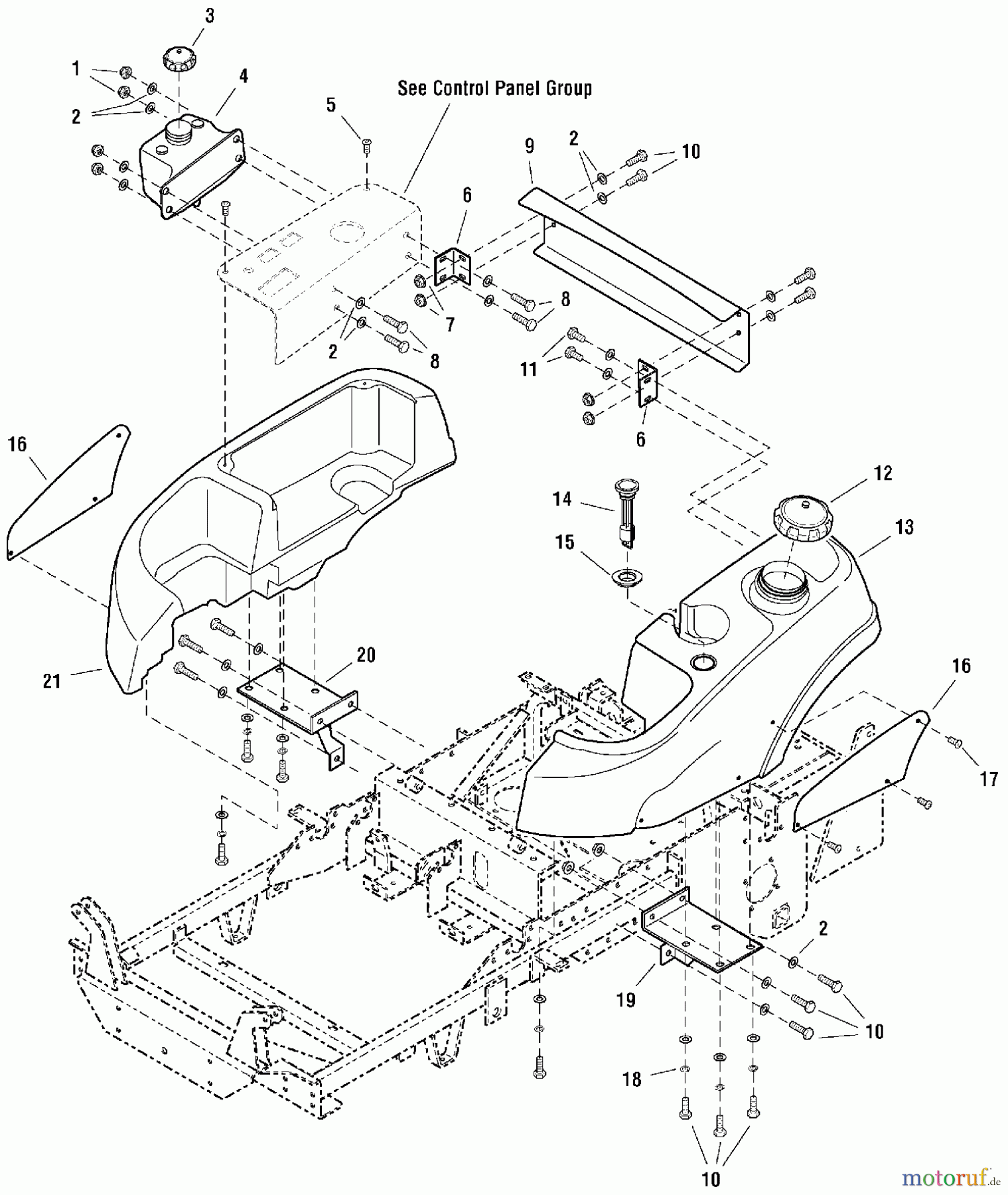

Fuel Tank Mount Group ZT18440KH (5091000) - Snapper 44" Zero-Turn Mower, 18 HP, ZTR FastCut Series 0

Snapper Nullwendekreismäher, Zero-Turn ZT18440KH (5091000) - Snapper 44
PosizioneArticolo numeroDescrizione
1 Snapper MUTTER, 5/16-18BS703902MUTTER, 5/16-18
2 BS703302U-SCHEIBE, 5/16
3 BS5023191SMCAP, HYDRAULIC RESERV
4 BS5023185YPUSE 5061257 - HYDRAUL
5 BS5025299X4SMSCHRAUBE, 1/4-20 X 1/2"
6 BS5048763DYPHALTER, HINTEN
7 BS5025139SMMUTTER, 5/16-18 SECHSK.
8 BS5025011X8SMBOLZEN, 5/16-18 X 1" GD
9 BS5048765DYPPLATE,REAR TANK SUPPO
10 BS5025011X6SMBOLZEN, 5/16-18 X 3/4"
11 BS5025011X5YPBOLT, 5/16-18 X 5/8 G
12 BS5101651SMTANKDECKEL BELUFTET
13 BS5102544YPTANK, FUEL - LH, CONZ
BS5023061SMFITTING, ELBOW
BS1654930SMVENTILDECKEL
BS5101217SMFUEL HOSE ASSY - 20"
BS5023069SMCLAMP, HOSE INTERNAL,
BS5023067SMFITTING, SCREEN
14 BS5023197SMANZEIGE, TANKANZEIGE
15 BS5022917X1SMTULLE
16 BS5048909DYPSCHILD, KRAFTSTOFFT. EMBL.
17 BS5025386SMSCHRAUBE, #10-24 X 3/8
18 BS5025170SMSICHERUNGSSCHEIBE, 5/16"
19 BS5048704DYPWELD,BRACKET,FUEL TAN
20 BS5048705DYPWELD,BRACKET,FUEL TAN
21 BS5048752SMKRAFTST.TANK
