Snapper ZT18440KH (5091000) - 44" Zero-Turn Mower, 18 HP, ZTR FastCut Series 0 Engine & PTO Group - 18HP Kohler Ricambi

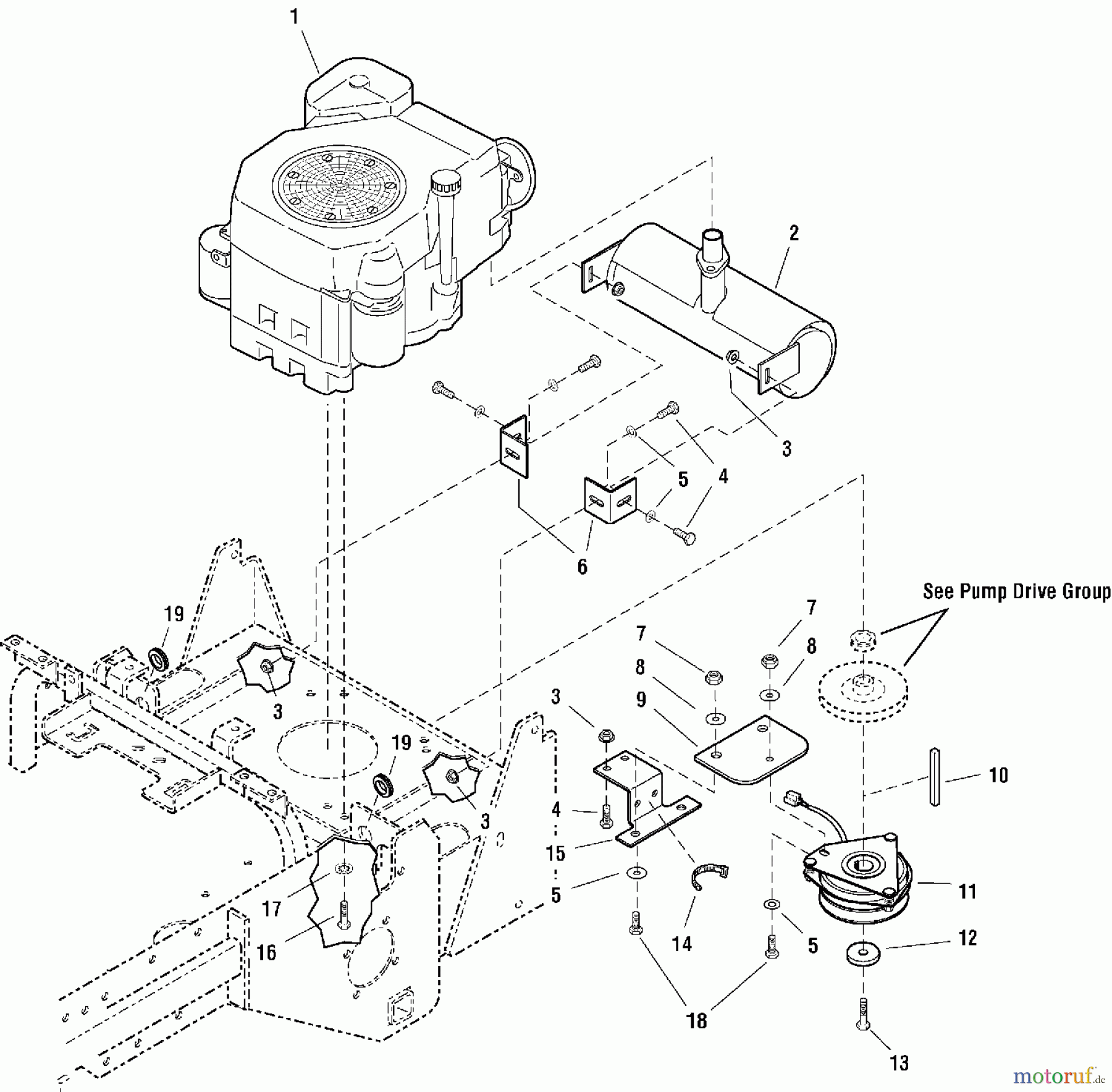

Engine & PTO Group - 18HP Kohler ZT18440KH (5091000) - Snapper 44" Zero-Turn Mower, 18 HP, ZTR FastCut Series 0

Snapper Nullwendekreismäher, Zero-Turn ZT18440KH (5091000) - Snapper 44
PosizioneArticolo numeroDescrizione
1 BSPS-27523, CV-493S-1
2 BS5023186SM
3 BS5025139SMMUTTER, 5/16-18 SECHSK.
4 BS5025011X6SMBOLZEN, 5/16-18 X 3/4"
5 BS703302U-SCHEIBE, 5/16
6 BS503848262
6 BS504848262
7 Snapper MUTTER, 5/16-18BS703902MUTTER, 5/16-18
8 BS7091098
9 BS5043636SMKUPPLUNG VERANKERUNG BLOCK
10 BS5050407X18SMKEY - 1/4 SQX2 1/4
11 BS5023100SMCLUTCH, # 51110100,EL
12 BS5042132SMSPACER, .45 X 1.62 X
13 BS5103300YPBOLT, CRANKSHAFT
14 BS5021030SM
15 BS5048226C
15 BS5048226DYPANCHOR,CLUTCH
16 BS5025353SM
17 BS5025188SMSCHEIBE, 5/16" SAE
18 BS5025011X8SMBOLZEN, 5/16-18 X 1" GD
19 BS5023236SMGROMMET, 3/4
