Twin Stick Control Assembly ZMT2500KH (84414) - Snapper 25 HP Zero-Turn Mower, Kohler, Twin Stick, Mid Mount, Z-Rider Series 0

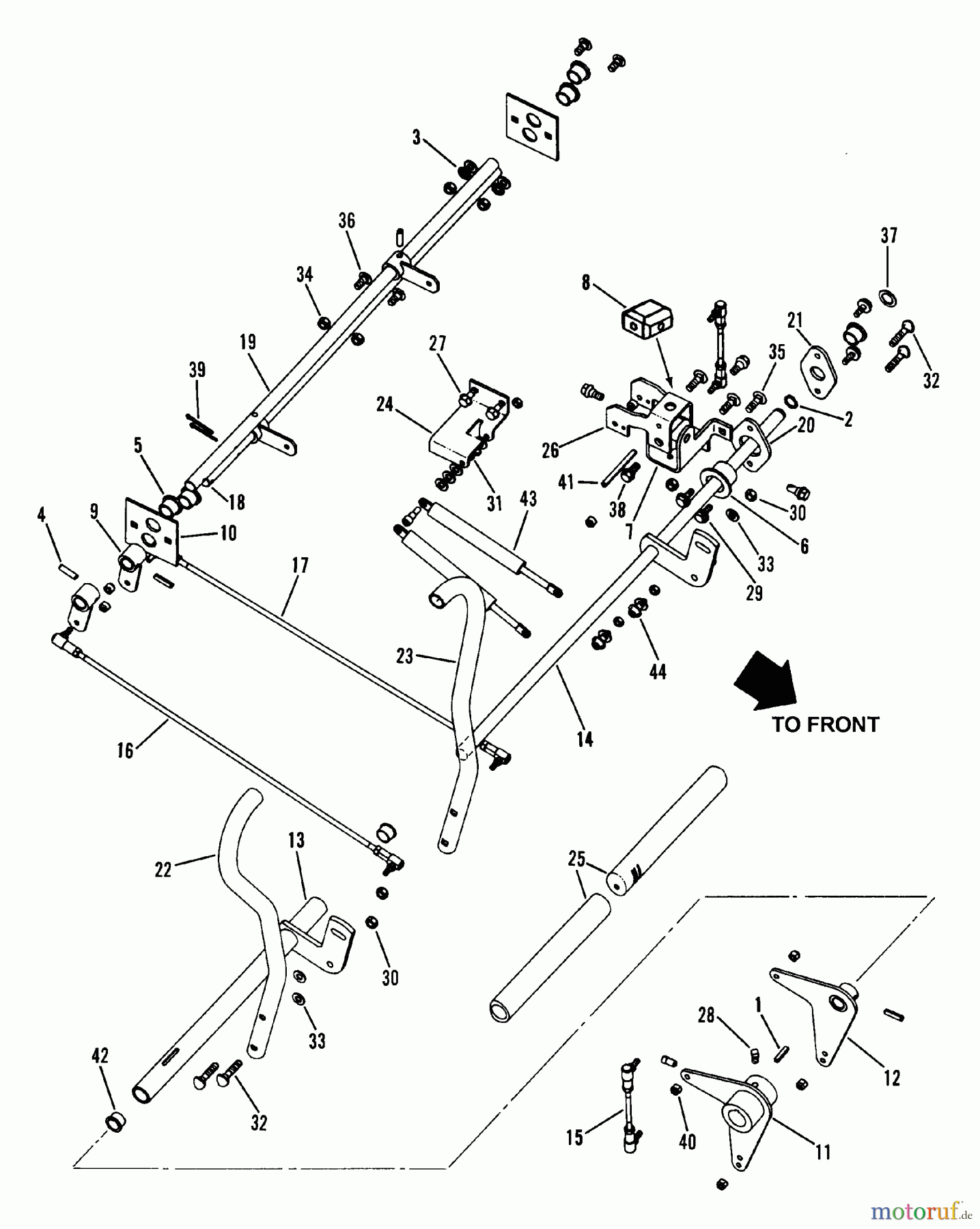

Snapper Nullwendekreismäher, Zero-Turn ZMT2500KH (84414) - Snapper 25 HP Zero-Turn Mower, Kohler, Twin Stick, Mid Mount, Z-Rider Series 0 Twin Stick Control Assembly
PosizioneArticolo numeroDescrizione
1 BS7010061SM
2 BS7010739SMRETAINING RING, EXT,
3 BS703297RETAINER, GR5, 5/16
4 BS7013072YPROLL PIN, 1/4X1 ZP
5 BS7013874SM(S) BUCHSE, ST, PM
6 BS7023556YPBUSHING, CASTER
7 BS7035532YP(C) BRKT, JOYSTICK MO
8 BS7035533YPPIVOT, JOYSTICK CONTR
9 BS7042638YP(C) WELD, ARM / HUB,
10 BS7073060YP(C) PLATE, BUSHING, Y
11 BS7058108YP(C) WELD, CONTROL, BE
12 BS7058109YP(C) WELD, CONTROL, BE
13 BS7058110YP(C) WELD, CONTROL, RH
14 BS7058111YP(C) WELD, CONTROL, LH
15 BS7058115
16 BS7058116
17 BS7058117
18 BS7071944
19 BS7071945
20 BS7071959YP(C) PLATE, BEARING, R
21 BS7073061YP(C) PLATE, BEARING MT
22 BS7071964YP(C) ARM, TWIN STICK C
23 BS7072022YP(C) ARM, TWIN STICK C
24 BS7072047YP(C) BRKT, DAMPENER MT
25 BS7072212YPGRIP, TWIN STICK
26 BS7072442YP(C) BRKT, BRAKE / NEU
27 BS703949SCHRAUBE, 5/16-18.625
28 BS7090848SMSHSS, 5/16C X1/2
29 BS703456BOLZEN, 1/4-20X5/8, GR5
30 BS703164MUTTER
31 BS703954
32 BS704063BOLT,HEX,5/16-18X1.5
33 BS703350U-SCHEIBE, 5/16
34 Snapper MUTTER, 5/16-18BS703902MUTTER, 5/16-18
35 BS7091303YPRHSSNB, 5/16CX1 GR5
36 BS703185RHSSNB
37 BS7091628SMFW, .64X.99X.05 YZ
38 BS7091800
39 BS7091809YPPIN, COTTER 1/8 X 1.2
40 BS7091812YPMUTTER, NYLON
41 BS7091816YP(C) ROLL PIN, 1/4X2-3
42 BS7072934SM
43 BS7092009YP(C) CYLINDER, DAMPENE
44 BS7092010YP(C) SCREW, SHOULDER,
