Snapper ZF2501KH (84574) - 25 HP Zero-Turn Mower, Out Front, Z-Rider Series 1 Seat Support Assembly Ricambi

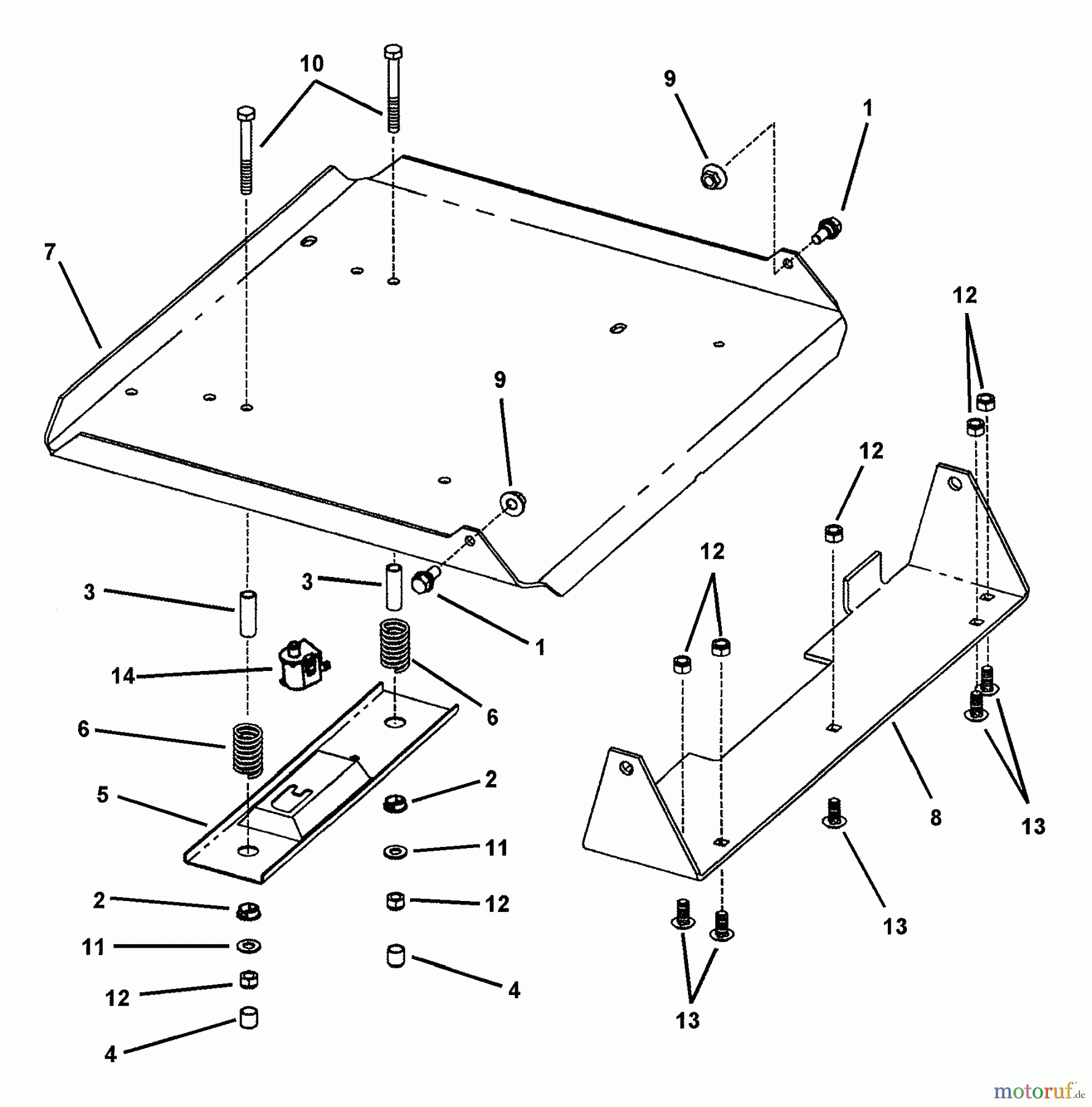

Seat Support Assembly ZF2501KH (84574) - Snapper 25 HP Zero-Turn Mower, Out Front, Z-Rider Series 1

Snapper Nullwendekreismäher, Zero-Turn ZF2501KH (84574) - Snapper 25 HP Zero-Turn Mower, Out Front, Z-Rider Series 1 Seat Support Assembly
PosizioneArticolo numeroDescrizione
1 BS7015761YPPASSSCHRAUBE, 5/16- 1
2 BS7022793YPBUSHING, SEAT
3 BS7022794YPSPACER, YEL
4 BS7023606YPCAP, VINYL
5 BS7033362YPHOLDER, SEAT SWITCH
6 BS7092007YP(C) SPRING, COMPRESSI
7 BS7072015YP(C) PLATE, SEAT SUPPO
8 BS7072034YP(C) BRKT, SEAT HINGE
9 BS704001NUT, 5/16-18
10 BS7091046YPHHCS, 5/16C X2-1/2 GR
11 BS703350U-SCHEIBE, 5/16
12 Snapper MUTTER, 5/16-18BS703902MUTTER, 5/16-18
13 BS703185RHSSNB
14 BS7023354YPSWITCH, SEAT
