Snapper ZF2501KH (84574) - 25 HP Zero-Turn Mower, Out Front, Z-Rider Series 1 Lower Chassis/Caster Wheel Assembly Ricambi

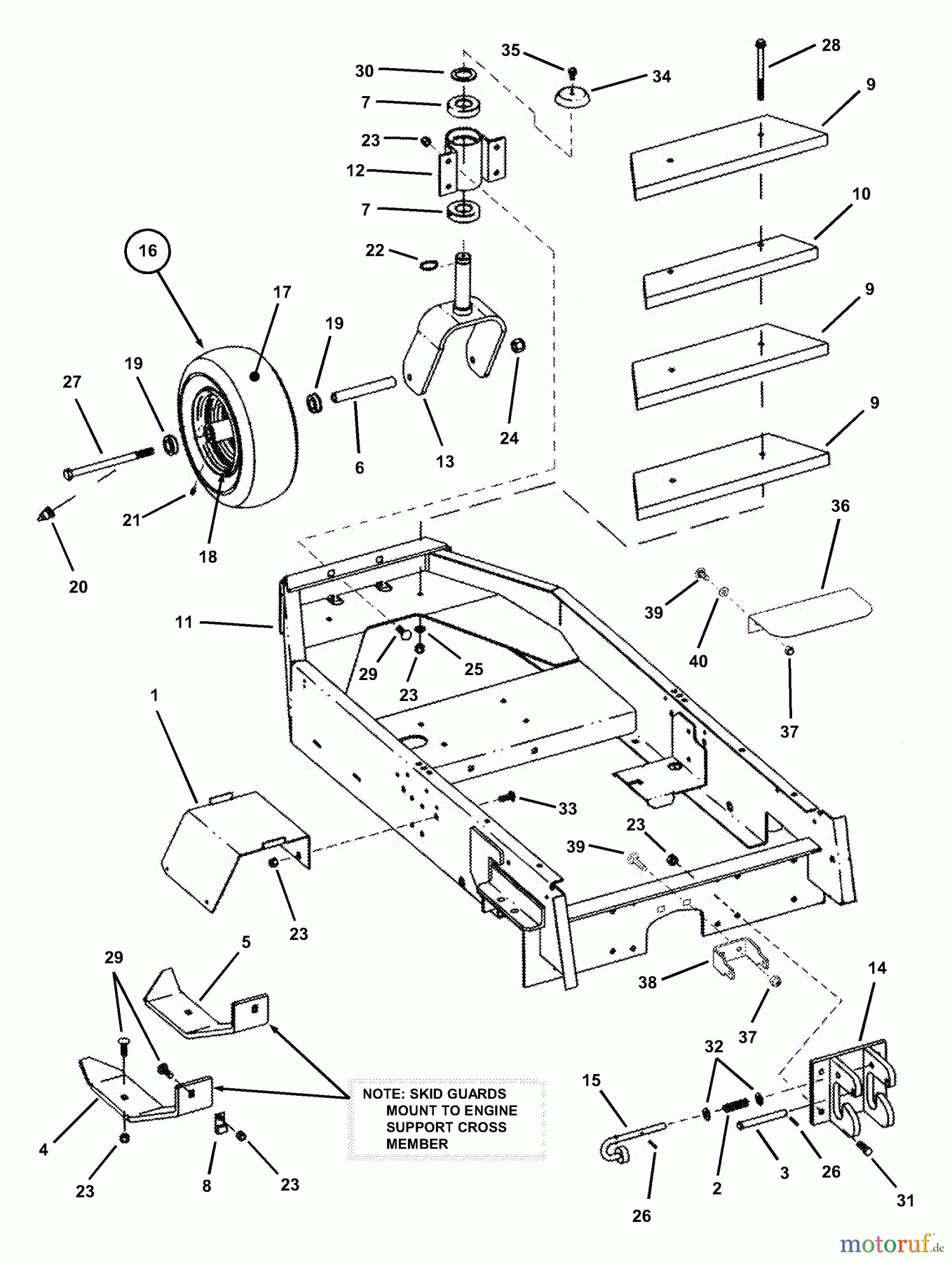

Lower Chassis/Caster Wheel Assembly ZF2501KH (84574) - Snapper 25 HP Zero-Turn Mower, Out Front, Z-Rider Series 1

Snapper Nullwendekreismäher, Zero-Turn ZF2501KH (84574) - Snapper 25 HP Zero-Turn Mower, Out Front, Z-Rider Series 1 Lower Chassis/Caster Wheel Assembly
PosizioneArticolo numeroDescrizione
1 BS7036406
2 BS7014432YPSPRING
3 BS7029074YPCLEVIS PIN, 1/2X4 YZ
4 BS7046968YP(C) PLATE, SKID
5 BS7072827
6 BS7035476YPSPACER, .749 OD
7 BS7035602YPBEARING, 30MM X 6
8 BS7035638YP(C) CLIP, OPEN J 3/8
9 BS7074562
10 BS7074563YPCOUNTERWEIGHT, SMALL,
11 BS7042589YP(C) WELD, LOWER CHASS
12 BS7061966YP(C) CASTER KIT, WIDE-
13 BS7042591YP(C) WELD, CASTER YOKE
14 BS7042628YP(C) WELD, HITCH PLATE
15 BS7042629YP(C) WELD, HITCH SPRIN
16 BS7054087
17 BS7035474YP(C) TIRE, 13X5-6 4 PL
18 BS7035475
19 BS7028722YPBEARING,FT WHEEL
20 BS7012234SMVALVE STEM
21 BS703153ZERK,GREASE FITTING
22 BS7010965YPSICHERUNGSRING
23 BS703117MUTTER
24 BS7091325YPHLN, NYLON, 1/2C YZ
25 BS703878WASHER, FLAT
26 BS7091598SMCOTTER PIN, 1/8X3/4 Y
27 BS7091773YP(C) HHCS, 1/2C X7 GR5
28 BS7091786YP(C) HFB, 3/8C X4-3/4
29 BS703130BOLZEN
30 BS7091795YPFW, 1.25X1.875X.125
31 BS703871KOPFSCHRAUBE,3/8-16X1.25
32 BS703183WASHER, 7/16 ID X.065
33 BS703814BOLT, RD HD, 3/8-16X1
34 BS7036578YPCAP, CASTER SHAFT
35 BS703949SCHRAUBE, 5/16-18.625
36 BS7042777
37 BS7091299
38 BS7073276
39 BS7027181YPRHSNB, 3/8C X1-1/
40 BS703986RETAINER, PUSHNUT,3/8
