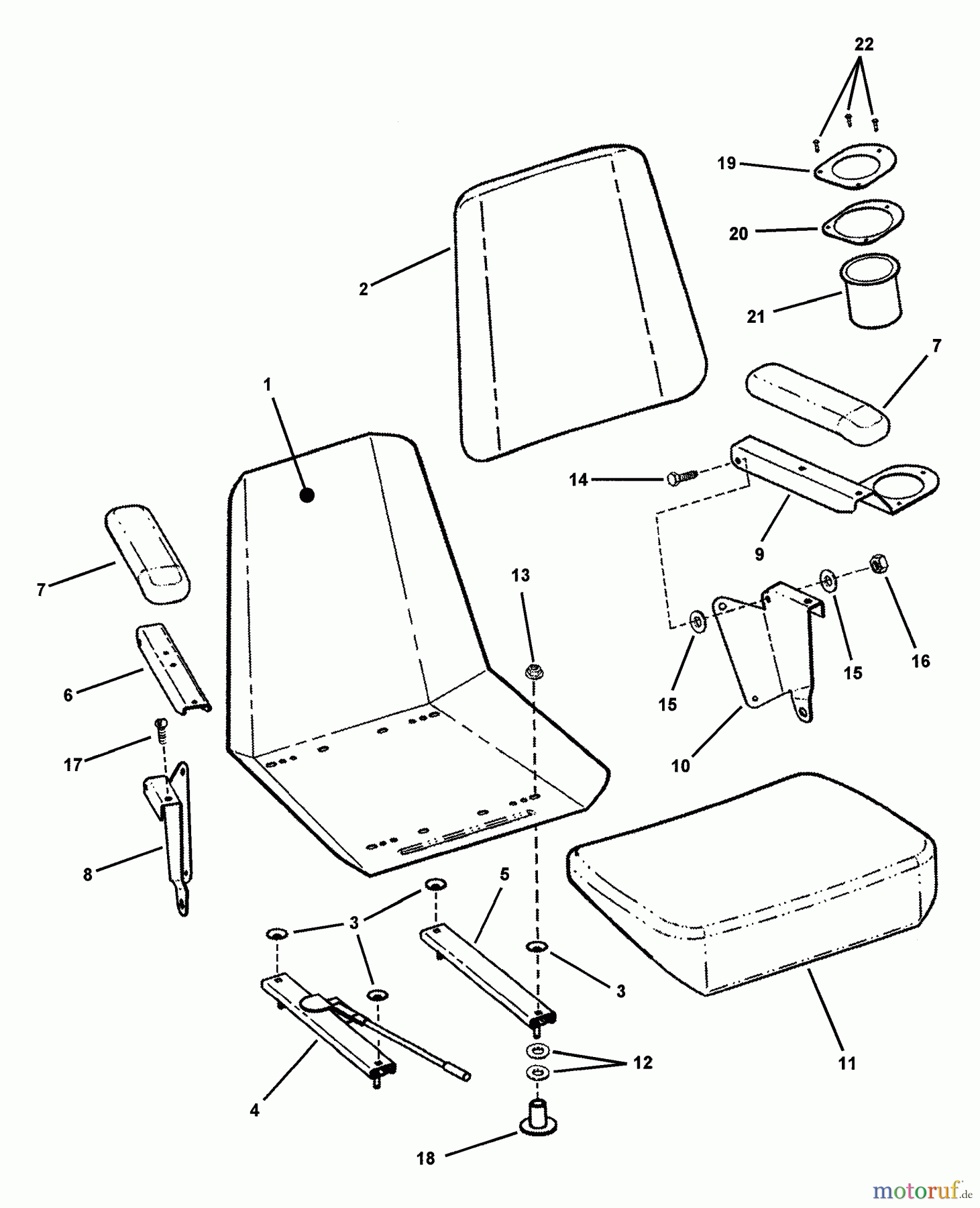

Seat Assembly P/N 54117 ZF2301GKU (84576) - Snapper 23 HP Zero-Turn Mower, Kubota, Out Front, Z-Rider Series 1

Snapper Nullwendekreismäher, Zero-Turn ZF2301GKU (84576) - Snapper 23 HP Zero-Turn Mower, Kubota, Out Front, Z-Rider Series 1 Seat Assembly P/N 54117
PosizioneArticolo numeroDescrizione
1 BSEingangswelle UE 600
2 BS7036477YP(C) CUSHION, SEAT, BA
3 BS7036486YPSPACER, BELL
4 BS7036484
5 BS7036485YP(C) SEAT SLIDE ADJUST
6 BS7036478YP(C) ARMREST CHANNEL
7 BS7036479
8 BS7035567YP(C) BRKT, ARMREST, RH
9 BS7044904
10 BS7035568YP(C) BRKT, ARMREST, LH
11 BS7036476
12 BS703350U-SCHEIBE, 5/16
13 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
14 BS703867KOPFSCHRAUBE,5/16-18 X 2
15 BS7035797YP(C) WASHER, 3/8 ID PO
16 BS703164MUTTER
17 BS7090683YPPHMS, SLOTTED, 5/16C
18 BSEingangswelle UE 600
19 BS7044903YP(C) COVER, CUPHOLDER
20 BS7044902YP(C) SPACER, CUPHOLDER
21 BS7042968
22 BS7091919YP(C) RIVET, PANHEAD, 3
BS7054117YP(C) SEAT
