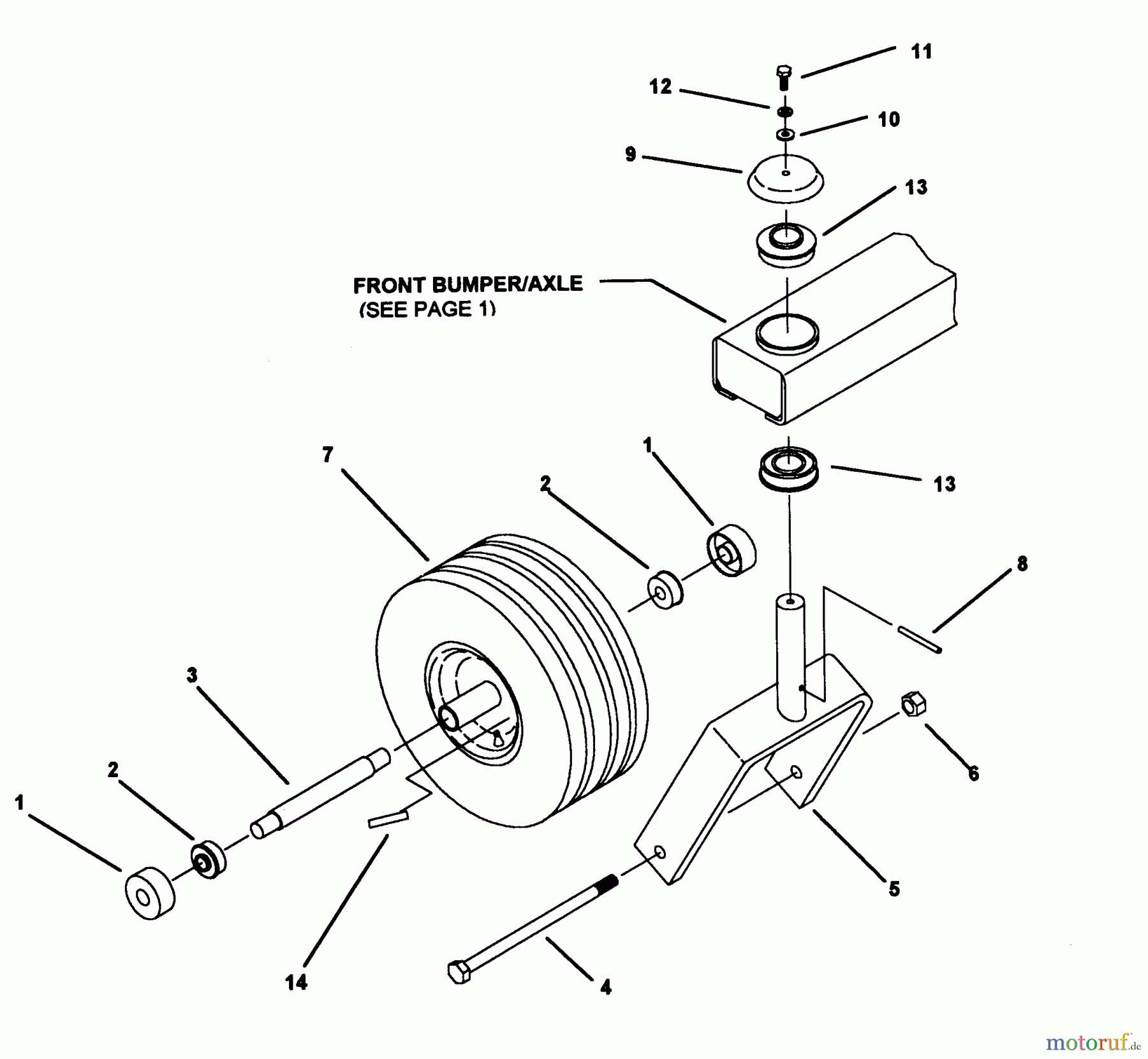

Caster Wheel Assembly Z1805KV (80919) - Snapper 18 HP Zero-Turn Mower, Hydro Drive, ZTR Series 5

Posizione		Articolo numero	Descrizione
1		BS7079357YP	(C) SHIELD, BEARING
2		BS7010756YP	KUGELLAGER
3		BS7079358
4		BS7079363YP	(C) HHCS, 1/2C X8 GR5
5		BS7079684YP	(C) CASTER WELD.
6		BS7079262YP	(C) NUT, HEX, STOVER,
7		BS7079171
8		BS7079285YP	(C) PIN, SPIROL 3/16X
9		BS7017420YP	ELBOW, 3/8ST90
10		BS7091294
11		BS7062472
12		BS7090052SM	SLW, .256X.487X.062 Z
13		BS7079331
14		BS7062485
