Snapper Z1402K (80184) - 14 HP Zero-Turn Mower, Hydro Drive, ZTR Series 2 14 H.P. Engine Assembly Ricambi

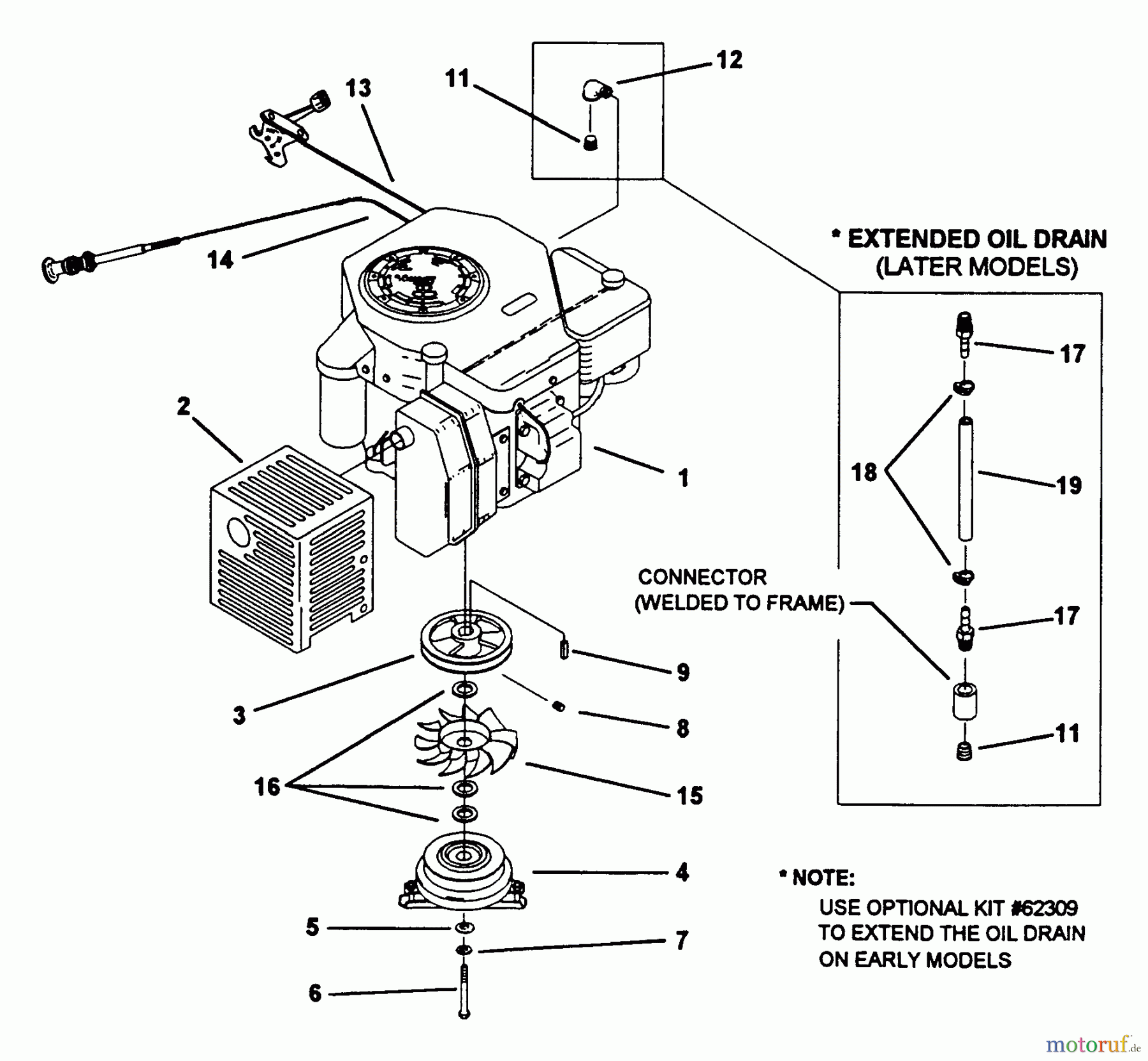

14 H.P. Engine Assembly Z1402K (80184) - Snapper 14 HP Zero-Turn Mower, Hydro Drive, ZTR Series 2

Snapper Nullwendekreismäher, Zero-Turn Z1402K (80184) - Snapper 14 HP Zero-Turn Mower, Hydro Drive, ZTR Series 2 14 H.P. Engine Assembly
PosizioneArticolo numeroDescrizione
1 BSEingangswelle UE 600
2 BS7079891YP(C) MUFFLER GUARD WEL
3 BS7079736
4 BS7079446YP(C) CLUTCH, ELECTRIC
5 BS7079022YP(C) WASHER, 15/32"ID
6 BS7062264
BS7079830
7 BS704007LCKWSHR,7/16,SPLIT RE
8 BS7079823YP(C) SHSS, 5/16C X3/8
9 BS5050407X8SM
?10 BS7079237YP(C) DECAL, CLEAN
11 BS7079367YPPIPE PLUG, 3/8
12 BS7017420YPELBOW, 3/8ST90
13 BS7079865YP(C) THROTTLE CABLE, 1
14 BS7079866YP(C) CABLE, CHOKE, 12H
15 BS7062236
16 BS7062242
17 BS7062296YP(C) BARB, HOSE, 3/8BA
18 BS7079861YP(C) CLAMP, HOSE, NYLO
19 BS7062288YPHOSE, 8
