Snapper SZT18386BVE (85680) - 38" Zero-Turn Mower, 18 HP, Twin Stick, ZTR Series 6 ENGINE COMPONENTS Ricambi

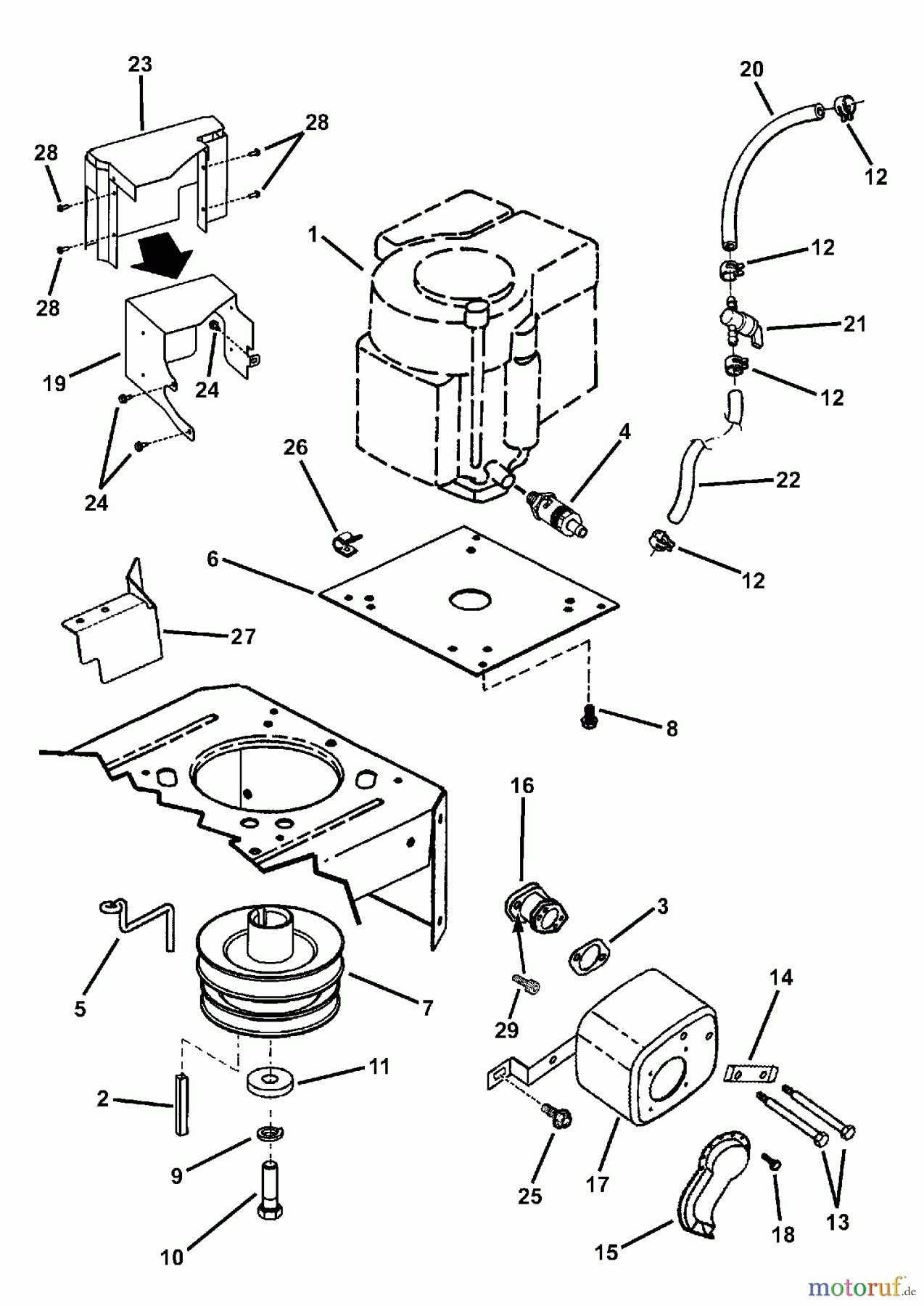

ENGINE COMPONENTS SZT18386BVE (85680) - Snapper 38" Zero-Turn Mower, 18 HP, Twin Stick, ZTR Series 6

Snapper Nullwendekreismäher, Zero-Turn SZT18386BVE (85680) - Snapper 38
PosizioneArticolo numeroDescrizione
1 BSEingangswelle UE 600
BSEingangswelle UE 600
2 BS7010210SMKEY, SQUARE, 1/4X2
3 BS7015352SMGASKET, EXHAUST
4 BS7027972SMOIL VALVE ASSY.
5 BS7035362YPBELT GUIDE, HZR
6 BS7036389YPPLATE, ENGINE, HOZ
7 BS7040706YPENGINE PULLEY ASSY.
8 BS7090324SMHWST, 3/8C X1 BZ
9 BS704007LCKWSHR,7/16,SPLIT RE
10 BS7091763YPHHCS, 7/16F X1-1/2
11 BS7091807
12 BS7029900SMKLEMME 490 X .31
13 BS7024161YPBOLT, CARRIAGE
14 BS7024566
15 BS7041537YPSPOT MUF DEFLECTOR
16 BS7071756
17 BS7074826YPMUF, 15HP BRIGGS ENG
18 BS7091581YPSTS, #8-18 X1/2 YZ
19 BS7041340YPSPOT WELD, HEAT SHIEL
20 BS7029982SMHOSE, FUEL, 1/4 ID X
21 BS7016325SMVALVE, FUEL
22 BS7012638YPHOSE, FUEL, B&S
23 BS7041639YPWELD, HEAT SHIELD, B1
24 BS7091122
25 BS7090606SMHFLB, 5/16C X5/8 ZP
26 BS7015861SM
27 BS7071760YPHEAT SHIELD, FENDER
28 BS704060SCREW,HEX, #10-24X.5
29 BS7091738SMSHCS, 5/16C X3/4 GR8
