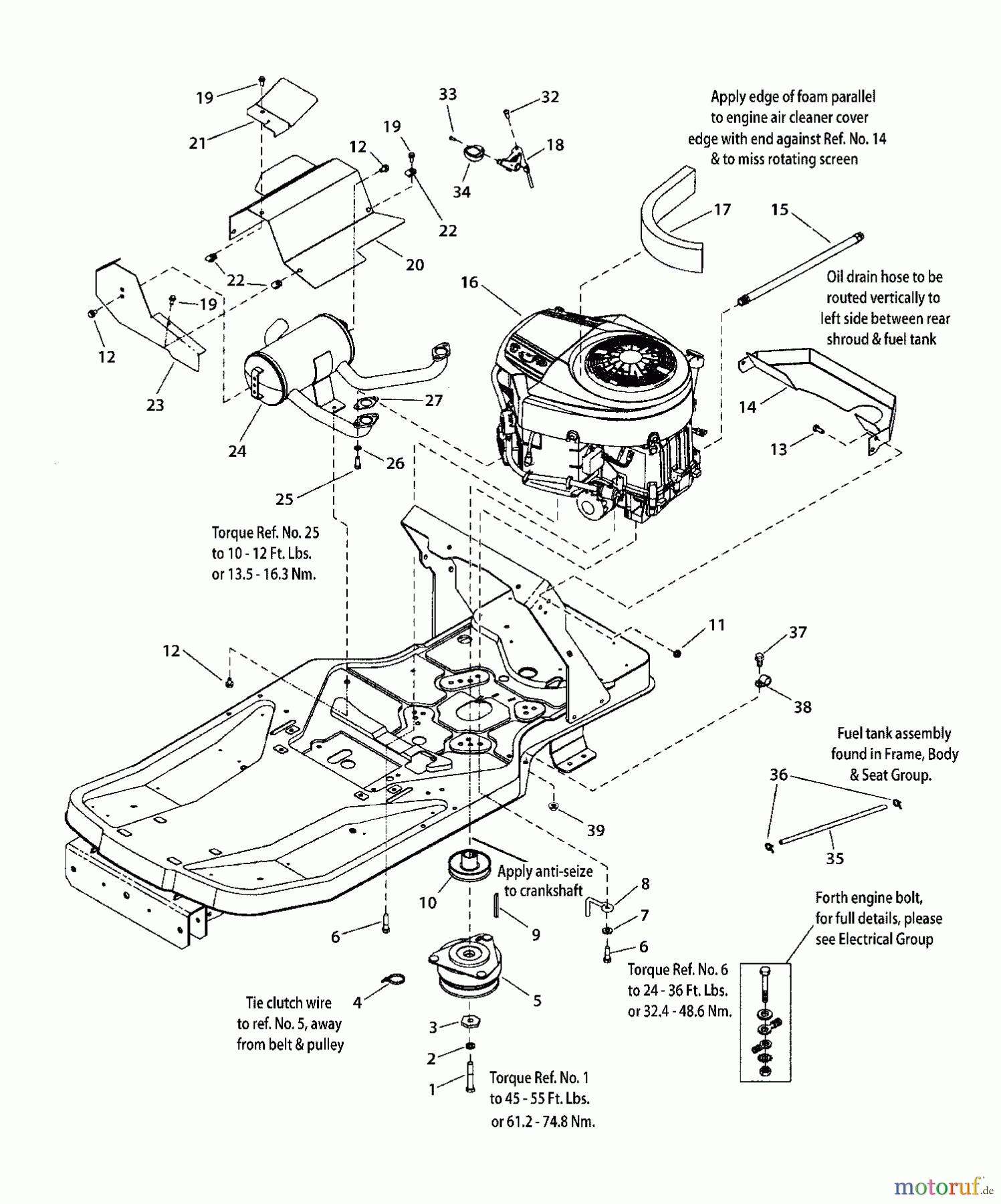

Snapper SC26520 (7800630) - 52" Zero-Turn Mower, 26HP, Twin Stick, ZTR 150Z Series Engine Group, 26 HP B&S, PRO Ricambi

Engine Group, 26 HP B&S, PRO SC26520 (7800630) - Snapper 52" Zero-Turn Mower, 26HP, Twin Stick, ZTR 150Z Series

Snapper Nullwendekreismäher, Zero-Turn SC26520 (7800630) - Snapper 52
PosizioneArticolo numeroDescrizione
1 BS7027266SMSECHSKANTSCHR. HD
2 BS704007LCKWSHR,7/16,SPLIT RE
3 BS1708264SMUNTERLAGSCHEIBE
4 BS2832747SMZUGELEMENT SELBSSCHL. 09W
5 BS1687746YPKIT, ELECTRIC CLUTCH
6 BS2828635SMSCHRAUBE
7 BS703878WASHER, FLAT
8 BS7101717SMARRETIERUNG KUPPL.
9 BS2154096SMSCHLUSSELGEGENST.
10 BS7101716SMRIEMENSCH. MOTOR
11 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
12 BS1924856SMSCREW - HEX WASHER HD
13 BS1921332SMCAPSCREW - HEX HD
14 BS1733414ASMLUFTKANAL EINL. B&S
15 BS1726498SMOLSCHLAUCH .375ID
16 BS44P777-0167-B1
16 BS44P777-2167-G1
17 BS1734169SMFORMDICHTUNG-LUFTKANAL
18 BS7103123YPGASHEBEL KOMPL.
19 BS1960295SMSCREW-HEX WZ LOCK FL
20 BS1734246ASMSCHALLDAMPFERSCHUTZ
21 BS1728017SMSCHUTZSCHILD GAS
22 BS1960368SMNUT-SPEED 1/4-20 LUG
23 BS1727939ASMHITZESCHILD SEITL. B&S
24 BS1734061SMSCHALLDAMPFER B&S 24HP
25 BS1936228SMSECHSKANTSCHR. SKT HD
26 BS703116LCKWSHR
27 BS1731214SMGASKET-EXHAUST B&S RE
32 BS7090999SMSternantriebSCHRAUBE 1/4C X5/8
33 BS7091195SMPHST, COMBO, #10-16 X
34 BS1725337SMGRIFF GAS
35 BS1734995SMBENZINSCHLAUCH 19.5
36 BS7029900SMKLEMME 490 X .31
37 BS9357MASCHRAUBE, 5/16-18X .75WD
38 BS7900020SMKABELCLIP 5/8
39 BS1932377
