Snapper RZT27460 (7800767) - 46" Zero-Turn Mower, 27 HP, RZT Twin Stick 285Z Series Front Axle Group, RZT 27460 Ricambi

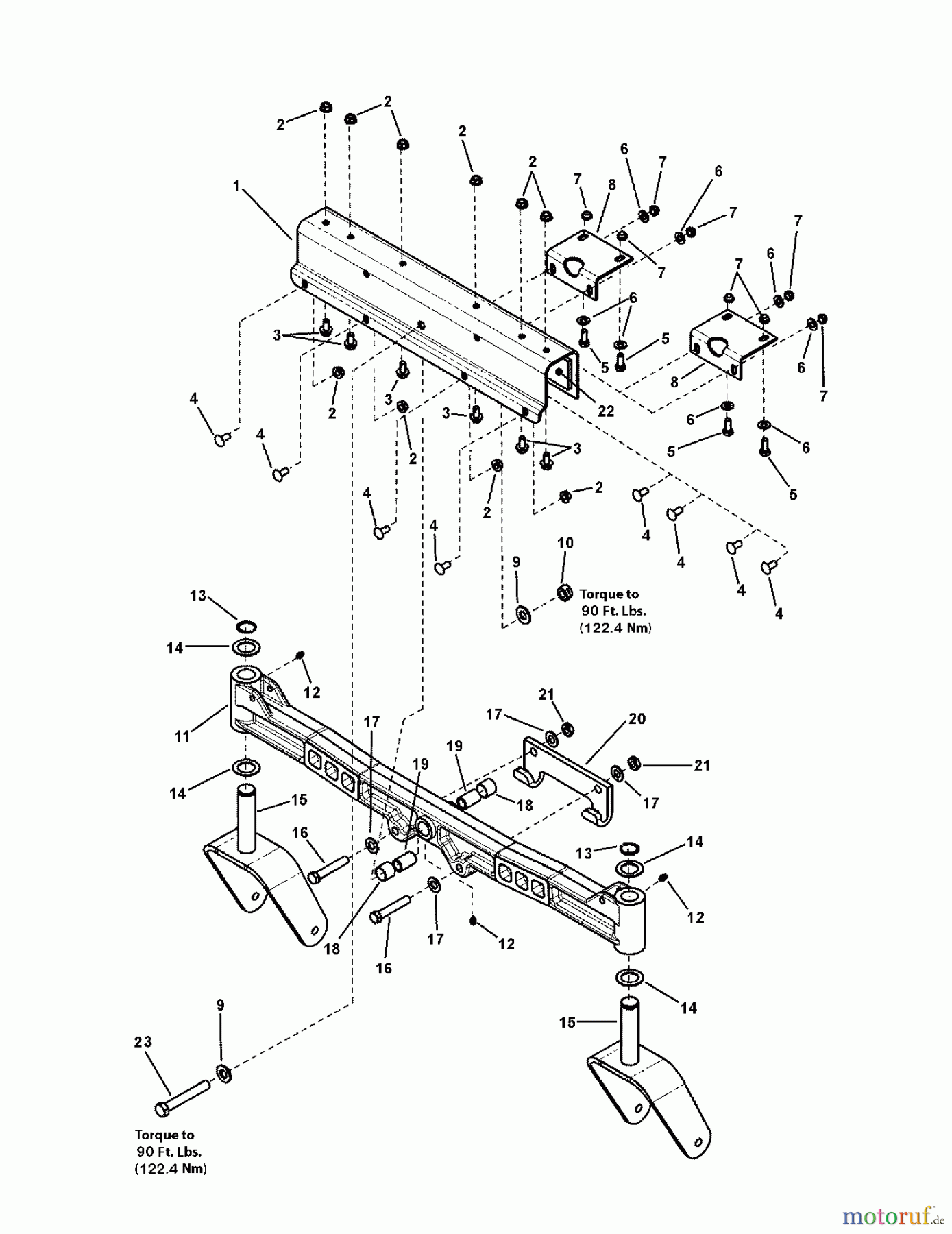

Front Axle Group, RZT 27460 RZT27460 (7800767) - Snapper 46" Zero-Turn Mower, 27 HP, RZT Twin Stick 285Z Series

Snapper Nullwendekreismäher, Zero-Turn RZT27460 (7800767) - Snapper 46
PosizioneArticolo numeroDescrizione
1 BS7078126DYPBRKT, AXLE
2 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
3 BS7091811SMHFLB, 5/16C X5/8 GR5
4 BS703185RHSSNB
5 BS7091318
6 BS703350U-SCHEIBE, 5/16
7 BS7091706SMHTLN, 5/16C
8 BS7300004BMYPHALTER, ACHSAUFNAHME
9 BS7091587SMUNTERLAGSCHEIBE, .531X1.062X.1
10 BS703894NUT, CNTR LCK, 1/2-13
11 BS7078124DYPAXLE, CAST, FRONT
12 BS7013864SMLUBE FITTING, 3/16 PR
13 BS7012709YPRETAINING RING, 1" OD
14 BS7013855SM(S) WASHER, THRUST
15 BS7400191DYPWELD, PIVOT YOKE, CAS
16 BS7091703SM
17 BS703183WASHER, 7/16 ID X.065
18 BS7012706SMBEARING, SLEEVE, .875
19 BS7011309SM
20 BS1721918ASMHAKEN-J SCHWARZ
21 BS703348MUTTER,7/16-20
22 BS7103773YPPLATE, FRICTION
23 BS7091558SMHHCS, 1/2C X3-1/2 YZ
