Snapper RZT21420 (7800795) - 42" Zero-Turn Mower, 21 HP, RZT Twin Stick Series 285Z Frame Assembly & Rear Bumper Group Ricambi

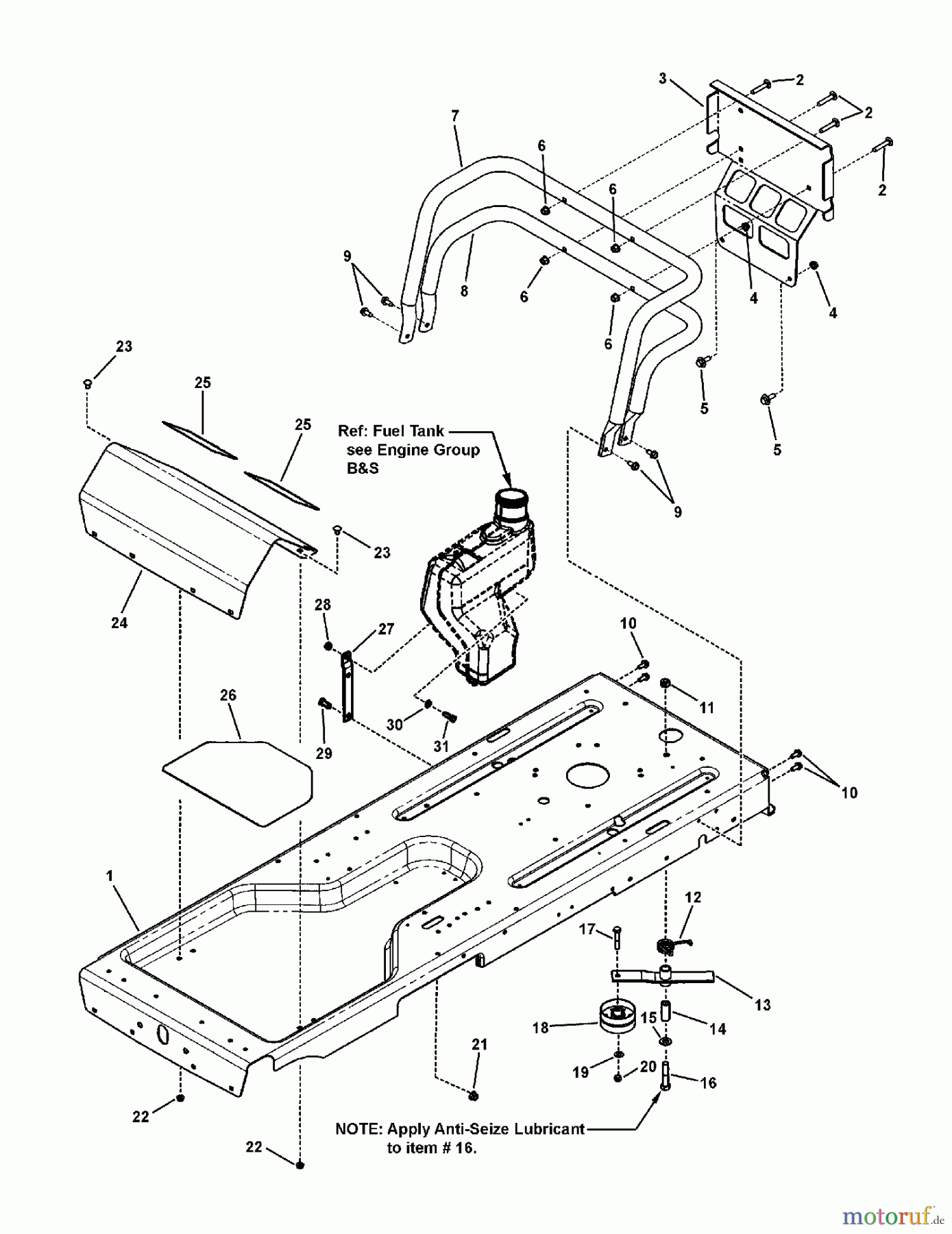

Frame Assembly & Rear Bumper Group RZT21420 (7800795) - Snapper 42" Zero-Turn Mower, 21 HP, RZT Twin Stick Series 285Z

Snapper Nullwendekreismäher, Zero-Turn RZT21420 (7800795) - Snapper 42
PosizioneArticolo numeroDescrizione
1 BS7301073DYPFRAME, RZT
2 BS1931338SMBOLT-RD HD SH SQ NK 5
3 BS7301121DYPPLATE, BRAND
4 BS703330MUTTER, 5/16-18
5 BS1716654SMBOLZEN 5/16-18.0
6 BS703115MUTTER
7 BS7301123BMYPTUBE, BUMPER, UPPER
8 BS7301124BMYPROHR, UNTEN
9 BS703228SCHRAUBE, 5/16-18 X .75
10 BS7091541
11 BS703894NUT, CNTR LCK, 1/2-13
12 BS7044760SM(C) TORSIONSFEDER
13 BS7400208BMYPWELDMENT HYDRO IDLER
14 BS7200034SMDISTANZRING
15 BS7091587SMUNTERLAGSCHEIBE, .531X1.062X.1
16 BS703449BOLT, HEX HEAD CAP
17 BS7091305SMHHCS, 3/8C X2 GR5 YZ
18 BS7100103SMSPANNROLLE, 3.25OD X.391ID
19 BS703878WASHER, FLAT
20 BS703347MUTTER, 3/8-16
21 BS703333MUTTER, 3/8-16
22 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
23 BS7090799SMRHSSNB, 5/16C X5/8 GR
24 BS7300140DYPFOOTREST, SNAPPER
25 BS7104571YPPAD, FOOT, WIDE
26 BS7103830YPMAT, FLOOR PAN, RZT
27 BS7301110BMYPBRACKET, TANK SUPPORT
28 Snapper MUTTER, 5/16-18BS703902MUTTER, 5/16-18
29 BS7091086YPSCHRAUBE, 3/8-16 X 3/4
30 BS017X47MAWASHER,FLAT .34 .62
31 BS703585CAPSCREW, 5/16-18X1
