Snapper RZT20420BVE2 (7800010) - 42" Zero-Turn Mower, 20 HP, Twin Stick, RZT Series 0 TRANSAXLE GROUP Ricambi

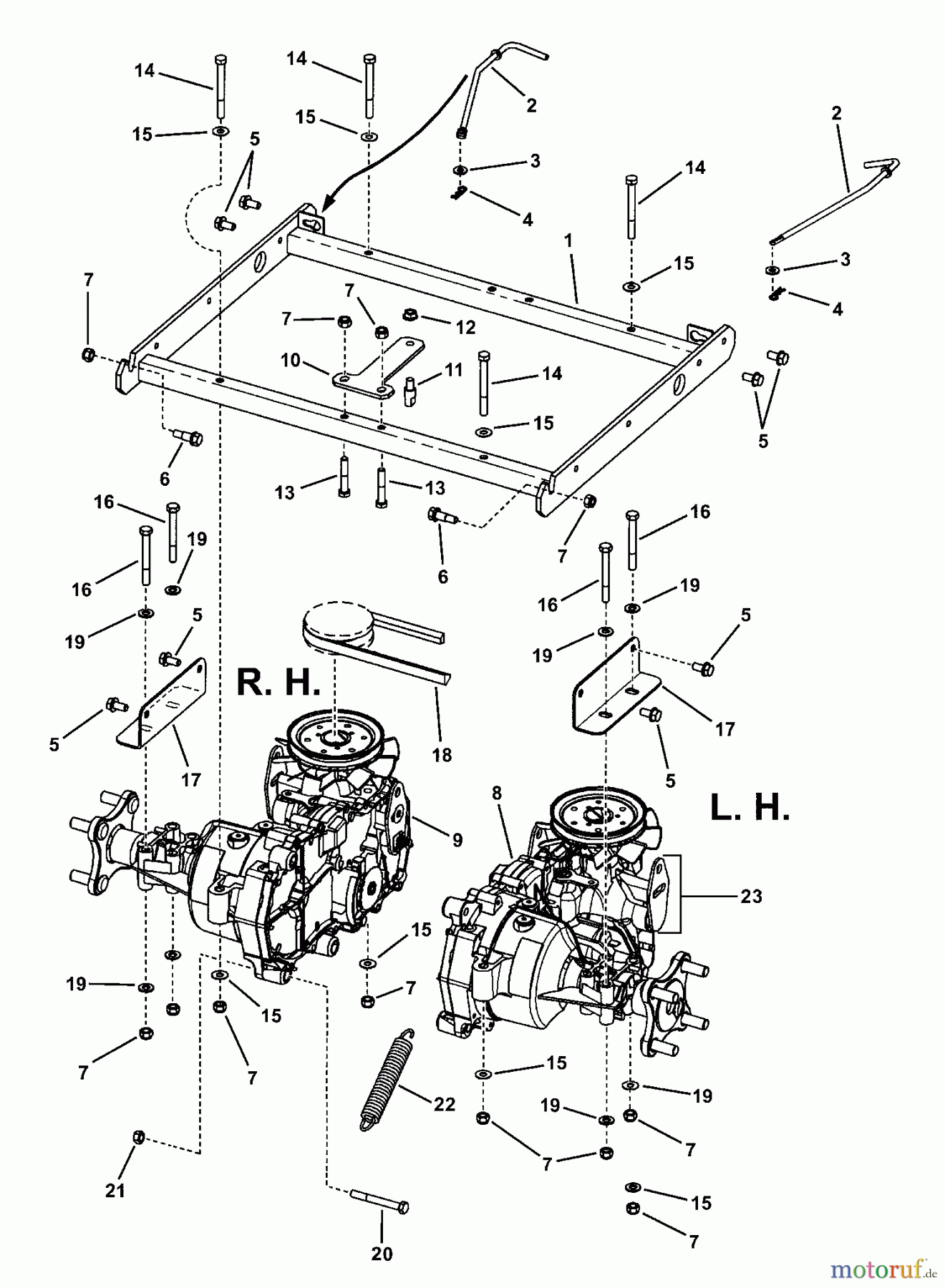

TRANSAXLE GROUP RZT20420BVE2 (7800010) - Snapper 42" Zero-Turn Mower, 20 HP, Twin Stick, RZT Series 0

Snapper Nullwendekreismäher, Zero-Turn RZT20420BVE2 (7800010) - Snapper 42
PosizioneArticolo numeroDescrizione
1 BS7400020SM
2 BS7100229
3 BS7091294
4 BS7012431SM
5 BS7091867YPSCREW, 5/16-18 X 1/2
6 BS7014664SMBOLT, SHLDR, 5/16C X1
7 Snapper MUTTER, 5/16-18BS703902MUTTER, 5/16-18
8 BS7078112SM
9 BS7078111SMTRANSAXLE, RZT, RH,
10 BS7300082SMBRKT, ANTI-ROTATION
11 BS7200046SMPIN - ANTI ROTATION
12 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
13 BS704288
14 BS703577NUT, HEX, 1/2-13
15 BS7015686SMWASHER, SHIM, .314X.7
16 BS703869KOPFSCHRAUBE,5/16-18X2.75
17 BS7300000
18 BS7100102SMKEILRIEMEN, ANTRIEB
19 BS703350U-SCHEIBE, 5/16
20 BS7091703SM
21 BS703348MUTTER,7/16-20
22 BS703144FEDER
23 BS1735484SMCONTROL ARM KIT
