Snapper RZT20420BVE2 (7800010) - 42" Zero-Turn Mower, 20 HP, Twin Stick, RZT Series 0 42" DECK GROUP (Final Assembly) Ricambi

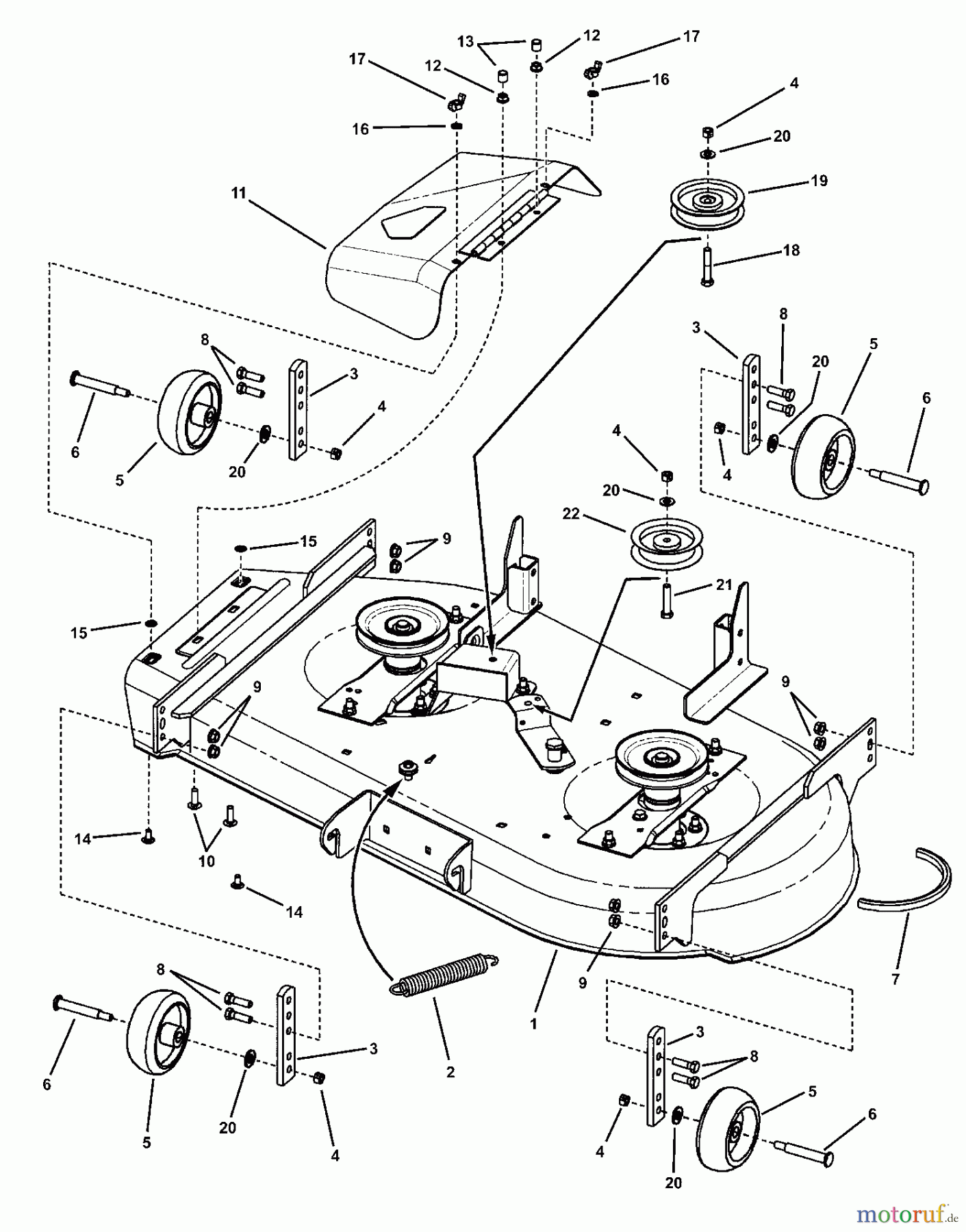

42" DECK GROUP (Final Assembly) RZT20420BVE2 (7800010) - Snapper 42" Zero-Turn Mower, 20 HP, Twin Stick, RZT Series 0

Snapper Nullwendekreismäher, Zero-Turn RZT20420BVE2 (7800010) - Snapper 42
PosizioneArticolo numeroDescrizione
1 BS7500021
2 BS7035969SMSPRING, TENSION,IDLER
3 BS7035835SMPOST, ANTI-SCALP, YEL
4 BS703347MUTTER, 3/8-16
5 BS1714760SMRAD AUFNAHME
6 BS2108765SMRADBOLZEN 3/8-16X2.7
7 BS7100419YPBELT, RZT, 42
8 BS703871KOPFSCHRAUBE,3/8-16X1.25
9 BS703333MUTTER, 3/8-16
10 BS7091303YPRHSSNB, 5/16CX1 GR5
11 BS7500185YPCHUTE & DECAL ASSY, 4
12 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
13 BS7023606YPCAP, VINYL
14 BS7090799SMRHSSNB, 5/16C X5/8 GR
15 BS703297RETAINER, GR5, 5/16
16 BS703116LCKWSHR
17 BS7091537YPWLN, 5/16C YZ
18 BS7091305SMHHCS, 3/8C X2 GR5 YZ
19 BS7018574SMSPANNROLLE FLACH 4.12
20 BS703878WASHER, FLAT
21 BS1921971SMKOPFSCHRAUBE, SECHSK. HD 3/8
22 BS7075707YPIDLER, FLAT, 4.00 OD
