Snapper NZMXL30614KH (7800088) - 61" Zero-Turn Mower, 30 HP, Kohler, Mid Mount, Large Frame, Z-Rider Commercial Lawn & Turf Series 4 IDLER ASSEMBLY (61" Deck) Ricambi

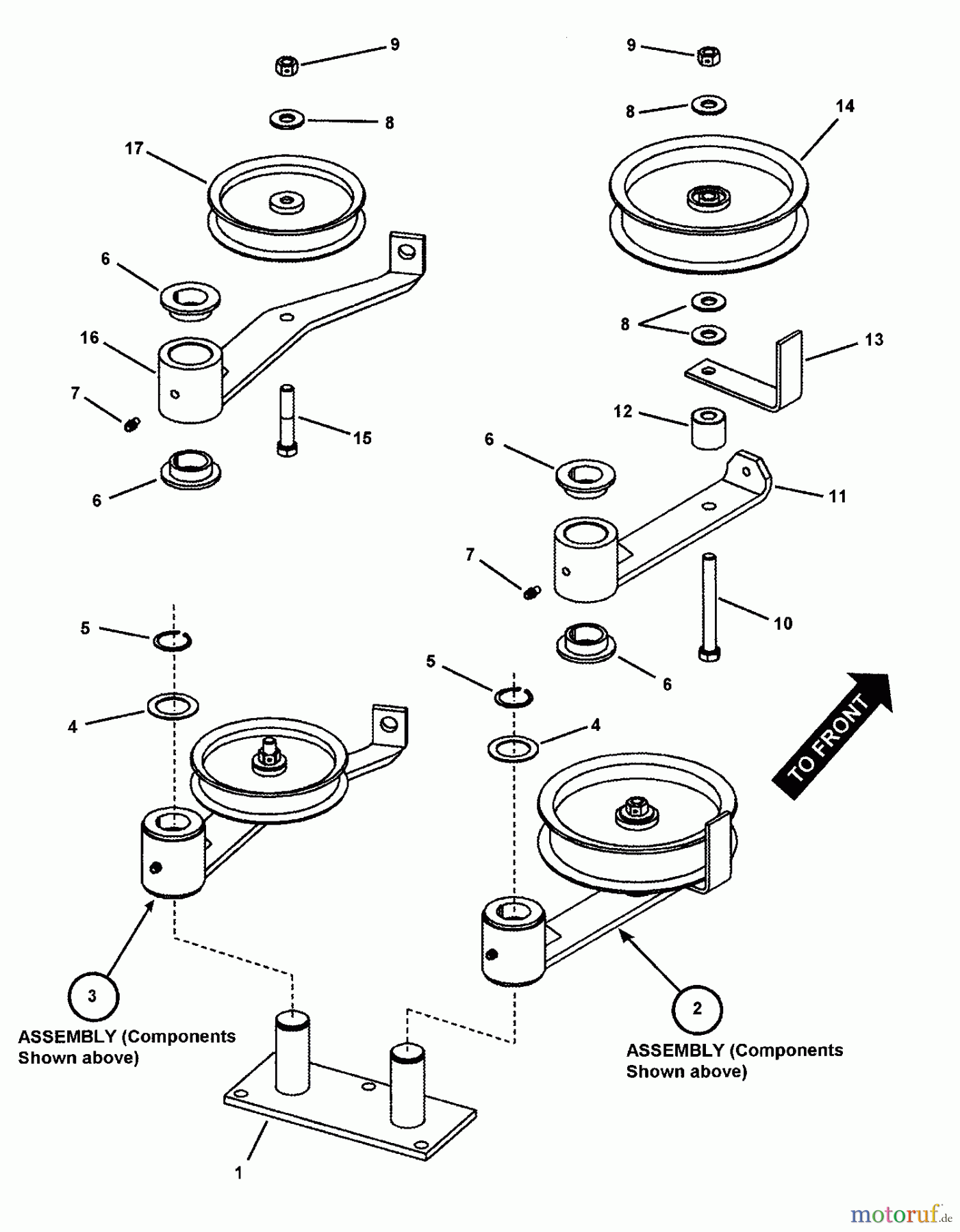

IDLER ASSEMBLY (61" Deck) NZMXL30614KH (7800088) - Snapper 61" Zero-Turn Mower, 30 HP, Kohler, Mid Mount, Large Frame, Z-Rider Commercial Lawn & Turf Series 4

Snapper Nullwendekreismäher, Zero-Turn NZMXL30614KH (7800088) - Snapper 61
PosizioneArticolo numeroDescrizione
1 BS7058147YP(C) WELD, IDLER PLATE
2 BSEingangswelle UE 600
3 BSEingangswelle UE 600
4 BS7023747YPBUSHING, MACH, 1
5 BS7012709YPRETAINING RING, 1" OD
6 BS7074720SM(C) BUSHING, IDLER, P
7 BS7014669YPSCHMIERNIPPEL
8 BS7090517SMFW, .438X1X.084 YZ
9 BS703347MUTTER, 3/8-16
10 BS703874KOPFSCHRAUBE,3/8-16X3.25
11 BS7058877YP(C) WELD, IDLER BRKT,
12 BS7035657YP(C) BUSHING, IDLER
13 BS7035656YP(C) RETAINER, BELT, I
14 BS7034422SM(C) PULLEY, FLAT IDLE
15 BS1921971SMKOPFSCHRAUBE, SECHSK. HD 3/8
16 BS7058329YP(C) WELD, BELT / PULL
17 BS7029273YP(C) PULLEY, IDLER
