Snapper NZMXL30614KH (7800088) - 61" Zero-Turn Mower, 30 HP, Kohler, Mid Mount, Large Frame, Z-Rider Commercial Lawn & Turf Series 4 61" CUTTING DECK ASSEMBLY (Sub Assy) Ricambi

61" CUTTING DECK ASSEMBLY (Sub Assy) NZMXL30614KH (7800088) - Snapper 61" Zero-Turn Mower, 30 HP, Kohler, Mid Mount, Large Frame, Z-Rider Commercial Lawn & Turf Series 4

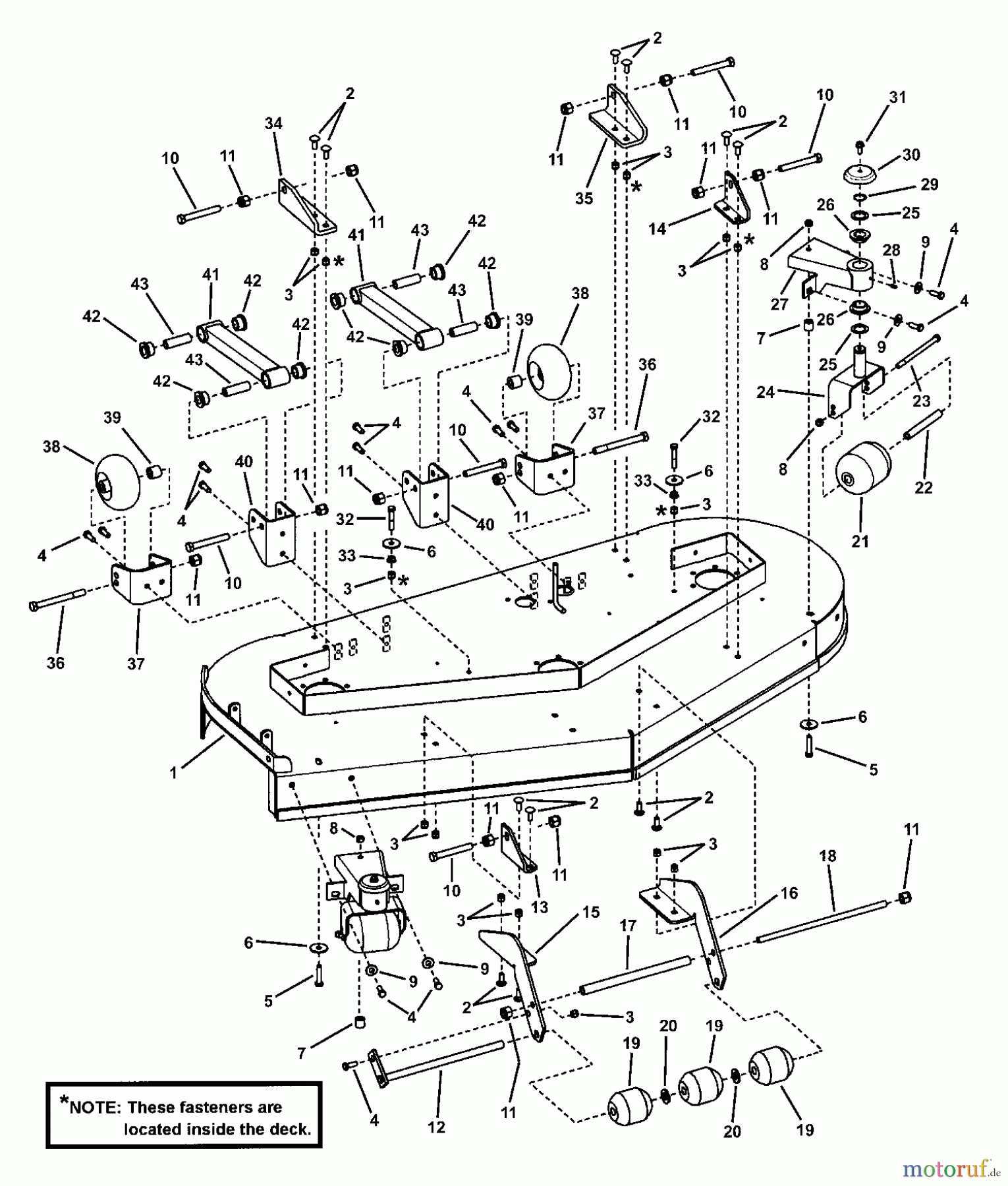

Snapper Nullwendekreismäher, Zero-Turn NZMXL30614KH (7800088) - Snapper 61
PosizioneArticolo numeroDescrizione
1 BS7400157YP
2 BS703814BOLT, RD HD, 3/8-16X1
3 BS5025096SMMUTTER, 3/8-16 HEX NYLON
4 BS7091304SMSECHSK.SCHRAUBE, 3/8C X1 GR5 Y
5 BS1921971SMKOPFSCHRAUBE, SECHSK. HD 3/8
6 BS7091331SMU.-SCHEIBE.406X1.5X.120 YZ
7 BS7044752YPSPACER, YZ
8 BS703347MUTTER, 3/8-16
9 BS7090517SMFW, .438X1X.084 YZ
10 BS7029355YPHHCS, 1/2C X3-3/4
11 BS7091325YPHLN, NYLON, 1/2C YZ
12 BS7027327YP(C) WELD, PIVOT PIN,
13 BS7300420YPBRKT, FRONT, RH
14 BS7300421YPBRKT, FRONT, LH
15 BS7300212
16 BS7300214YPBRKT, FRONT ROLLER, L
17 BS7036460YP(C) TUBE, ROLLER
18 BS7036461YP(C) ROD, THREADED ROL
19 BS7073142YPROLLER, DECK, BLACK
20 BS7027344SMFW, .668X1.324X.098 Y
21 BS7079868YP(C) ROLLER, 3-3/4 D.X
22 BS7079882YP(C) BUSHING
23 BS7091617YPHHCS, 3/8C X6 GR5 YZ
24 BS7400153YPWELD, CASTER GAGE
25 BS7023747YPBUSHING, MACH, 1
26 BS7074720SM(C) BUSHING, IDLER, P
27 BS7400154YPWELD, GAUGE WHEEL SUP
28 BS7014669YPSCHMIERNIPPEL
29 BS7012709YPRETAINING RING, 1" OD
30 BS7036578YPCAP, CASTER SHAFT
31 BS703228SCHRAUBE, 5/16-18 X .75
32 BS7091305SMHHCS, 3/8C X2 GR5 YZ
33 BS703333MUTTER, 3/8-16
34 BS7300418YPBRKT, REAR, RH
35 BS7300419YPBRKT, REAR, LH
36 BS703886CAPSCREW, 1/2-13X5
37 BS7036457YP(C) BRKT, GAUGE WHEEL
38 BS1700184SMRAD - 2.60 BREIT 4.9
39 BS7036456YPSPACER, YZ
40 BS7300064YPBRKT, STABILIZER
41 BS7044823YPWELD, PUSHER BAR
42 BS7029258YPBUSHING, SUSPENSION
43 BS7029263YPSLEEVE, SUSPENSION
