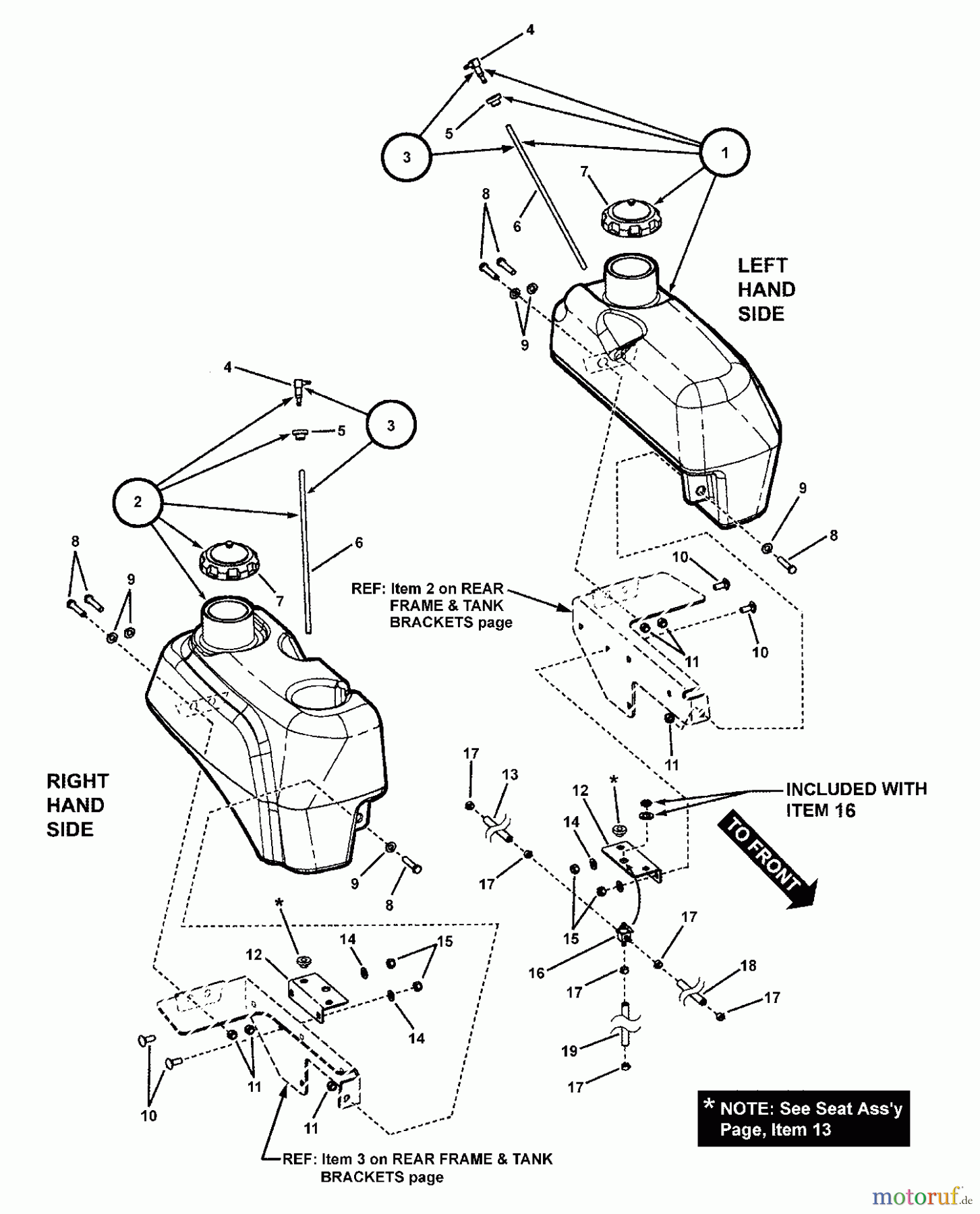

FUEL TANK ASSEMBLY (Series 1) NZMJ23521KH (84938) - Snapper 52" Zero-Turn Mower, 23 HP, Kohler, Mid Mount, Z-Rider Commercial Lawn & Turf Series 1

Snapper Nullwendekreismäher, Zero-Turn NZMJ23521KH (84938) - Snapper 52
PosizioneArticolo numeroDescrizione
1 BS7074566YP(C) FUEL TANK, LH
2 BS7074565YPFUEL TANK, RH
3 BS7049999YPFUEL PICK-UP ASSY.
4 BS7074835YPFITTING, DAPCO
5 BS7012377
6 BS7075106
7 BS5101651SMTANKDECKEL BELUFTET
8 BS7092089YPHHCS, 7/16C X2 GR5 YZ
9 BS7091587SMUNTERLAGSCHEIBE, .531X1.062X.1
10 BS703814BOLT, RD HD, 3/8-16X1
11 BS7091917YPNUT, NYLOCK, 7/16
12 BS7074687YP(C) BRKT, VALVE MOUNT
13 BS7074689
14 BS703878WASHER, FLAT
15 BS703117MUTTER
16 BS7044681YP(C) VALVE, FUEL, 3-WA
17 BS7029900SMKLEMME 490 X .31
18 BS7074688YP(C) HOSE, FUEL, 3'7.5
19 BS7075717YPHOSE, FUEL
