Snapper HZT21480BV (82533) - 48" Zero-Turn Mower, 21 HP, Twin Stick, ZTR Series 0 SEAT ASSEMBLY (Ferris) Ricambi

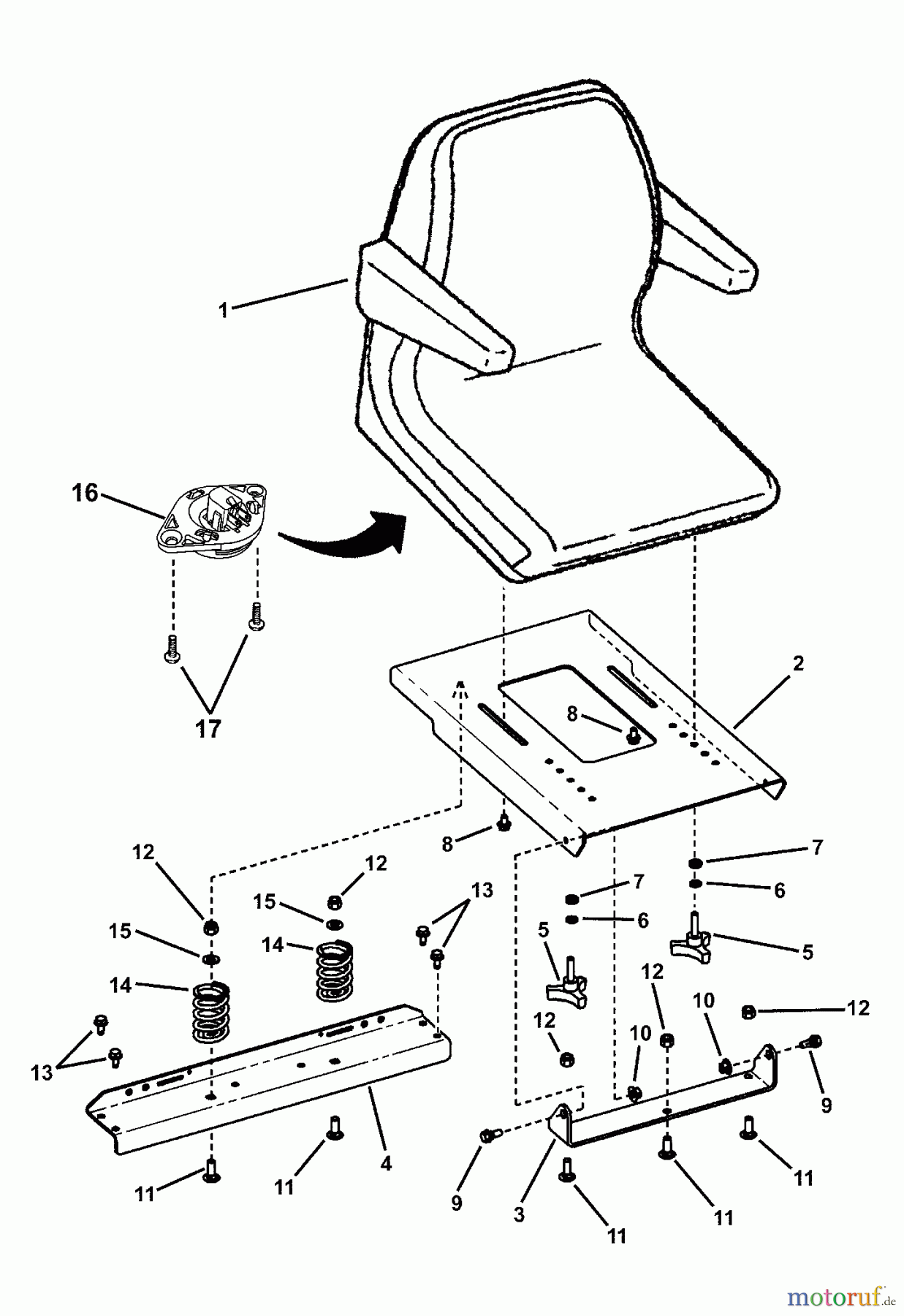

SEAT ASSEMBLY (Ferris) HZT21480BV (82533) - Snapper 48" Zero-Turn Mower, 21 HP, Twin Stick, ZTR Series 0

Snapper Nullwendekreismäher, Zero-Turn HZT21480BV (82533) - Snapper 48
PosizioneArticolo numeroDescrizione
1 BS5023184
2 BS7046303YPPLATE, SEAT, BLACK
3 BS7046269YPHINGE, SEAT, BLACK
4 BS7045149YPPLATE, CROSS, BLACK
5 BS7023191SMKNOB, THREE PRONG 5/1
6 BS7090187SMSLW, .318X.583X.078 Z
7 BS703970DISTANZSTUCK
8 BS7091038YPBOLTZEN, 5/16-18X1/2
9 BS7015761YPPASSSCHRAUBE, 5/16- 1
10 BS704001NUT, 5/16-18
11 BS703814BOLT, RD HD, 3/8-16X1
12 BS703117MUTTER
13 BS703949SCHRAUBE, 5/16-18.625
14 BS7074218SM
15 BS703878WASHER, FLAT
16 BS1718981SMSCHALTER 3.1
17 BS1960536SMSCHRAUBE SECHSK.SCHEIBE HD PL
