Snapper HZS18483BVE - 48" Zero-Turn Mower, 18 HP, ZTR Yard Cruiser, Series 3 48" Spindle Assembly (Series 3) Ricambi

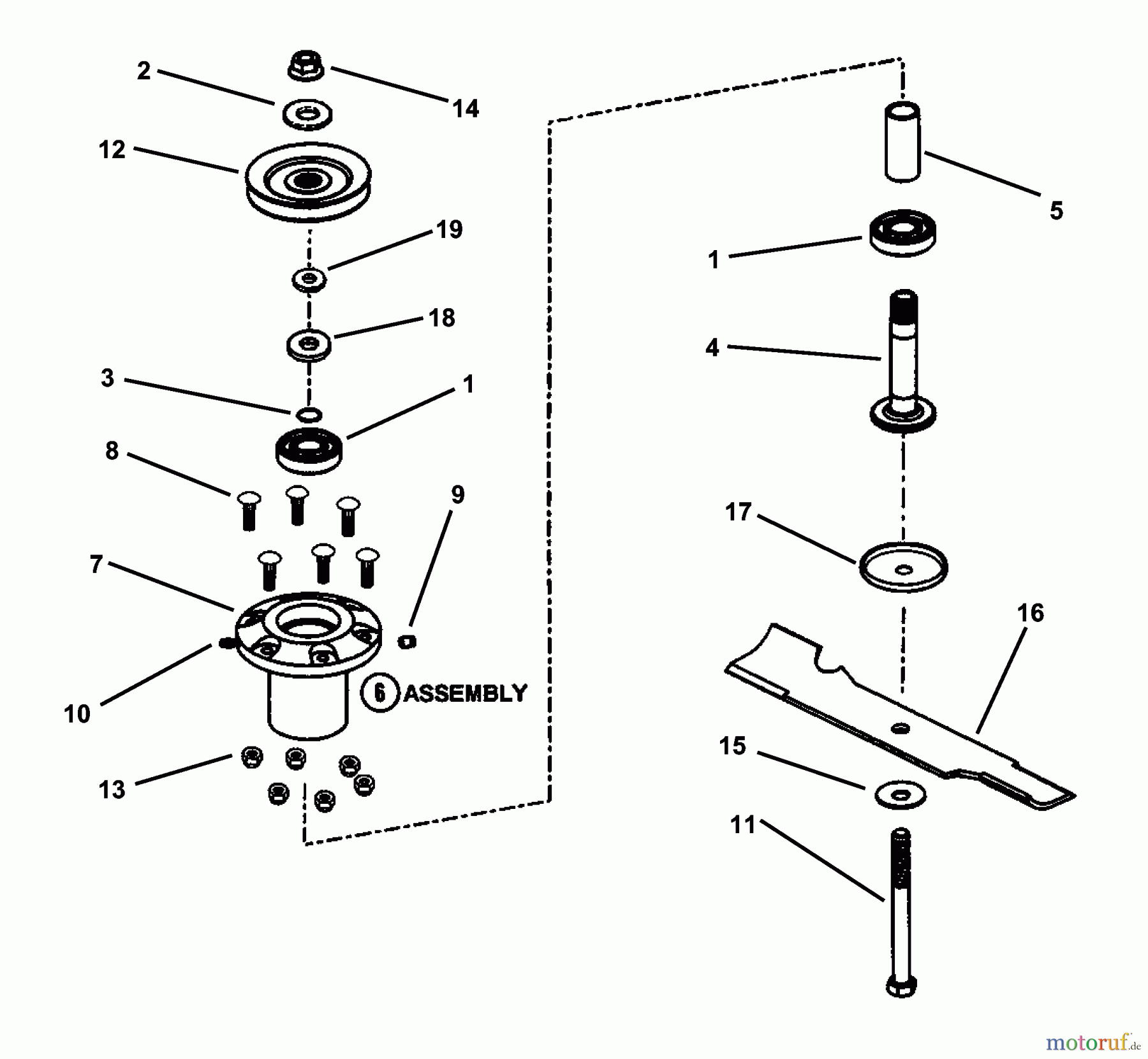

48" Spindle Assembly (Series 3) HZS18483BVE - Snapper 48" Zero-Turn Mower, 18 HP, ZTR Yard Cruiser, Series 3

Snapper Nullwendekreismäher, Zero-Turn HZS18483BVE - Snapper 48
PosizioneArticolo numeroDescrizione
1 BS7029422YPBEARING, BALL
2 BS7027344SMFW, .668X1.324X.098 Y
3 BS7029274YPRETAINING RING
4 BS7059311YPSPINDLE SHAFT ASMY
5 BS7029254YP(C) SPACER, 1.25 OD X
6 BS7058237YPSPINDLE ASMY
7 BS7058237
8 BS7029302YP(C) BOLT, RIBBED
9 BS7029384YPSPINDLE, GREASE VENT
10 BS703153ZERK,GREASE FITTING
11 BS7063235YPHB, 5/8C X7 GR5 YZ
12 BS7058033YPPULLEY, DRIVEN
13 BS703117MUTTER
14 BS7063237YPHFLN, 5/8C GR5 YZ
15 BS7016440SMSCHEIBE 656X1.875X.086
16 BS7075771BZYPBLADE 16.5
17 BS7072077YPCUP, SPINDLE COVER
BS7063240YPBEARING SEAL KIT
18 BS7063238YPSEAL, BEARING
19 BS7013370YPBUCHSE
BS7054011YPSPINDLE ASMY
