Snapper EZF2101DKU - 21 HP Zero-Turn Mower, Kubota, Out Front, Z-Rider Series 1 Front Drive Shaft Assembly Ricambi

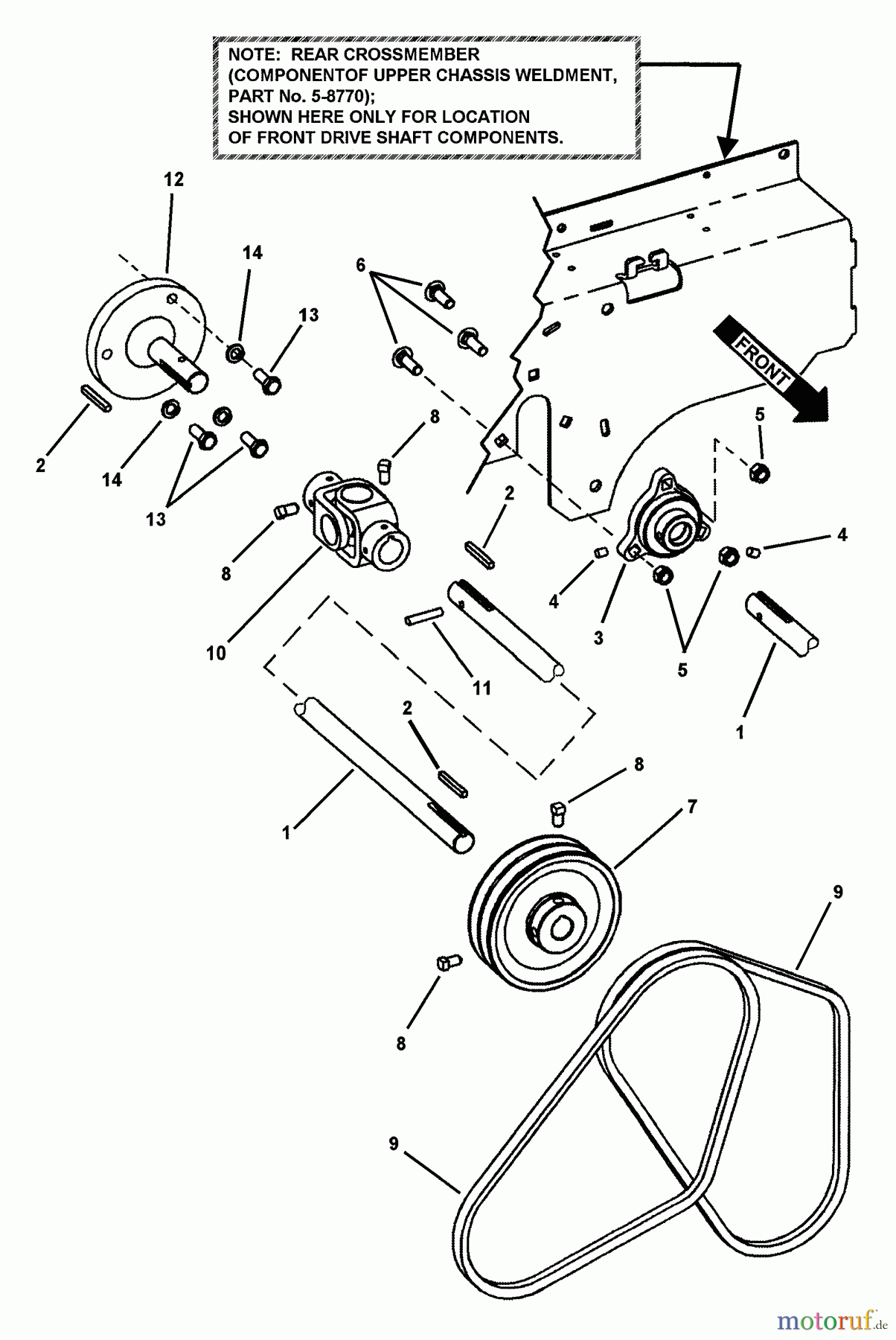

Front Drive Shaft Assembly EZF2101DKU - Snapper 21 HP Zero-Turn Mower, Kubota, Out Front, Z-Rider Series 1

Snapper Nullwendekreismäher, Zero-Turn EZF2101DKU - Snapper 21 HP Zero-Turn Mower, Kubota, Out Front, Z-Rider Series 1 Front Drive Shaft Assembly
PosizioneArticolo numeroDescrizione
1 BS7073566YP(C)SHAFT,PTO, KUBOTA
2 BS7091803SM(C) KEY, SQUARE, 3/16
3 BS7054655YPBEARING / LOCK ASMY
4 BS7090471YPHRSS, 1/4C X5/16
5 Snapper MUTTER, 5/16-18BS703902MUTTER, 5/16-18
6 BS7091714YPBOLZEN, 5/16-18X1
7 BS7035564
8 BS7090848SMSHSS, 5/16C X1/2
9 BS7035544YP(C) BELT, TRACTION DR
10 BS7058946YP(C) COUPLING, UNIVERS
11 BS7092056YP(C) GROOVE PIN
12 BS7073529YP(C) ADAPTER, ENGINE,
13 BS7091953YP(C) HHCS, M8-1.25X20
14 BS703116LCKWSHR
