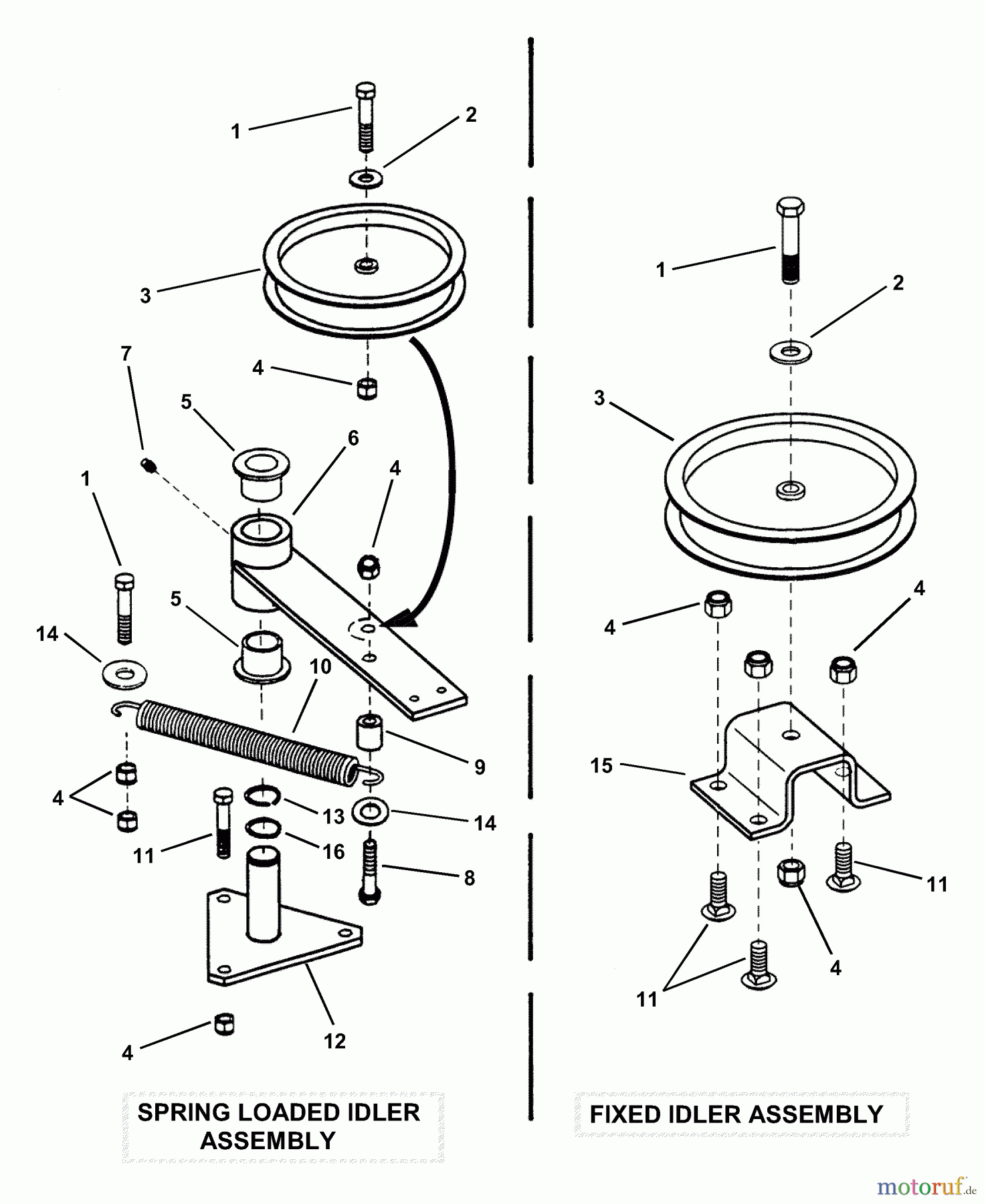

52" & 61" Deck Idler Assemblies EZF2101DKU - Snapper 21 HP Zero-Turn Mower, Kubota, Out Front, Z-Rider Series 1

Snapper Nullwendekreismäher, Zero-Turn EZF2101DKU - Snapper 21 HP Zero-Turn Mower, Kubota, Out Front, Z-Rider Series 1 52
PosizioneArticolo numeroDescrizione
1 BS7091305SMHHCS, 3/8C X2 GR5 YZ
2 BS7090517SMFW, .438X1X.084 YZ
3 BS7035789YPPULLEY, IDLER 5.5 OD
4 BS703117MUTTER
5 BS7023556YPBUSHING, CASTER
6 BS7042619YP(C) WELD, IDLER ARM,
7 BS703153ZERK,GREASE FITTING
8 BS1921971SMKOPFSCHRAUBE, SECHSK. HD 3/8
9 BS7035858YP(C) SPACER, .750 OD X
10 BS7035667YP(C) SPRING, EXTENSION
11 BS703814BOLT, RD HD, 3/8-16X1
12 BS7041295YP(C) WELD, IDLER PIVOT
13 BS7012709YPRETAINING RING, 1" OD
14 BS7091331SMU.-SCHEIBE.406X1.5X.120 YZ
15 BS7036449YP(C) STAND, FIXED IDLE
16 BS7032031YPFW, 1.031X1.25X.03
