Snapper 550ZKAV2461 (5901251) - 61" Zero-Turn Mower, 24HP ZTR 550Z Series Transaxle Drive Group Ricambi

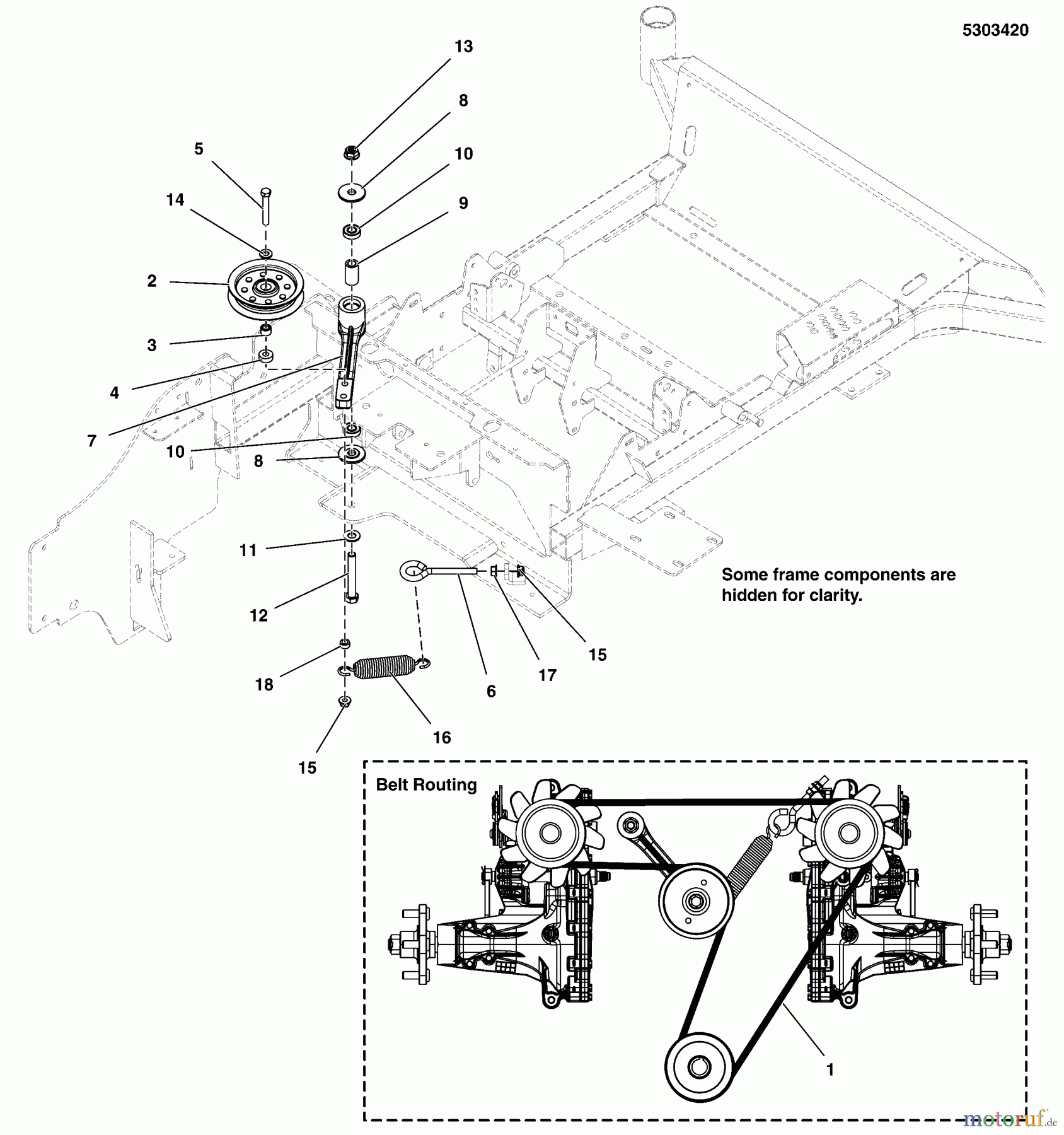

Transaxle Drive Group 550ZKAV2461 (5901251) - Snapper 61" Zero-Turn Mower, 24HP ZTR 550Z Series

Snapper Nullwendekreismäher, Zero-Turn 550ZKAV2461 (5901251) - Snapper 61
PosizioneArticolo numeroDescrizione
1 BS5103951YP
2 BS5021002SMUMLENKROLLE
3 BS5020880SM
4 BS1667811SMDISTANZBUCHSE
5 BS5025013X20SMBOLZEN, 3/8-16 X 2-1/2
6 BS5023497SMRINGBOLZEN
6 BS5021811SM
7 BS5101178AYP
8 BS5103262YPSPACER, IDLER ARM
9 BS5103812YPSPACER, .52 X .84 X 1
10 BS7078243YPBEARING, BALL, AXLE
11 BS5025158SMSCHEIBE, 1/2" SAE
12 BS5025017X28SMBOLT, 1/2-13 X 3-1/2"
13 BS5025396SMMUTTER 1/2-13
14 BS5025293SMSCHEIBE, 3/8"
15 BS5025394SMMUTTER, 3/8-16 SECHSK.
16 BS5100633YP
17 BS5025128SMMUTTER, 3/8-16 SECHSK.
18 BS1611705SMDISTANSRING-0.385IDX0
