Snapper 550ZKAV2461 (5901251) - 61" Zero-Turn Mower, 24HP ZTR 550Z Series Fuel Tank & Mount Group Ricambi

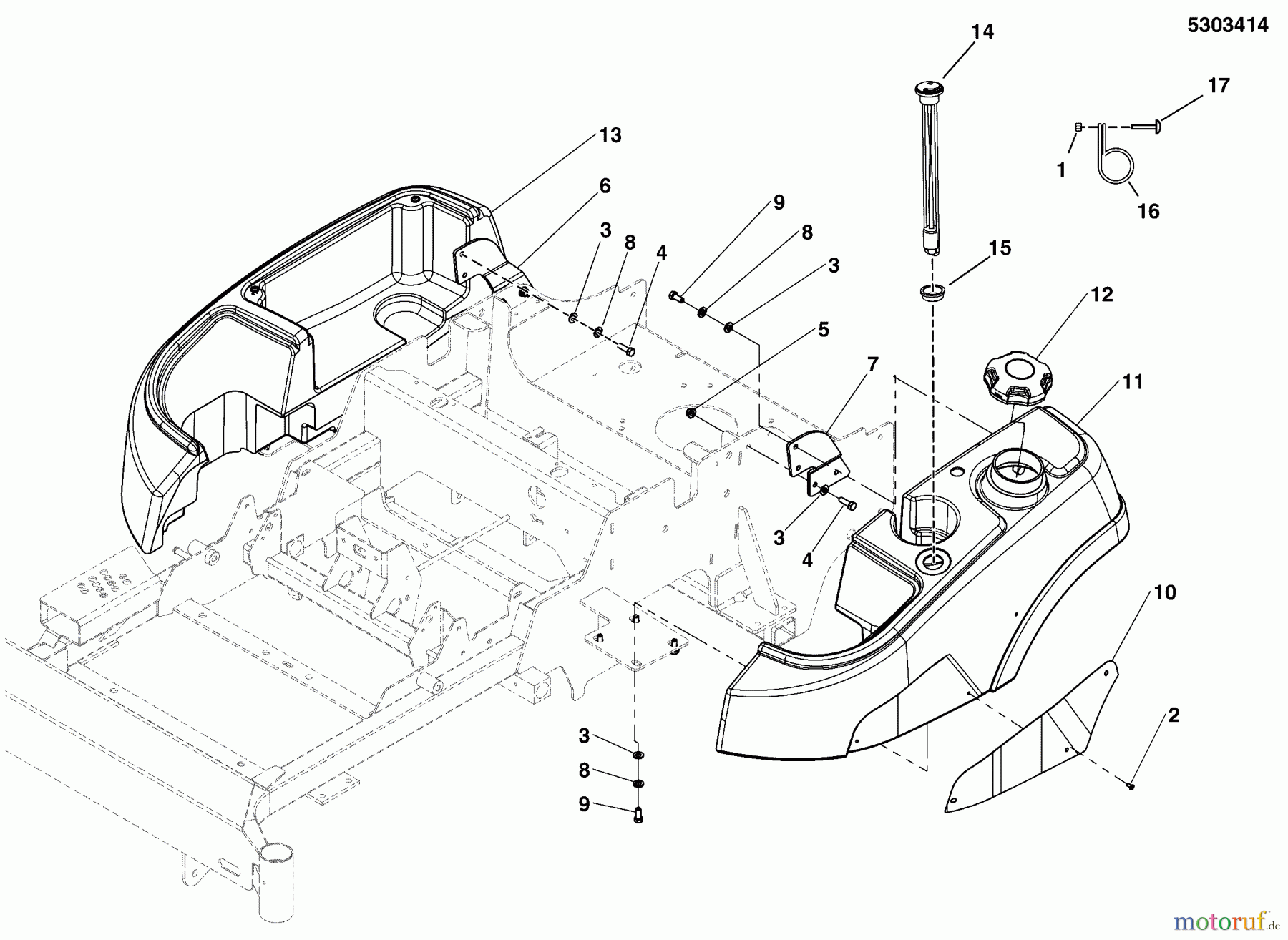

Fuel Tank & Mount Group 550ZKAV2461 (5901251) - Snapper 61" Zero-Turn Mower, 24HP ZTR 550Z Series

Snapper Nullwendekreismäher, Zero-Turn 550ZKAV2461 (5901251) - Snapper 61
PosizioneArticolo numeroDescrizione
1 BS703463MUTTER, GR5,1/4-20
2 BS5025386SMSCHRAUBE, #10-24 X 3/8
3 BS703302U-SCHEIBE, 5/16
4 BS5025011X8SMBOLZEN, 5/16-18 X 1" GD
5 BS703115MUTTER
6 BS5411554DYP
7 BS5411555DYP
8 BS5025170SMSICHERUNGSSCHEIBE, 5/16"
9 BS5025011X6SMBOLZEN, 5/16-18 X 3/4"
10 BS5048909DYPSCHILD, KRAFTSTOFFT. EMBL.
11 BS5103167YPTANK, FUEL, LH
12 BS5103005YPCAP, FUEL, EVAP
13 BS5048752SMKRAFTST.TANK
14 BS5023197SMANZEIGE, TANKANZEIGE
15 BS5022917X1SMTULLE
16 BS5021500SMKLEMME
17 BS5025299X6SMSCREW, 1/4-20 X 3/4"
