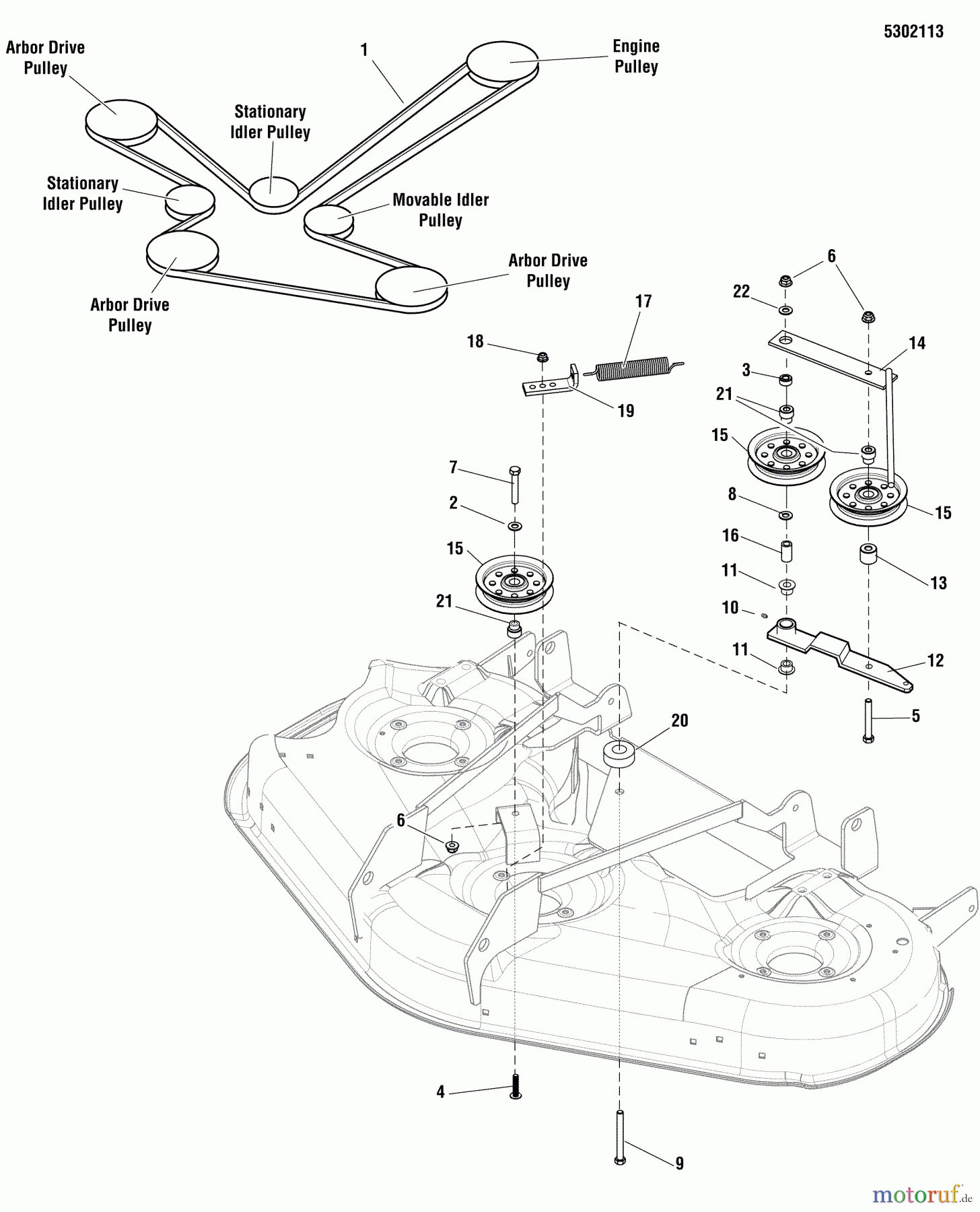

Snapper 365ZB2652CE (5900946) - 52" Zero-Turn Mower, ZTR 365Z Series 52" Mower Deck - Pulleys, Belt & Idler Arm Group Ricambi

52" Mower Deck - Pulleys, Belt & Idler Arm Group 365ZB2652CE (5900946) - Snapper 52" Zero-Turn Mower, ZTR 365Z Series

Snapper Nullwendekreismäher, Zero-Turn 365ZB2652CE (5900946) - Snapper 52
PosizioneArticolo numeroDescrizione
1 BS5102460YPBELT, HA-SEC, 158.00
2 BS5025401
3 BS5044933SMDISTANZRING, 39 X .75 X
4 BS1960373SMSCHRAUBE - HEX WASHER HD
5 BS5025013X22SMBOLZEN, 3/8-16 X 2-3/4
6 BS5025394SMMUTTER, 3/8-16 SECHSK.
7 BS5025013X16SMBOLZEN, 3/8-16 X 2" GD5
8 BS703590WASHER, FLAT, .406
9 BS5025013X32SMBOLT, 3/8-16 X 4" GD5
10 BS5020095SMSCHMIERNIPPEL , 1/4-2
11 BS1676148SMBUCHSE - 0.628IDX
12 BS5400398DYPASSM, IDLER ARM 44" S
13 BS5047125SMDISTANZRING, .39 X 1.00 X
14 BS5403492DYPWELD, MOUNT, IDLER TE
15 BS5021002SMUMLENKROLLE
16 BS1674669SMDISTANZHULSE 0.39 IDXD 6250
17 BS1715435SMFEDER , VERLANGERUNG 1
18 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
19 BS5405675DYPBRACKET, SPRING ANCHO
20 BS5101465YPSPACER, .39 X 1.75 X
21 BS5049184SMDISTANZRING
22 BS703302U-SCHEIBE, 5/16
