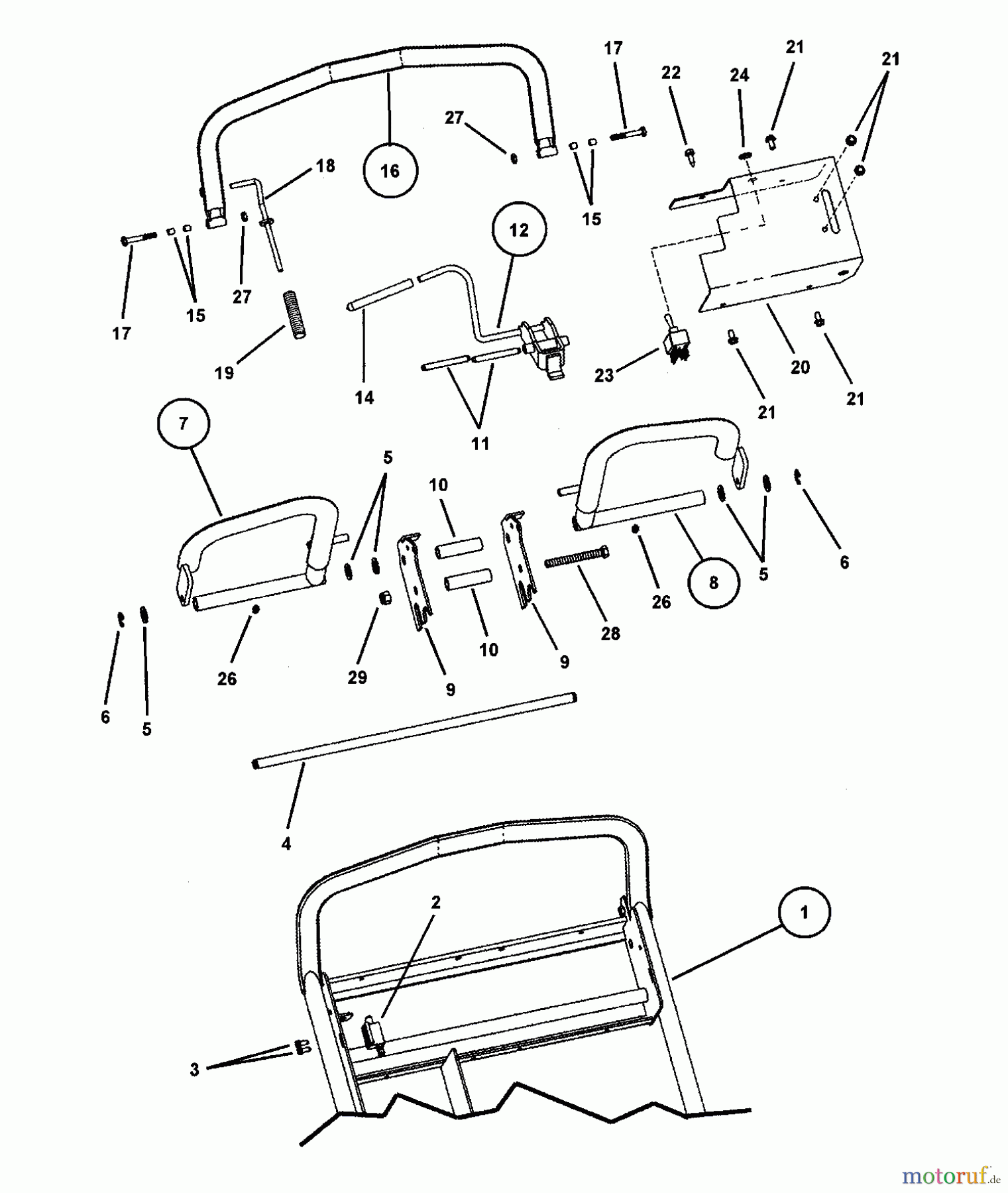

LOOP HANDLE & CONTROLS (Traction) SPEL150KH - Snapper Wide-Area Walk-Behind Mower, 15 HP, Express, Loop Handle, Gear Drive, Series 0

Snapper Rasenmäher für Großflächen SPEL150KH - Snapper Wide-Area Walk-Behind Mower, 15 HP, Express, Loop Handle, Gear Drive, Series 0 LOOP HANDLE & CONTROLS (Traction)
PosizioneArticolo numeroDescrizione
1 BS7058842YP(C) WELD, HANDLE, LOO
2 BS7027225YP(C) SWITCH, SINGLE PO
3 BS7077873YP(C) HFST, #12-14X1/2
4 BS7022166YP(C) ROD, PIVOT, YELLO
5 BS7091030YP(C) BUSHING, MACH, 1/
6 BS703976RETAINER, RING, 1/2
7 BS7058847YP
8 BS7058848YP(C) WELD, TRACTION LE
9 BS7073311YP(C) PLATE, NEUTRAL LA
10 BS7073315YP(C) SPACER,.68OD X.51
11 BS7034803YP(C) PIN, SHOULDER
12 BS7059115YP(C) WELD, LATCH, NEUT
13 BS7012080SMCABLE TIE, 7.0
14 BS7023801YPGRIP
15 BS7028857YP(C) BEARING
16 BS7041748YP(C) WELD, BAIL
17 BS7091003YPHHCS 1/4C X1-3/4 GR5
18 BS7074648YPROD, OPC
19 BS7029139YPSPRING, OPC, LOOP
20 BS7073309YP(C) PLATE, CONSOLE, L
21 BS7091122
22 BS7090290SMHWST, 1/4C X3/4 ZP
23 BS7029715YP(C) SWITCH, TOGGLE, H
24 BS7012686YPHN, 1/2-27, SPECIAL Z
25 BS7029100YP(C) THROTTLE CONTROL,
26 BS703153ZERK,GREASE FITTING
27 BS7090977YPHJN, 1/4C GR5 BZ
28 BS703874KOPFSCHRAUBE,3/8-16X3.25
29 BS703117MUTTER
