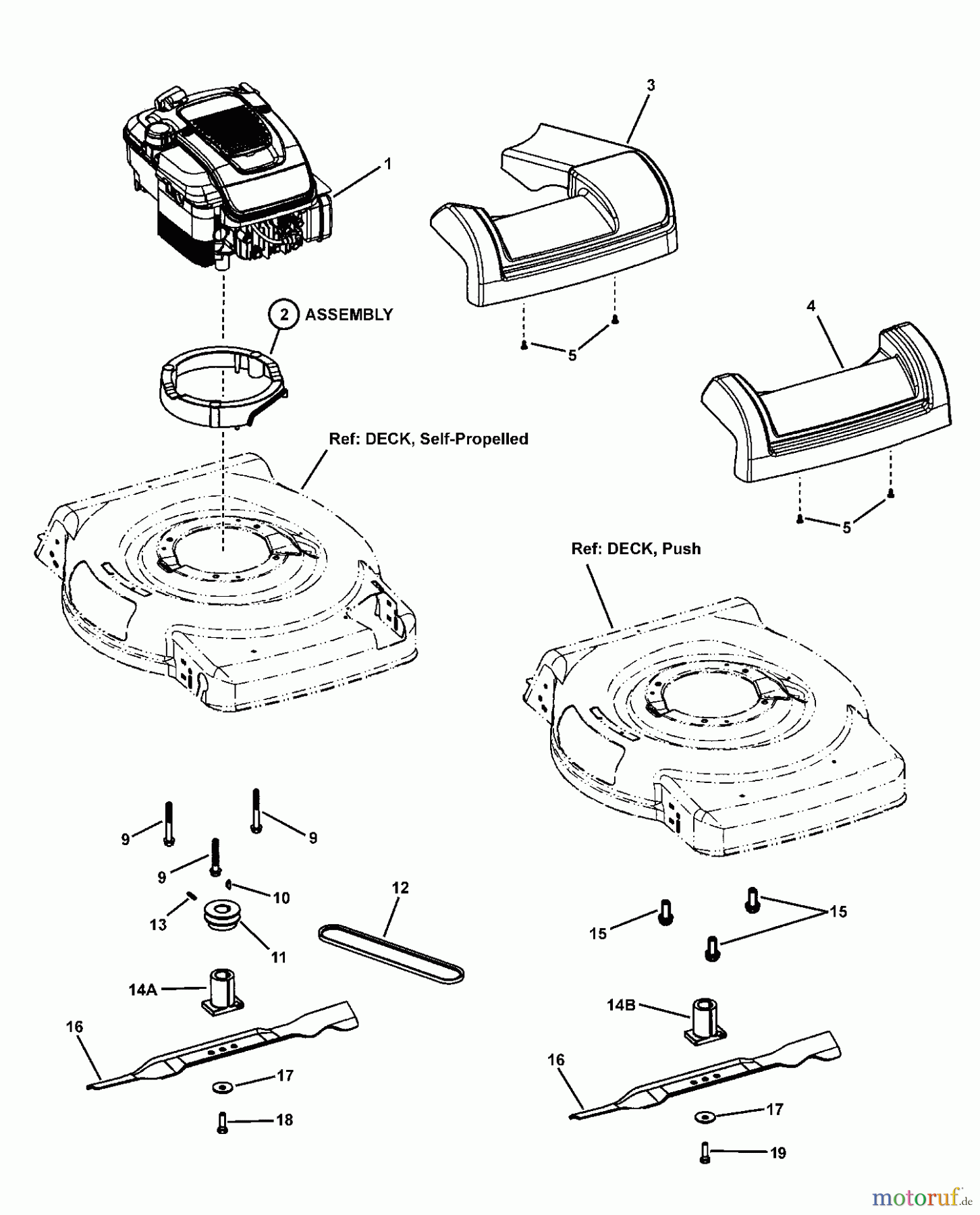

Snapper SP2265FC (7800263) - 22" Walk-Behind Mower, 6.5 HP, 3N1 Engine, Blade & Front Cover Ricambi

Engine, Blade & Front Cover SP2265FC (7800263) - Snapper 22" Walk-Behind Mower, 6.5 HP, 3N1

Snapper Rasenmäher SP2265FC (7800263) - Snapper 22
PosizioneArticolo numeroDescrizione
1 BS124T02-0301-B1
1 BS126T02-0177-B1
2 BS7101449YPASSY, ENGINE SPACER
3 BS7101195YPABDECKHAUBE, VORN 22
4 BS7101310YPCOVER, FRONT, REAR DI
5 BS7900018YPSCREW, ROUND WASHER H
9 BS025X11MASCHRAUBE- MOTORGESTELL
10 BS7091214YPKEY, #HP-506 HI-PRO
11 BS7100763MAPULLEY, ENGINE
12 BS7101193MABELT, DRIVE 22 WBM
13 BS7092086YPHRSS 5/16-18X1/2
14A BS7100740YPHUB, BLADE, 22" DECK
14B BS7100862YPMESSERNARBE, 22"
15 BS7090324SMHWST, 3/8C X1 BZ
16 BS7100851AYPMESSER, 22"
17 BS1101989MAUNTERLEGSCHEIBE.39X1.18X.12 BE
18 BS01X144MASECHSKANTBOLZEN.37-24X3.25PH
19 BS7090824YPSCREW, 3/8-24 X 1-1/4
