Snapper RP216020KWV (7800556) - 21" Walk-Behind Mower, 6 HP, Steel Deck, Recycling, Series 20 Wheels Front and Rear Ricambi

• Start
• Snapper
• Rasenmäher
• RP216020KWV (7800556) - Snapper 21" Walk-Behind Mower, 6 HP, Steel Dec
• Wheels Front and Rear

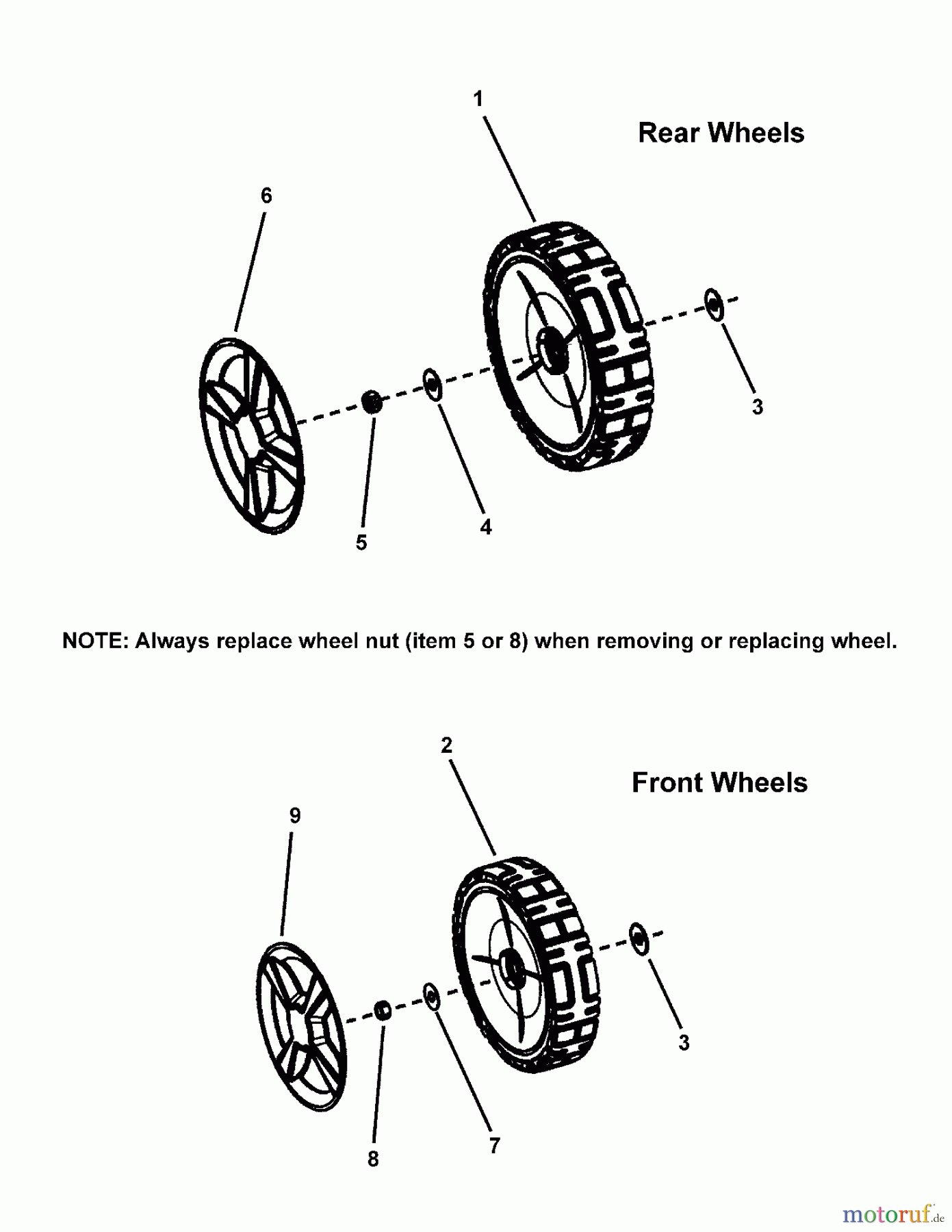

Wheels Front and Rear RP216020KWV (7800556) - Snapper 21" Walk-Behind Mower, 6 HP, Steel Deck, Recycling, Series 20

Posizione		Articolo numero	Descrizione
1		BS7501078YP	WHEEL ASSY, 10"X2"" D
2		BS7500540YP	RAD KOMPL. 8X2
3		BS703835	U-SCHEIBE, .531IDX.875OD
4		BS703964	WASHER, FLAT
5		BS703348	MUTTER,7/16-20
6		BS7102625YP	HUBCAP, 10" WHEEL SPO
7		BS17X169MA	WASHER.377-1-.03 FLT
8		BS703347	MUTTER, 3/8-16
9		BS7101350YP	HUBCAP, 8&9 SPOKED
