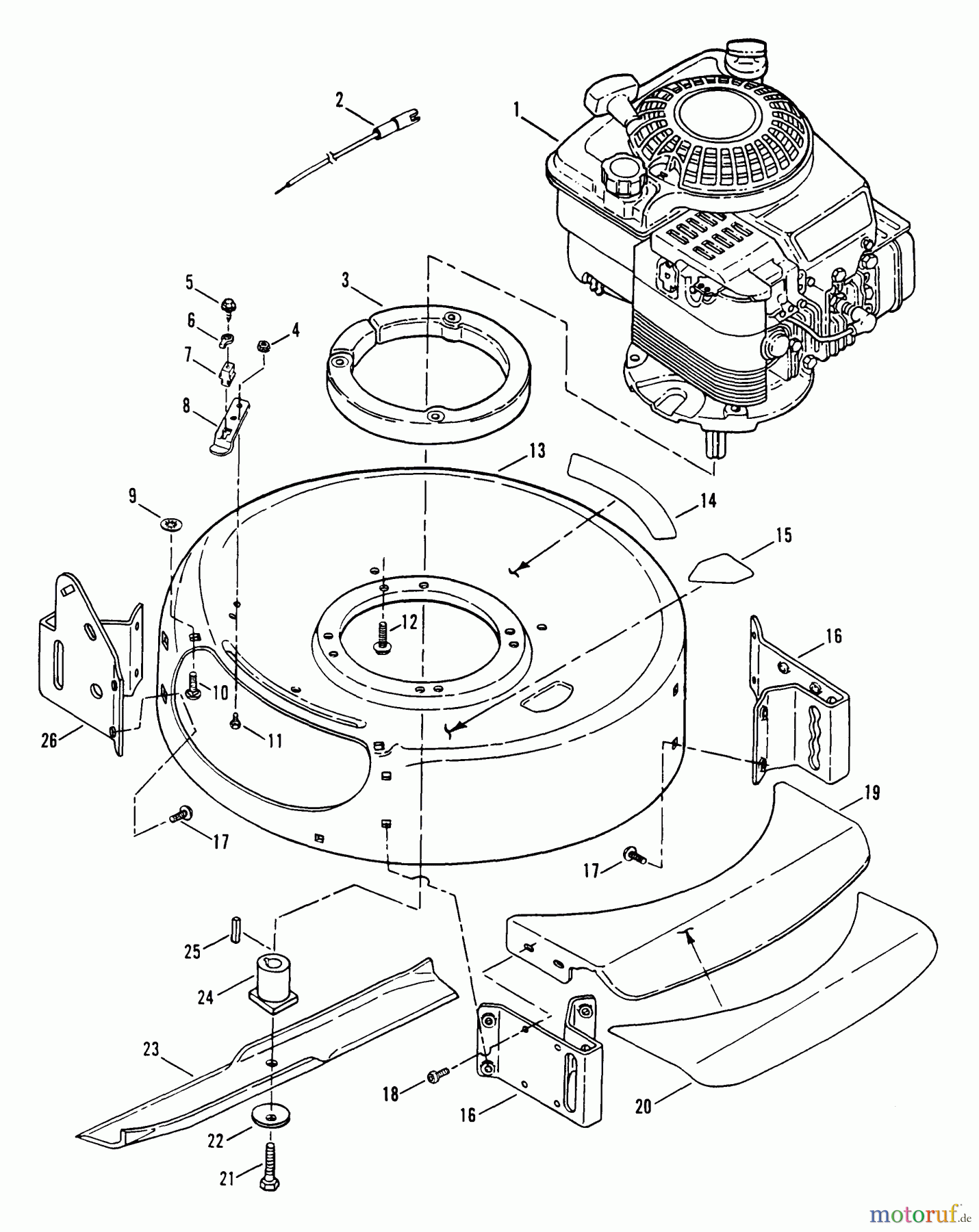

Snapper NR20500 - 20" Walk-Behind Mower, 5 HP, Series 0 Engine, Cutting Deck, Blade, Interlock (Push Models) Ricambi

Engine, Cutting Deck, Blade, Interlock (Push Models) NR20500 - Snapper 20" Walk-Behind Mower, 5 HP, Series 0

Snapper Rasenmäher NR20500 - Snapper 20
PosizioneArticolo numeroDescrizione
1 BSEingangswelle UE 600
2 BS7026879YPWIRE, GROUND, B&S
3 BS7028430
4 BS703233MUTTER, 1/4-20, GR5
5 BS7090379YPSMS, #8-18 X3/4 BZ
6 BS7090385YPITLW, #8 TAB
7 BS7012048YPINSULATOR
8 BS7034404YPSPRING, INTERLOCK, BL
8 BS7033408YPSPRING, INTERLOCK, BL
9 BS703297RETAINER, GR5, 5/16
10 BS703185RHSSNB
11 BS7090071SM
12 BS7091088YPHWST, 3/8C X2
13 BS7053822YP20" DECK/APPLIQUE ASS
14 BS7024379YPDECAL, WARNING, CPSC
15 BS7013010SMDECAL-DANGER, CUT FIN
16 BS7034362YPBRKT, FRNT
17 BS703932SCREW, 5/16-18X.5
18 BS704060SCREW,HEX, #10-24X.5
19 BS7034363YPPLATE, FRONT, 19
20 BS7029659
21 BS703999CAPSCREW, 3/8-24X2
22 BS703963WASHER, CONE
23 BS7017167
24 BS7026189YPHUB, BLADE, 7/8" ID *
25 BS7010783YPKEIL, HI-PRO, #505
26 BS7034418YPBRKT, REAR, RH
26 BS7034419YPBRKT, REAR, LH
