Snapper EXP21551VE - 21" Walk-Behind Mower, 5.5 HP Jet-Vac, Rear Discharge (Export) Handles & Controls Ricambi

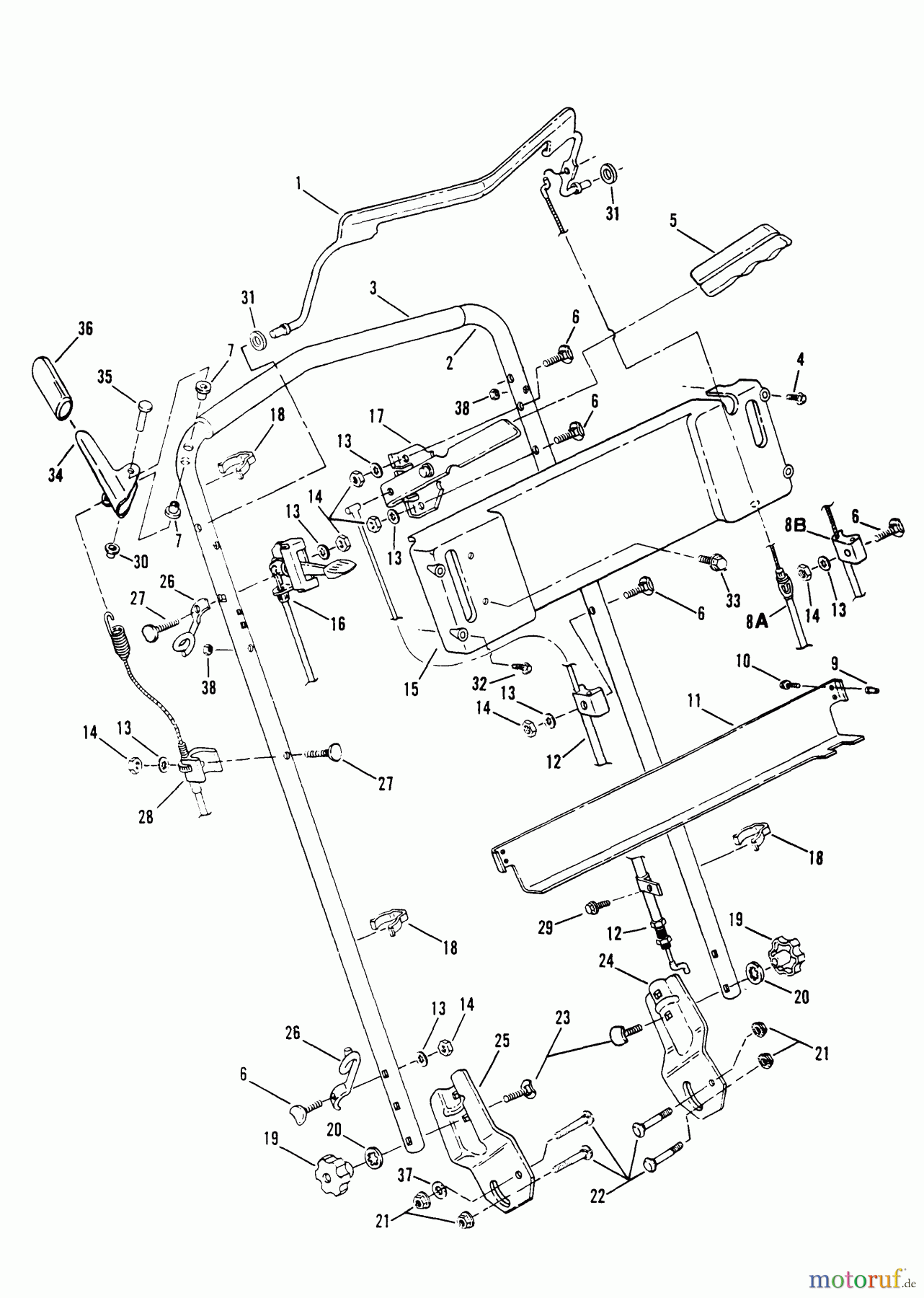

Handles & Controls EXP21551VE - Snapper 21" Walk-Behind Mower, 5.5 HP Jet-Vac, Rear Discharge (Export)

Snapper Rasenmäher EXP21551VE - Snapper 21
PosizioneArticolo numeroDescrizione
1 BS7026539YPBAIL, ZONE CONTROL, C
2 BS7033717
3 BS7026216SM
4 BS7091266
5 BS7105356YPGRIP, DECK LIFT
6 BS7016242
7 BS7014343YPLAGERBUCHSE
8A BS7026200YPCABLE, ZONE CONTROL
8B BS7027938YPCONTROL, ZONE, 42.2/7
9 BS7091182SM
10 BS7091195SMPHST, COMBO, #10-16 X
11 BS7033928YPBRACE, CONTROL PANEL
12 BS7026201YPCABLE, SPEED SELECT
13 BS703462U.-SCHEIBE, 1/4
14 BS703127MUTTER
15 BS7061340YPCONTROL PANEL KIT
16 BS7025039YPTHROTTLE CONTROL
16 BS7027409YPTHROTTLE CABLE
17 BS7053661
18 BS7023813SMCLIP, WIRING HARNESS
19 BS703065WINGKNOB, 5/16-18
20 BS703587WASHER, 5/16
21 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
22 BS1960223SMBOLZENACHSE HD SH SQ NK5
23 BS1960723SMBOLT - RD HD
24 BS7033647YPBRKT, HANDLE, LH
25 BS7033646YPBRKT, HANDLE, RH
26 BS7022779YPBRKT, PULL ROPE
27 BS7090965YPCHB, 1/4C GR2 ZP
28 BS7029926YPCABLE, CLUTCH
29 BS7091084YPHWST, 1/4C X3/8 BZ
30 BS704005PUSHNUT, CAP, 1/4
31 BS703350U-SCHEIBE, 5/16
32 BS7091265YPHWHMS, #10C X1-1/2 GR
33 BS704060SCREW,HEX, #10-24X.5
34 BS7033910
35 BS7023792YPPIN
36 BS7014307YPGRIFF
37 BS7091130SMFW, .327X.875X.09 BZ
38 BS7091267SMHCLN, #10F BZ
BS7061340
