Snapper RT1330 (1694615) - 30" Rear-Engine Rider, 13 HP, Hydro Drive, RMO, Series 0 Engine & Electric Clutch Group - 13HP Briggs & Stratton Models Ricambi

Engine & Electric Clutch Group - 13HP Briggs & Stratton Models RT1330 (1694615) - Snapper 30" Rear-Engine Rider, 13 HP, Hydro Drive, RMO, Series 0

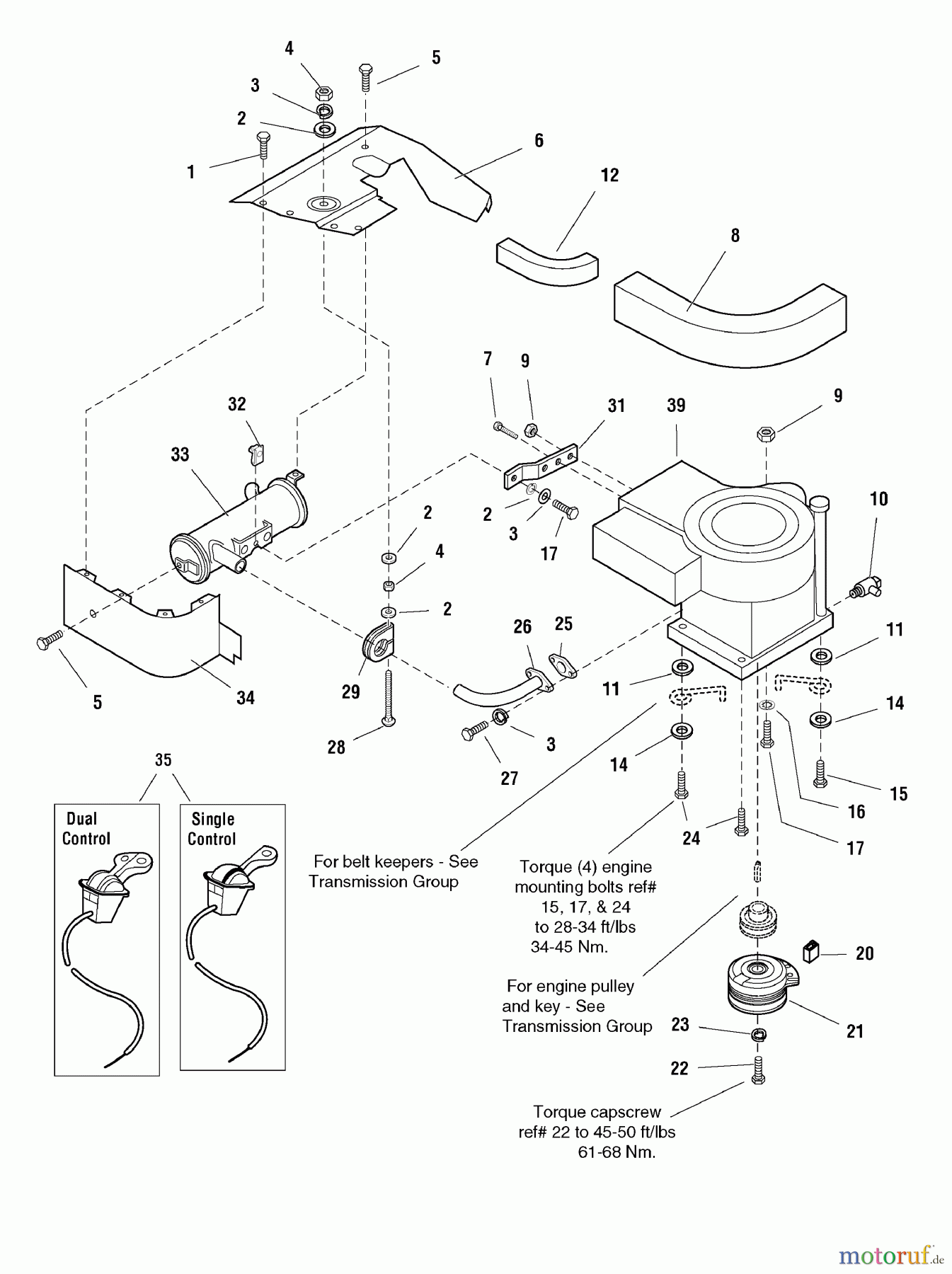

Snapper Reitermäher RT1330 (1694615) - Snapper 30
PosizioneArticolo numeroDescrizione
1 BS1960720SMSCHRAUBE
2 BS1921319SMABZIEHER-SCHEIBE
3 BS703116LCKWSHR
4 BS7091511SMMUTTER, 5/16C GR5 YZ
5 BS1924856SMSCREW - HEX WASHER HD
6 BS1724428ASM
7 BS1960568SMSCREW, HEX WSHR HD TA
8 BS1709055SM
9 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
10 BS1708405SMVALVE-SHUT OFF .375-1
11 BS1933263SMSCHEIBE - 0.438(0.451IDX1
12 BS1718648SM
14 BS1922755SMABZIEHER-SCHEIBE
15 BS2860361SMSECHSK:SCHRAUBE SCHEIBE
16 BS703297RETAINER, GR5, 5/16
17 BS1933689SMSECHSKANTMUTTER
20 BS1708537SMSLEEVE ANCHOR-ELEC CL
21 BS1686882SMELECTRIC CLUTCH KIT-C
22 BS1960370SMSECHSKANTSCHRAUBE 7/16-
23 BS704007LCKWSHR,7/16,SPLIT RE
24 BS704010SCREW, HEX, 3/8-16
25 BS1650670SMGASKET-EXHAUST 0.064T
26 BS1724466SM
27 BS1936228SMSECHSKANTSCHR. SKT HD
28 BS1960748SMSCHLOSSSCHRAUBE 5/16
29 BS1676183SMCLAMP-EXHAUST 1.312 D
31 BS1724428A
32 BS1935255SMNUT, SPEED, 5/16-18 L
33 BS1708416SMSCHALLDAMPFER-CORONET
34 BS1724427ASM
35 BS1734506SMDUAL CONTROL ASSY
35 BS1722955SMCONTROL-THROTTLE .187
39 BS21A907-0131-E1
