Snapper 421622BVE (84707) - 42" Rear-Engine Rider, 16 HP, Series 22 Throttle Control Ricambi

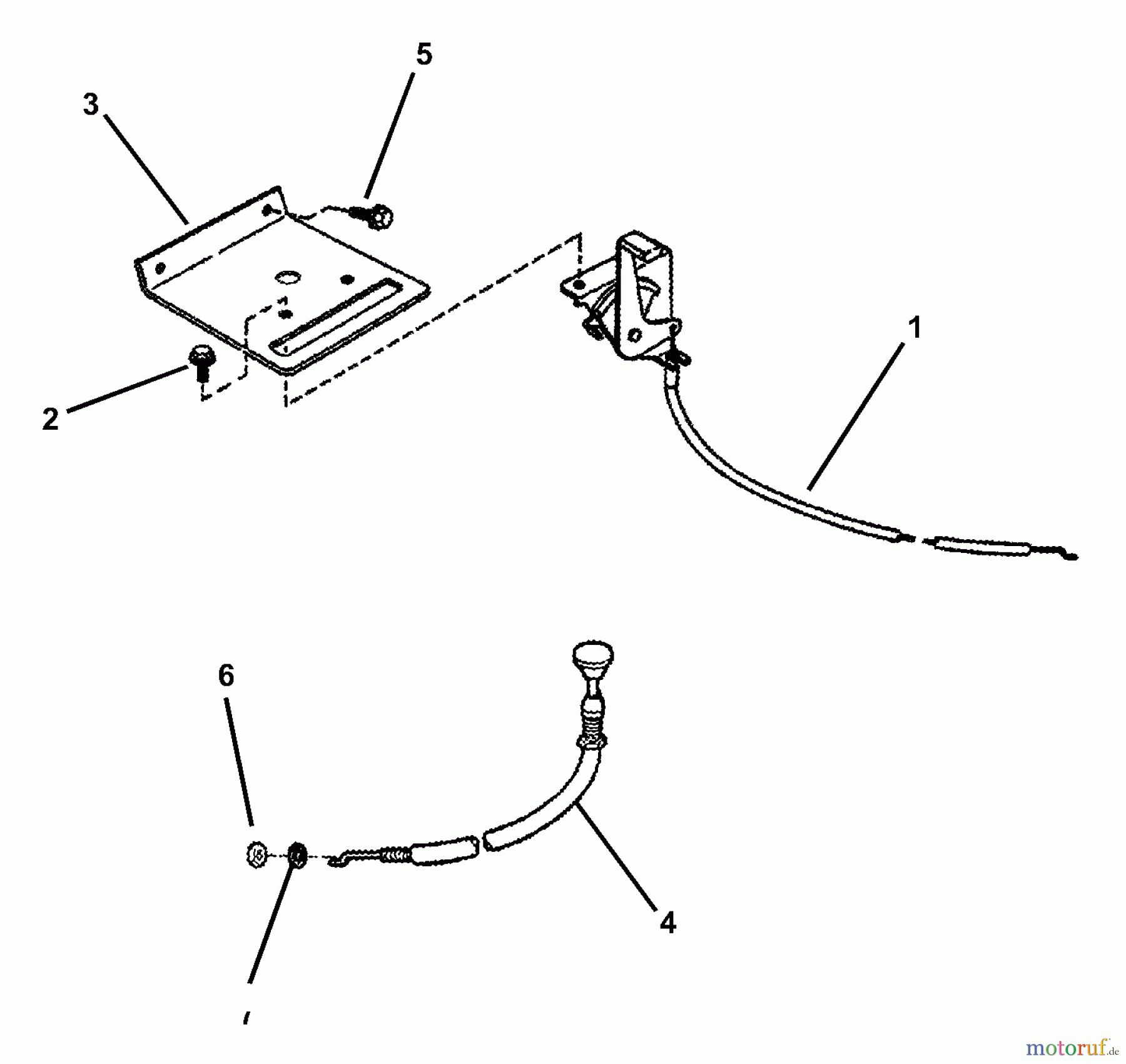

Throttle Control 421622BVE (84707) - Snapper 42" Rear-Engine Rider, 16 HP, Series 22
| Posizione | Articolo numero | Descrizione | |
| 1 | BS7074321YP | THROTTLE CABLE, 16 HP | |
| 2 | BS704060 | SCREW,HEX, #10-24X.5 | |
| 3 | BS7033470YP | PLATTE, GESCHW. KONTROLLE | |
| 4 | BS7024185YP | CONTROL, 36" CHOKE | |
| 5 | BS7091122 | ||
| 6 | BS703895 | NUT, HEX, 3/8-24 | |
| 7 | BS703930 | WASHER, INT LCK, 3/8 | |
