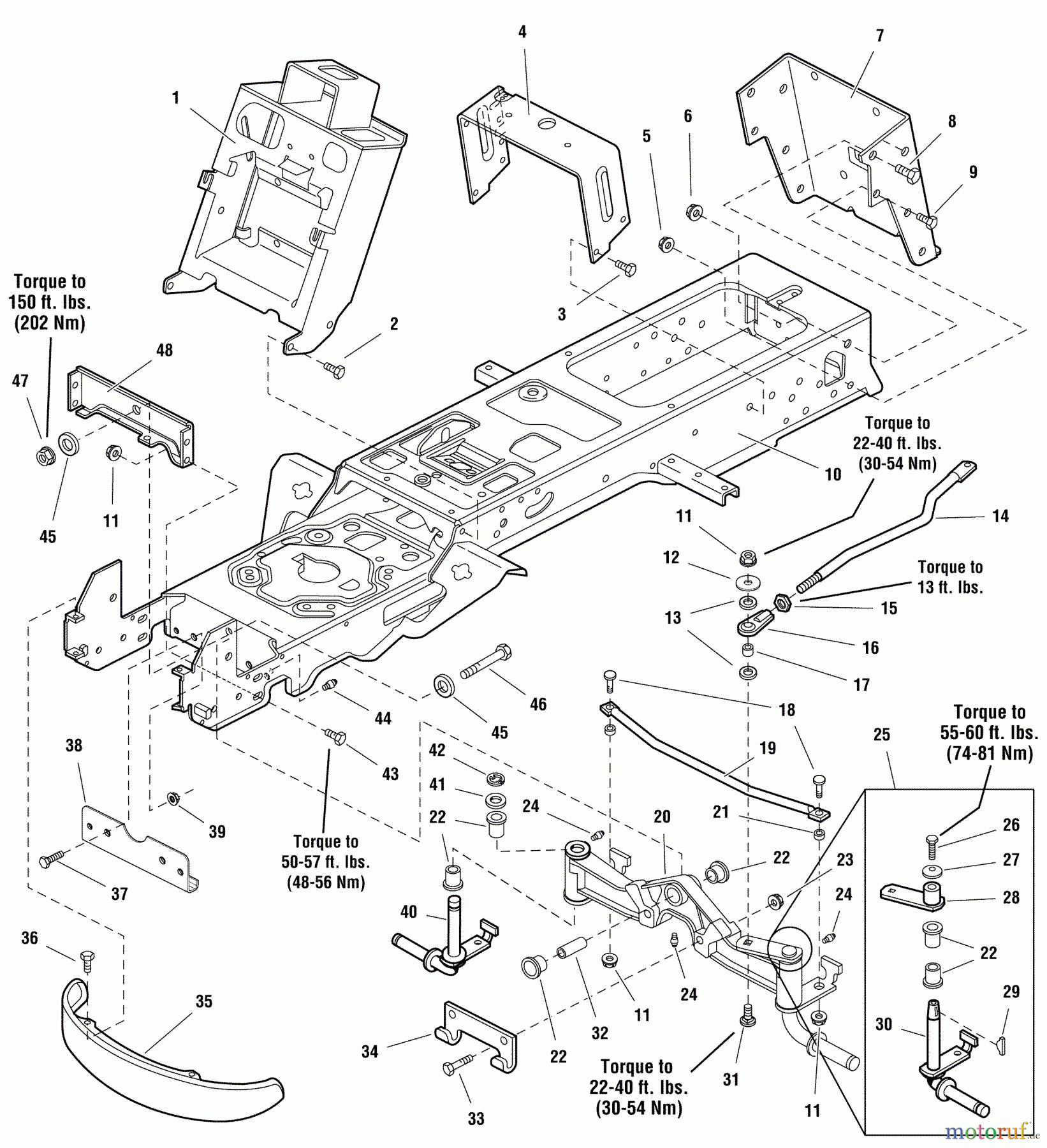

Frame & Front Axle Group YT2652 (2691147-00) - Snapper 52" Yard Tractor, 26 HP, Hydro Drive, RMO, LT9500 Series

Snapper Rasen- und Gartentraktoren YT2652 (2691147-00) - Snapper 52

Posizione	Articolo numero	Descrizione
1	BS1733139ASM	AUFBAU & AUFNAHME KOMPL.
2	BS1923683SM	SCHRAUBE
3	BS703228	SCHRAUBE, 5/16-18 X .75
4	BS1752878AYP	SUPPORT, SEAT DECK
5	BS1928352SM	NUT - HEX FLANGE
6	BS1930644SM	BUNDMUTTER 1/2-1
7	BS1722602ASM	BACKPLATE-HITCH-BLACK
8	BS1923114SM	SECHSKANTSCHR. HD 1/2-1
9	BS7091304SM	SECHSK.SCHRAUBE, 3/8C X1 GR5 Y
10	BS1733765ASM	FRAME ASMY-FRONT & RE
11	BS703893	NUT, CNTR LCK, 3/8-16
12	BS704128	WASHER
13	BS1960103SM	U-SCHEIBE-0.375(0.39IDX0
14	BS1722541SM	LINK-DRAG .625DI
15	BS703903	NUT, HEX, 1/2-20
16	BS1702779SM	SPURSTANGENKOPF 500-20 TH
17	BS1708236SM	SPACER-0.377ID 0.500O
18	BS703815	BOLT, RD SQ 3/8-16X1
19	BS1722626ASM	ROD-TIE .625DIA-BLACK
20	BS1722200ASM	AXLE,SPINDLES-BLACK
21	BS1611705SM	DISTANSRING-0.385IDX0
22	BS1721682SM	ACHSBUCHSEN VIP
23	BS1930650SM	BUNDMUTTER 7/16-1
24	BS703907	ZERK, FITTING, 1/4
25	BS1686985SM	SPINDLE REPLACEMENT K
26	BS2823485SM	CAPSCREW-HEX HD 3/8-1
27	BS1663151SM	WASHER, SPRING 0.285I
28	BS1725112ASM	HUB & ARM
29	BS2830671SM	KEY-HI PRO .250X0.750
30	BS1724264SM	SPINDLE,LH
31	BS1931352SM	BOLZEN 3 / 8
32	BS1721752SM	DISTANZBUCHSE 0.641 ID 0.9780
33	BS1927531SM	KOPFSCHRAUBE SECHSK. HD 7/16-
34	BS1721918ASM	HAKEN-J SCHWARZ
35	BS1721805ASM	STO?LEISTE 14GA-SCHWARZ
36	BS1960086SM	SCREW, TRUSS HD TORX
37	BS1930591SM	SCREW-HEX WZ LOCK FLN
38	BS1724801ASM	PLATE-AXLE .135THK "U
39	BS703409	MUTTER, 5/16-18, GR5
40	BS1722199AYP	SPINDLE ASMY-RH BM,CO
41	BS703149	U-SCHEIBE
42	BS2832577SM	SICHERUNGSRING, #98 0.9
43	BS1933260SM	SECHSKANTSCHR. FLANSCH
44	BS2821133SM	LUBE FITTING, .250 DR
45	BS1960035SM	SCHEIBE 0.625(0641DX1
46	BS2860645SM	HUTMUTTER SECHK. HD 5/8-
47	BS2860646SM	BUNDMUTTER HD 5/8-11
48	BS1722212ASM	PLATE-AXLE SUPPORT-BL
